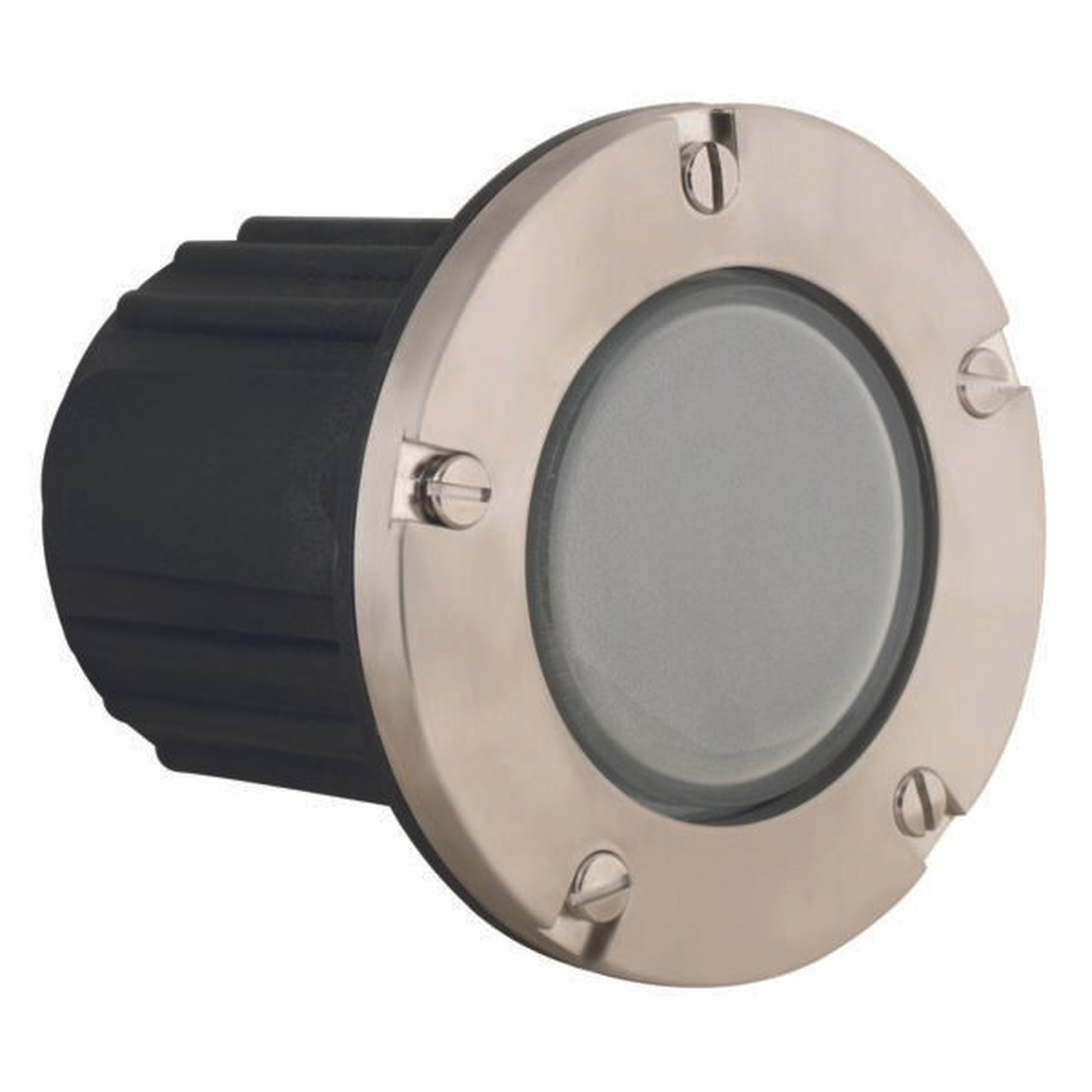

316 Marine-Grade Stainless Steel Glass Lens Round Step Light, In-Ground, 5 Inch, 60° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This 316 Marine-Grade Stainless Steel lensed round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 60° Wide Beam Angle.
Features
-
- 316 marine-grade stainless steel faceplate with silicone O-ring gasket for a weather-tight seal
- Injection-molded composite housing with high UV stability for long outdoor life
- Frosted heat-resistant flat glass lens for even light distribution
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 60° wide flood beam, 50,000 hours, 25W halogen equivalent, dimmable
- Top-grade adjustable ceramic bi-pin socket tilts ±25° with retention clip and Teflon-jacketed wire leads
- LED operating range 9–17V; requires remote 12V transformer
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; wire connector sold separately
- Designed for in-ground direct burial or concrete encasement; concrete pour kit CX-237 recommended
- ETL listed; limited lifetime warranty on faceplate and 10-year housing warranty
This 316 Marine-Grade Stainless Steel lensed round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 60° Wide Beam Angle.
Features
-
- 316 marine-grade stainless steel faceplate with silicone O-ring gasket for a weather-tight seal
- Injection-molded composite housing with high UV stability for long outdoor life
- Frosted heat-resistant flat glass lens for even light distribution
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 60° wide flood beam, 50,000 hours, 25W halogen equivalent, dimmable
- Top-grade adjustable ceramic bi-pin socket tilts ±25° with retention clip and Teflon-jacketed wire leads
- LED operating range 9–17V; requires remote 12V transformer
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; wire connector sold separately
- Designed for in-ground direct burial or concrete encasement; concrete pour kit CX-237 recommended
- ETL listed; limited lifetime warranty on faceplate and 10-year housing warranty
Overview
This 316 Marine-Grade Stainless Steel lensed round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 60° Wide Beam Angle.
Features
-
- 316 marine-grade stainless steel faceplate with silicone O-ring gasket for a weather-tight seal
- Injection-molded composite housing with high UV stability for long outdoor life
- Frosted heat-resistant flat glass lens for even light distribution
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 60° wide flood beam, 50,000 hours, 25W halogen equivalent, dimmable
- Top-grade adjustable ceramic bi-pin socket tilts ±25° with retention clip and Teflon-jacketed wire leads
- LED operating range 9–17V; requires remote 12V transformer
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; wire connector sold separately
- Designed for in-ground direct burial or concrete encasement; concrete pour kit CX-237 recommended
- ETL listed; limited lifetime warranty on faceplate and 10-year housing warranty
Specifications
| 316 Marine-Grade Stainless Steel Glass Lens Round Step Light, In-Ground, 5 Inch, 60° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 60° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" x 4-5/8" faceplate, 3-1/2" D, 3/8" lip |
| Finish | Stainless Steel |
| Material | 316 marine grade stainless steel faceplate and injection molded composite housing |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on stainless steel fixture housing, Five (5) years limited warranty on LED module |
