- Lumens: 200 - 210LM
- Voltage: Low Voltage
- Wattage: 2W
- Dimming: Dimmable
- Warranty: Limited warranty on cast brass fixture housing per manufacturer terms; Five (5) years limited warranty on LED module

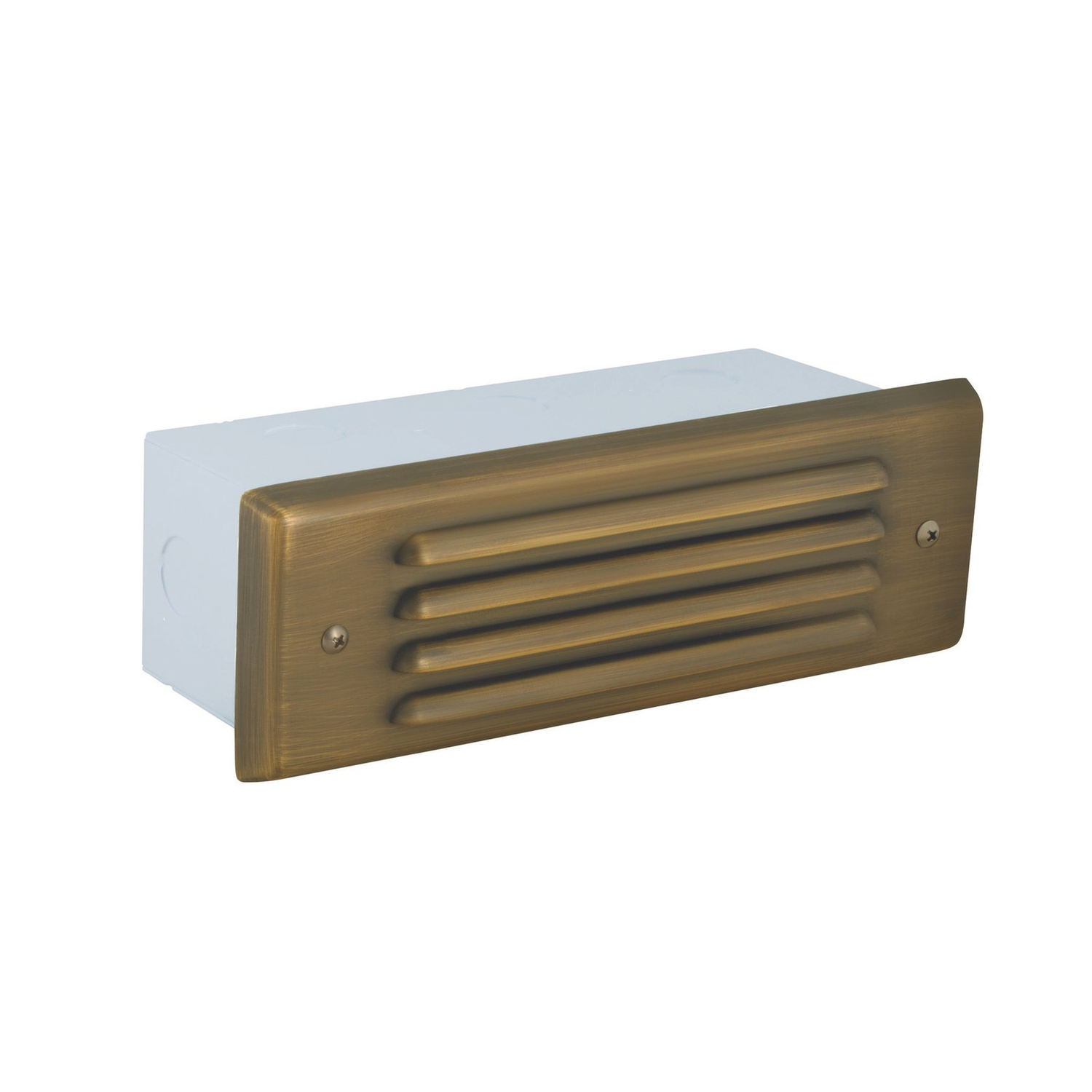

This Antique Bronze brass 4-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Architectural 4-louver boxed step/brick light in Antique Bronze finish
- Die-cast brass faceplate with 0.40" thick dense solid silicone gasket and frosted heat-resistant glass lens
- Heavy-duty corrosion-resistant galvanized steel back box with white powder coat and self-leveling adjustable bars
- Includes bayonet LED lamp: 2W, 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, 25,000-hour rated life; output applies to each included lamp, and total fixture output is not stated
- Two Bayonet (SCB) sockets on aluminum reflector
- Remote 12V transformer required for operation
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord
- Faceplate dimensions: 9" W x 3-1/8" H
- Surface mount supplied
- Warranty: Limited lifetime warranty on faceplate
