4-Louver Step Light, Recessed, 5 Inch, Silver Plated, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

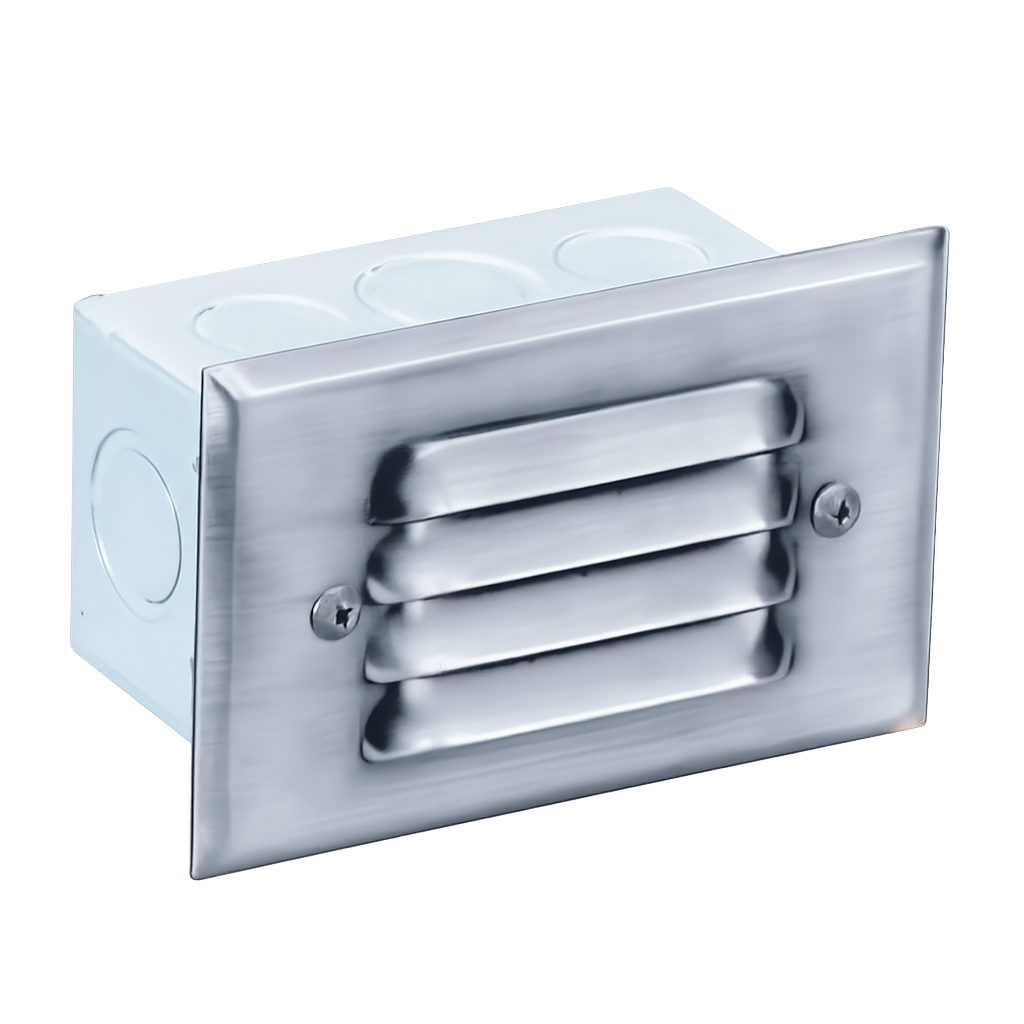

This Silver Plated 4-louver step light is a low-voltage fixture designed for recessed installation, with a 5 Inch customer-facing plate. The included 2.5W BA15S LED lamp delivers 240 lumens at 2700K; 250 lumens at 3000K.
Features
-
- 4-louver boxed step light; Silver Plated finish; designed for step, brick, and masonry applications
- Stamped steel faceplate: 5" W x 3" H; tempered heat-resistant glass sealed to faceplate with silicone gasket for watertight protection
- White powder-coated steel recessed mount box for concrete, brick, or masonry installations
- Primary material: Aluminum
- Socket: fixed 12V SCB (single-contact bayonet)
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, warm-white output, CRI 80; rated life 25,000 hours; approx 35W halogen equivalent
- LED operating voltage: 9–17V; remote 12V transformer required
- Prewired with 12" direct-burial cord; connectors available separately; dimmable
- Warranty: 1 year on fixture housing; 5-year manufacturer warranty on lamps
This Silver Plated 4-louver step light is a low-voltage fixture designed for recessed installation, with a 5 Inch customer-facing plate. The included 2.5W BA15S LED lamp delivers 240 lumens at 2700K; 250 lumens at 3000K.
Features
-
- 4-louver boxed step light; Silver Plated finish; designed for step, brick, and masonry applications
- Stamped steel faceplate: 5" W x 3" H; tempered heat-resistant glass sealed to faceplate with silicone gasket for watertight protection
- White powder-coated steel recessed mount box for concrete, brick, or masonry installations
- Primary material: Aluminum
- Socket: fixed 12V SCB (single-contact bayonet)
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, warm-white output, CRI 80; rated life 25,000 hours; approx 35W halogen equivalent
- LED operating voltage: 9–17V; remote 12V transformer required
- Prewired with 12" direct-burial cord; connectors available separately; dimmable
- Warranty: 1 year on fixture housing; 5-year manufacturer warranty on lamps
Overview
This Silver Plated 4-louver step light is a low-voltage fixture designed for recessed installation, with a 5 Inch customer-facing plate. The included 2.5W BA15S LED lamp delivers 240 lumens at 2700K; 250 lumens at 3000K.
Features
-
- 4-louver boxed step light; Silver Plated finish; designed for step, brick, and masonry applications
- Stamped steel faceplate: 5" W x 3" H; tempered heat-resistant glass sealed to faceplate with silicone gasket for watertight protection
- White powder-coated steel recessed mount box for concrete, brick, or masonry installations
- Primary material: Aluminum
- Socket: fixed 12V SCB (single-contact bayonet)
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, warm-white output, CRI 80; rated life 25,000 hours; approx 35W halogen equivalent
- LED operating voltage: 9–17V; remote 12V transformer required
- Prewired with 12" direct-burial cord; connectors available separately; dimmable
- Warranty: 1 year on fixture housing; 5-year manufacturer warranty on lamps
Specifications
| 4-Louver Step Light, Recessed, 5 Inch, Silver Plated, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 5" W x 3" H |
| Finish | Silver Plated |
| Material | Aluminum body with stamped steel faceplate |
| Lifetime | 25,000 Hours |
| Warranty | Limited warranty on aluminum fixture housing per manufacturer terms; Five (5) years limited warranty on LED module |
