- Voltage: 120V AC
- Wattage: 60W
- Dimming: Dimmable
- Warranty: Three (3) year Limited Warranty for protection against manufacturer defects.

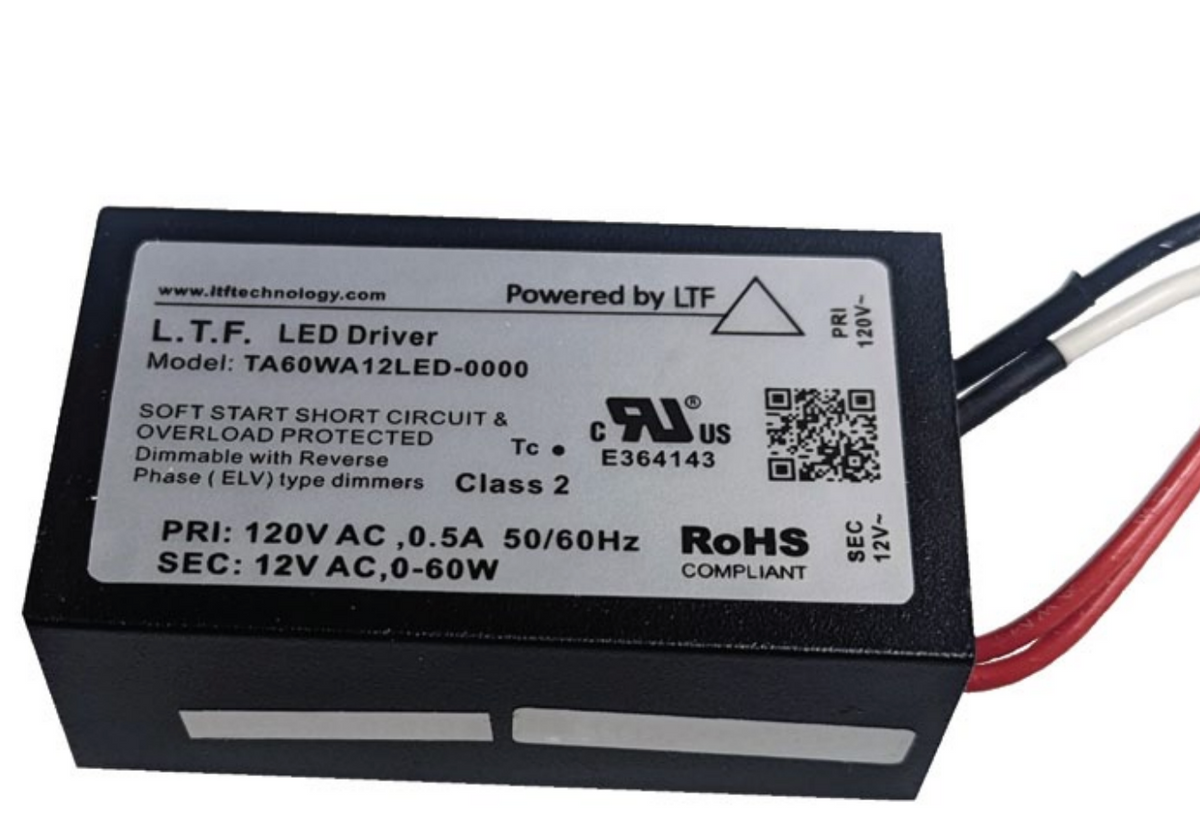

This transformer is a 60W, 12V AC compact low-voltage transformer designed for landscape lighting systems in damp locations. Built with a low-profile PVC enclosure measuring just 2¼" W x 1¼" H x ¾" D, it fits easily inside most fixture enclosures. It features no-load technology compatible with both Halogen and LED AC loads, and is described by the manufacturer as a Class 2 transformer ETL listed to UL 2108. The transformer supports ELV dimming and includes auto-reset short-circuit, overload, and thermal protections with soft start, backed by a 3-year limited manufacturer's warranty.
Features
-
- 60W, 12V AC compact low-voltage transformer designed for landscape lighting systems
- No-load technology compatible with both Halogen and LED AC loads
- Class 2 transformer; manufacturer states ETL listed to UL 2108
- Isolated output power per NEC and UL safety requirements
- ELV dimmable for flexible lighting control
- Auto-reset protection against short circuit, overload, and thermal faults with soft start

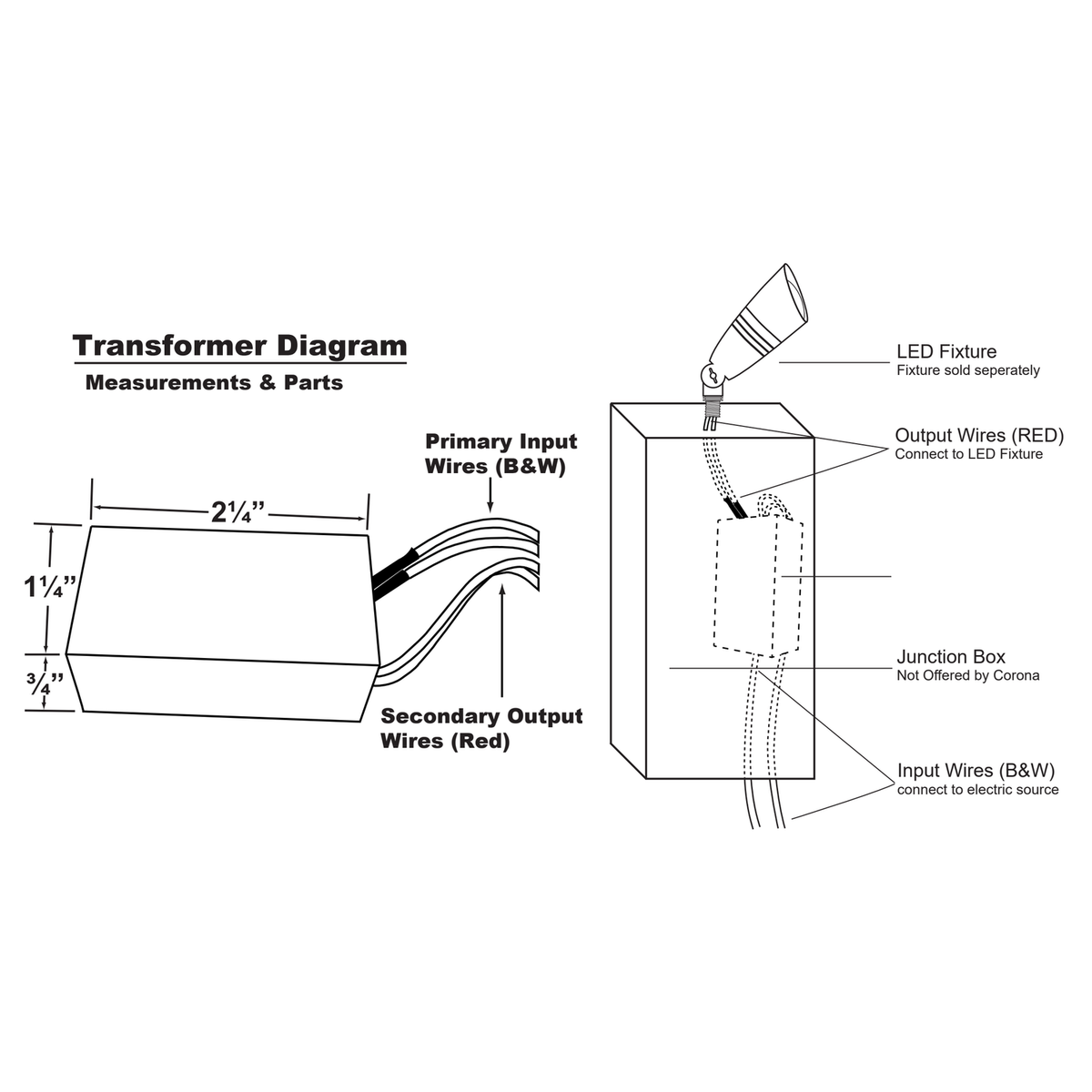

- Low-profile compact design (2¼" W x 1¼" H x ¾" D) fits in most enclosures
- Primary input: 120V AC, 0.5A, 50/60Hz
- secondary output: 12V AC, 0-60W
- Three (3) year limited manufacturer's warranty against defects
- Compatibility: Compatible with landscape lighting fixtures using 12V AC low-voltage systems
