Overview

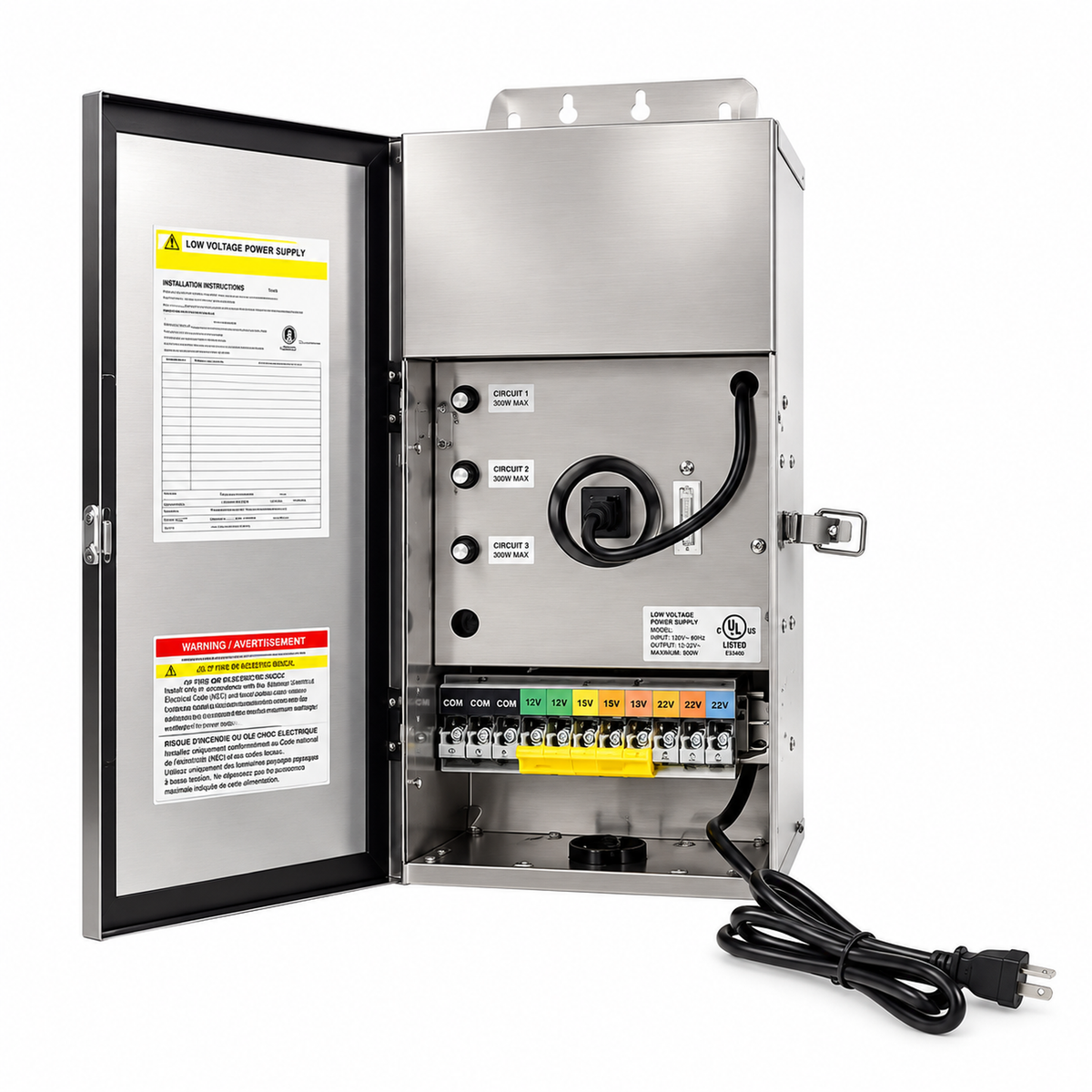

This is a 900W multi-tap triple circuit low voltage landscape transformer housed in a top-grade 304 stainless steel NEMA 3R enclosure. It delivers selectable secondary taps of 12V, 13V, 14V, 15V, 16V, 17V, 18V and 22V across three independent 300W circuits, making it ideal for large-scale outdoor and landscape lighting installations. The transformer is ETL listed to UL1838 and is Pool and Spa ready, suitable for use with submersible fixtures. A fully encapsulated TOROID core, thermal shut-off, and high-performance magnetic circuit breaker ensure reliable protection, while timer and photocell options provide flexible scheduling control. Timer and photocell inclusion depends on the selected Photocell, Digital Timer, and Mechanical Timer options. It carries a limited manufacturer's warranty.



 Features

    • 900W capacity with triple circuit design, supporting up to 3x300W independent low voltage circuits
    • Multi-tap secondary voltage output: 12, 13, 14, 15, 16, 17, 18, and 22 volts for flexible system design
    • Top-grade 304 stainless steel NEMA 3R enclosure with moisture-resistant gasket around hinged cover door
    • ETL listed to UL1838 U.S. safety standards for landscape lighting transformers, Pool and Spa ready
    • Compatible with low-voltage (12V) magnetic dimmer switches and controls; ACCDIM-100 use requires a suitable 12–15V AC tap and a compatible 4–12V DC voltage-dimmable load, within the dimmer's 100W rating and maximum 10A input current. Dimming range depends on the connected source and load.
    • 6-foot heavy gauge, grounded and water-resistant power cord with molded plug
    • Fully encapsulated TOROID core with high-performance magnetic circuit breaker (doubles as on/off rocker switch) and thermal shut-off protection
    • Removable bottom plate with pre-punched knockouts for 4x½" or 4x¾" conduits and 1x1¾" cable feeder
    • Control options: Dusk to dawn photocell, 24-hour mechanical plug-in timer, digital plug-in timer; inclusion follows the selected options

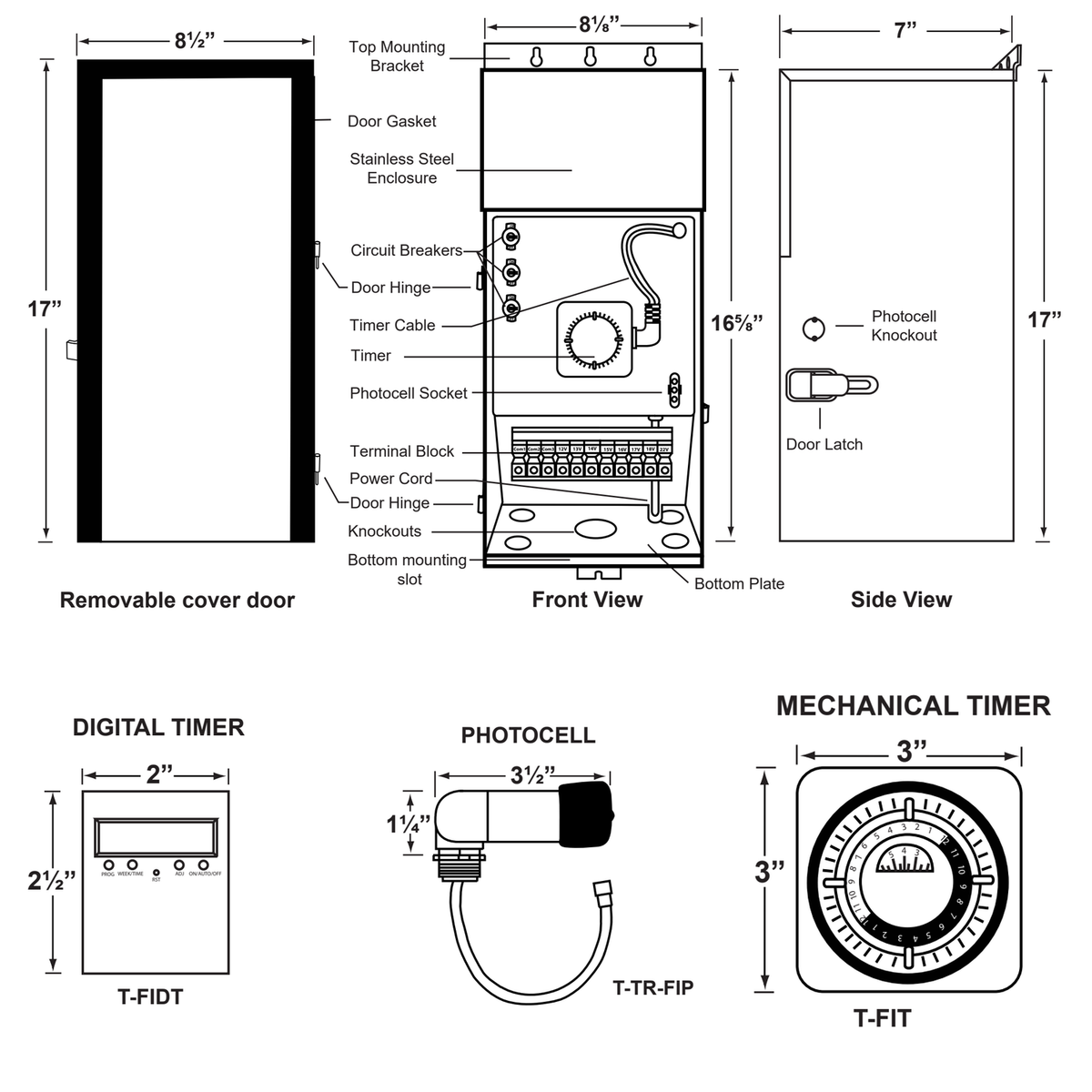

    • Enclosure front: 8⅛" W x 16⅝" H; general product dimensions: 8½" W x 17" H x 7" D; suitable for LED and landscape lighting systems
    • Warranty: Limited manufacturer's warranty

Specifications

Brand NSL
Wattage 900W
Voltage 120V
Output Voltage 12V, 13V, 14V, 15V, 16V, 17V, 18V, 22V VDC
Dimmable Dimmable
Dimming Details Compatible with low-voltage (12V) magnetic dimmer switches and controls; ACCDIM-100 Inline Dimmer available
Selectable Details Secondary voltage selectable: 12V, 13V, 14V, 15V, 16V, 17V, 18V, or 22V via terminal block taps
IP Rating NEMA 3R
Trim Color Stainless Steel
Components Stainless steel enclosure, TOROID core, terminal block, magnetic circuit breaker, 6-ft power cord, mounting brackets, door gasket, photocell socket, timer cable
Power Type Wall Plug-in
Mount Type Wall
Dimensions 8⅛" W x 16⅝" H x 7" D
Finish Stainless Steel
Housing Top-grade 304 stainless steel, NEMA 3R enclosure with moisture-resistant gasket and hinged cover door
Material 304 Stainless Steel
Compliance For outdoor use only; must be connected to GFCI protected circuit; not for use inside dwelling units
Class Class 1
Certifications ETL listed to UL1838
Warranty Limited manufacturer's warranty
