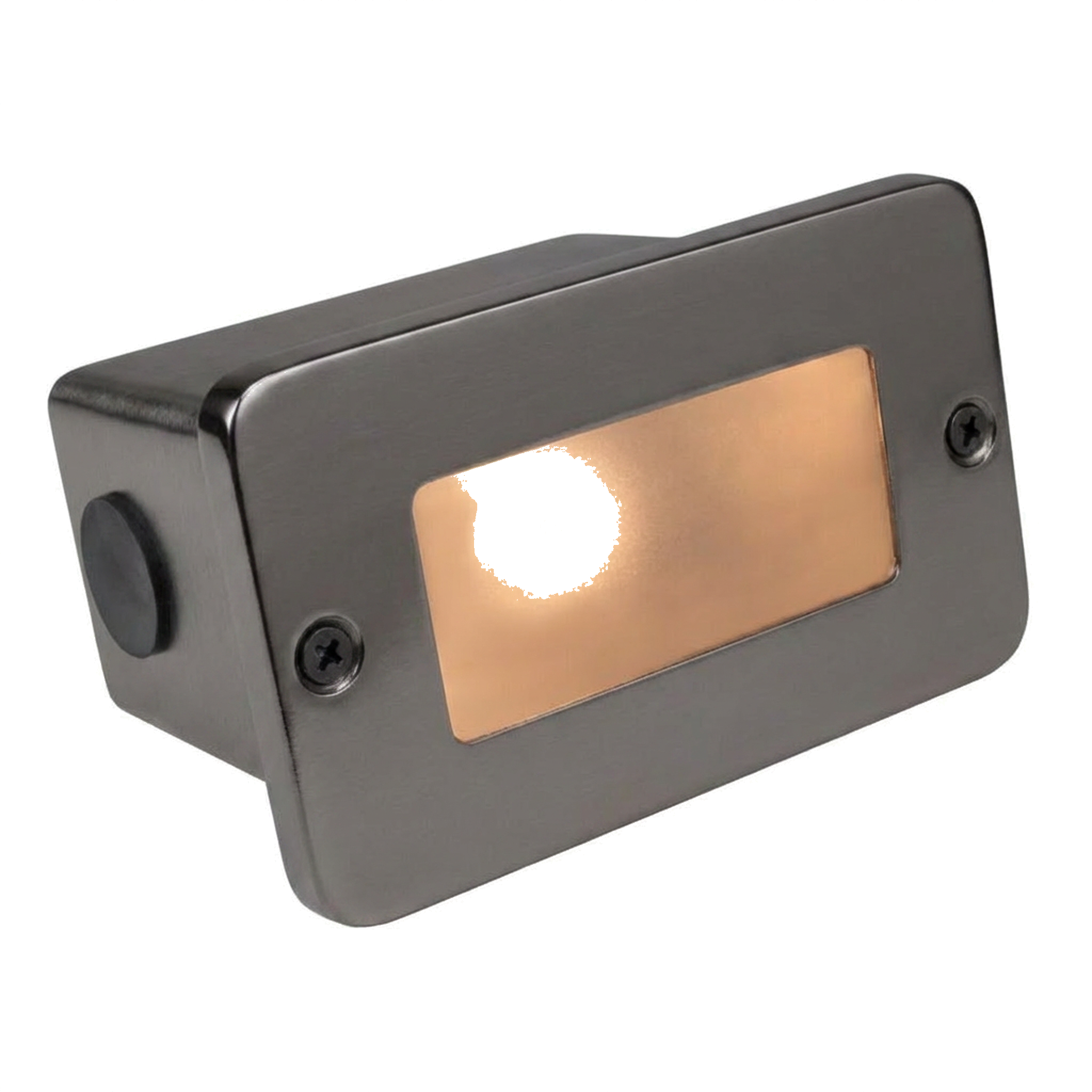

Brass Glass Lens Step Light, Recessed, 5-1/8 Inch, Gun Metal, 210 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Gun Metal brass lensed step light is a low-voltage fixture designed for recessed installation, with a 5-1/8 Inch customer-facing plate. The included 2W BA15S LED lamp delivers 200 lumens at 2700K; 210 lumens at 3000K.
Features
-
- Lensed solid brass boxed step light in Gun Metal finish for architectural installations
- Heavy-duty corrosion-resistant cast brass housing with die-cast brass faceplate and silicone gasket for weather-tight protection
- Faceplate: 5-1/8" W x 3-1/8" H; faceplate thickness approx 3/8"
- Back box/cutout approx 4" x 3-1/8"; depth approx 2-1/8"
- Recessed-mount back box with three 1/2" NPT inlets
- Surface-mount option supplied
- Ideal for concrete, brick, and masonry
- Includes bayonet LED lamp (SCB base type): 2W, 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, 25,000-hour life; approximately 20W halogen equivalent
- Requires remote 12V transformer
- Prewired with direct-burial cord
This Gun Metal brass lensed step light is a low-voltage fixture designed for recessed installation, with a 5-1/8 Inch customer-facing plate. The included 2W BA15S LED lamp delivers 200 lumens at 2700K; 210 lumens at 3000K.
Features
-
- Lensed solid brass boxed step light in Gun Metal finish for architectural installations
- Heavy-duty corrosion-resistant cast brass housing with die-cast brass faceplate and silicone gasket for weather-tight protection
- Faceplate: 5-1/8" W x 3-1/8" H; faceplate thickness approx 3/8"
- Back box/cutout approx 4" x 3-1/8"; depth approx 2-1/8"
- Recessed-mount back box with three 1/2" NPT inlets
- Surface-mount option supplied
- Ideal for concrete, brick, and masonry
- Includes bayonet LED lamp (SCB base type): 2W, 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, 25,000-hour life; approximately 20W halogen equivalent
- Requires remote 12V transformer
- Prewired with direct-burial cord
Overview
This Gun Metal brass lensed step light is a low-voltage fixture designed for recessed installation, with a 5-1/8 Inch customer-facing plate. The included 2W BA15S LED lamp delivers 200 lumens at 2700K; 210 lumens at 3000K.
Features
-
- Lensed solid brass boxed step light in Gun Metal finish for architectural installations
- Heavy-duty corrosion-resistant cast brass housing with die-cast brass faceplate and silicone gasket for weather-tight protection
- Faceplate: 5-1/8" W x 3-1/8" H; faceplate thickness approx 3/8"
- Back box/cutout approx 4" x 3-1/8"; depth approx 2-1/8"
- Recessed-mount back box with three 1/2" NPT inlets
- Surface-mount option supplied
- Ideal for concrete, brick, and masonry
- Includes bayonet LED lamp (SCB base type): 2W, 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, 25,000-hour life; approximately 20W halogen equivalent
- Requires remote 12V transformer
- Prewired with direct-burial cord
Specifications
| Brass Glass Lens Step Light, Recessed, 5-1/8 Inch, Gun Metal, 210 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 200 - 210LM |
| Efficacy | 100LM/W |
| Wattage | 2W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 5-1/8" W x 3-1/8" H; back box/cutout Approx. 4" x 3-1/8"; D Approx. 2-1/8"; faceplate thickness Approx. 3/8" |
| Finish | Gun Metal |
| Material | Corrosion-resistant cast brass housing and die-cast brass faceplate |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing/faceplate against manufacturer's defects; included LED lamps carry a 5-year limited warranty. |
