Brass Louvered Glass Lens Round Step Light, In-Ground, 5 Inch, Gun Metal, 60° Wide Beam Angle, 450 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

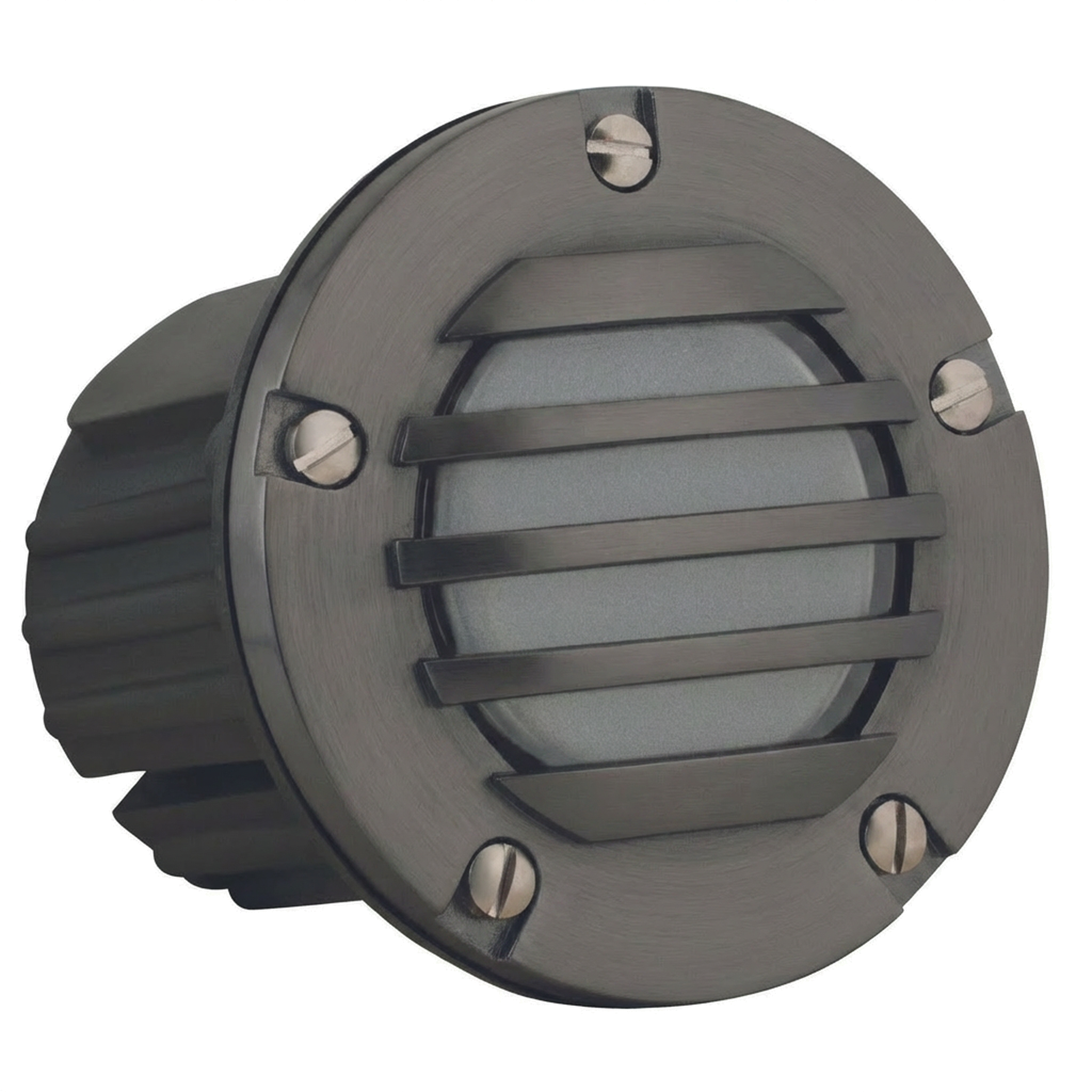

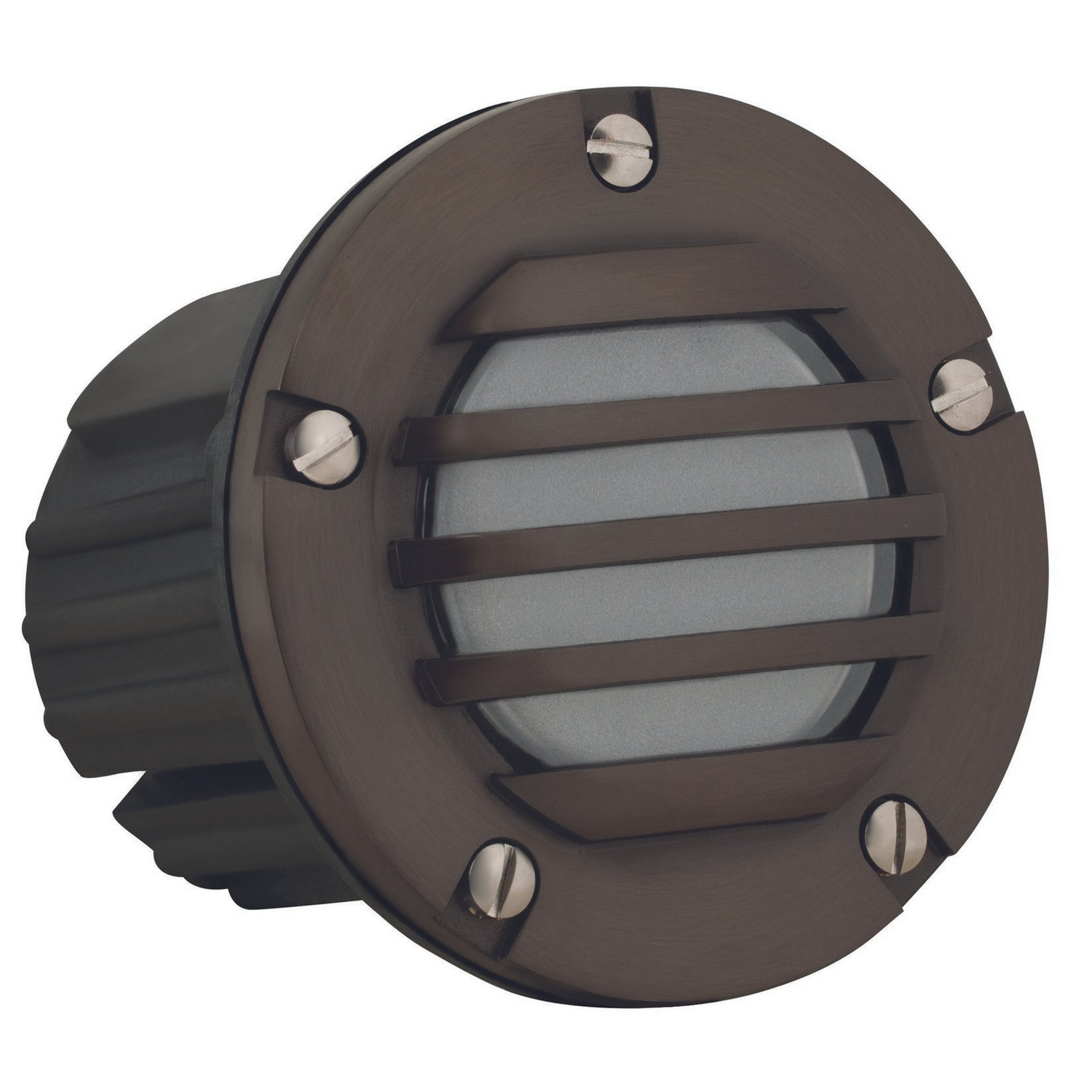

This Gun Metal brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 5W MR16 COB LED lamp delivers 450 lumens at 2700K. This exact sold configuration has a 60° Wide Beam Angle.
Features
-
- Architectural-grade louvered step light with cast brass faceplate and injection-molded composite housing for high UV stability
- Gun Metal finish with natural toning process; finish variation expected
- Frosted heat-resistant flat glass lens with silicone O-ring gasket for weather-tight protection
- Adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt
- Includes MR16 LED lamp: 5W, approximately 450 Lumens, 2700K, 60° wide beam angle, CRI 80, 50,000-hour rated life, 50W halogen equivalency
- LED operating voltage 9–17V; remote 12V transformer required
- Teflon-jacketed wire lead provided; prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8" Dia x 4-5/8" length
- Mounting: surface-mount faceplate included; optional concrete pour kit available
- ETL listed
This Gun Metal brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 5W MR16 COB LED lamp delivers 450 lumens at 2700K. This exact sold configuration has a 60° Wide Beam Angle.
Features
-
- Architectural-grade louvered step light with cast brass faceplate and injection-molded composite housing for high UV stability
- Gun Metal finish with natural toning process; finish variation expected
- Frosted heat-resistant flat glass lens with silicone O-ring gasket for weather-tight protection
- Adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt
- Includes MR16 LED lamp: 5W, approximately 450 Lumens, 2700K, 60° wide beam angle, CRI 80, 50,000-hour rated life, 50W halogen equivalency
- LED operating voltage 9–17V; remote 12V transformer required
- Teflon-jacketed wire lead provided; prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8" Dia x 4-5/8" length
- Mounting: surface-mount faceplate included; optional concrete pour kit available
- ETL listed
Overview
This Gun Metal brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 5W MR16 COB LED lamp delivers 450 lumens at 2700K. This exact sold configuration has a 60° Wide Beam Angle.
Features
-
- Architectural-grade louvered step light with cast brass faceplate and injection-molded composite housing for high UV stability
- Gun Metal finish with natural toning process; finish variation expected
- Frosted heat-resistant flat glass lens with silicone O-ring gasket for weather-tight protection
- Adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt
- Includes MR16 LED lamp: 5W, approximately 450 Lumens, 2700K, 60° wide beam angle, CRI 80, 50,000-hour rated life, 50W halogen equivalency
- LED operating voltage 9–17V; remote 12V transformer required
- Teflon-jacketed wire lead provided; prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8" Dia x 4-5/8" length
- Mounting: surface-mount faceplate included; optional concrete pour kit available
- ETL listed
Specifications
| Brass Louvered Glass Lens Round Step Light, In-Ground, 5 Inch, Gun Metal, 60° Wide Beam Angle, 450 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 450LM |
| Efficacy | 94LM/W |
| Wattage | 5W |
| Wattage Equivalency | 50W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 60° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Gun Metal |
| Material | Cast brass faceplate and injection-molded composite housing |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on brass faceplate; 50,000 hour life for LED; 10 years on housing; included LED lamps 5-year limited. |
