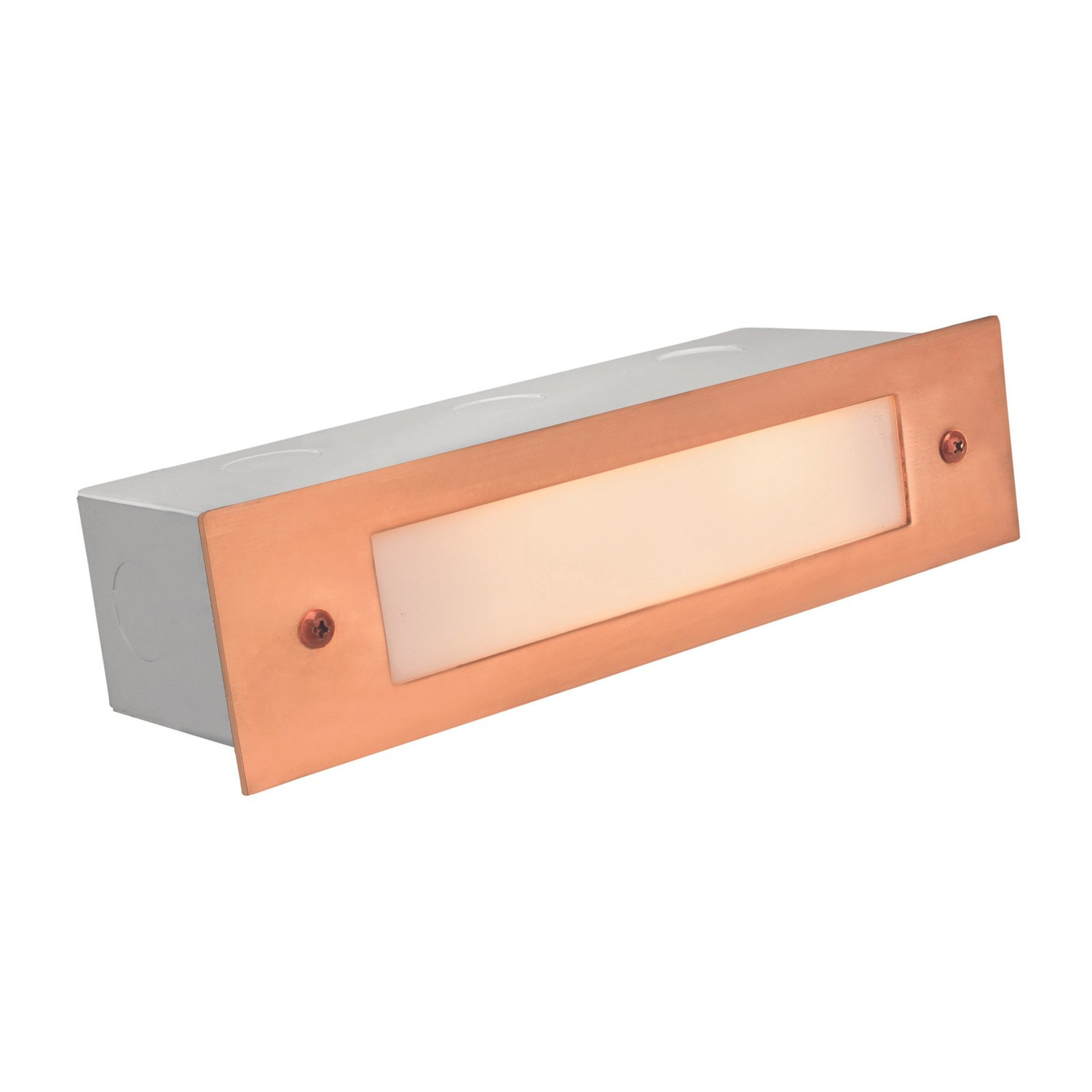

Copper Lensed Brick Step Light, Recessed, 9 Inch, Raw Copper, 210 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Raw Copper lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Architectural lensed brick step light for steps and masonry walls
- Finish: Raw Copper lensed faceplate
- Faceplate and lens: Raw Copper faceplate with high-impact white frosted polycarbonate lens and silicone gasket
- 12V low-voltage system; LED voltage range 8–21V; remote transformer required
- Includes two SCB bayonet LED lamps: 2W each, CRI 80, 200 lumens at 2700K and 210 lumens at 3000K per lamp, ~25,000-hour rated life
- Two SCB bayonet sockets on aluminum reflector; accepts up to 27W halogen per socket
- Housing: heavy-duty, corrosion-resistant galvanized steel recessed back box with self-leveling adjustable bars
- Prewired with 12" direct-burial cord; connectors sold separately
- Dimensions: faceplate 9" W x 2-1/4" H; back box approx 8" L x 3" D x 2" H
- Ship weight: ~4 lbs
- Warranty: Raw Copper finish limited lifetime
- Included lamps covered by a 5-year manufacturer's warranty
This Raw Copper lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Architectural lensed brick step light for steps and masonry walls
- Finish: Raw Copper lensed faceplate
- Faceplate and lens: Raw Copper faceplate with high-impact white frosted polycarbonate lens and silicone gasket
- 12V low-voltage system; LED voltage range 8–21V; remote transformer required
- Includes two SCB bayonet LED lamps: 2W each, CRI 80, 200 lumens at 2700K and 210 lumens at 3000K per lamp, ~25,000-hour rated life
- Two SCB bayonet sockets on aluminum reflector; accepts up to 27W halogen per socket
- Housing: heavy-duty, corrosion-resistant galvanized steel recessed back box with self-leveling adjustable bars
- Prewired with 12" direct-burial cord; connectors sold separately
- Dimensions: faceplate 9" W x 2-1/4" H; back box approx 8" L x 3" D x 2" H
- Ship weight: ~4 lbs
- Warranty: Raw Copper finish limited lifetime
- Included lamps covered by a 5-year manufacturer's warranty
Overview
This Raw Copper lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Architectural lensed brick step light for steps and masonry walls
- Finish: Raw Copper lensed faceplate
- Faceplate and lens: Raw Copper faceplate with high-impact white frosted polycarbonate lens and silicone gasket
- 12V low-voltage system; LED voltage range 8–21V; remote transformer required
- Includes two SCB bayonet LED lamps: 2W each, CRI 80, 200 lumens at 2700K and 210 lumens at 3000K per lamp, ~25,000-hour rated life
- Two SCB bayonet sockets on aluminum reflector; accepts up to 27W halogen per socket
- Housing: heavy-duty, corrosion-resistant galvanized steel recessed back box with self-leveling adjustable bars
- Prewired with 12" direct-burial cord; connectors sold separately
- Dimensions: faceplate 9" W x 2-1/4" H; back box approx 8" L x 3" D x 2" H
- Ship weight: ~4 lbs
- Warranty: Raw Copper finish limited lifetime
- Included lamps covered by a 5-year manufacturer's warranty
Specifications
| Copper Lensed Brick Step Light, Recessed, 9 Inch, Raw Copper, 210 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 200 - 210LM |
| Efficacy | 100LM/W |
| Wattage | 2W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| LED Heads | 2 |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate: 9" W x 2-1/4" H; Back box: Approx. 8" L x 3" D x 2" H |
| Finish | Raw Copper |
| Material | Raw copper faceplate; galvanized steel housing/back box; high-impact white frosted polycarbonate lens; silicone gasket |
| Lifetime | 25,000 Hours |
| Warranty | RC (Raw Copper) finish — limited lifetime; BK/BZ/RT/WH finishes — five-year (family note). |
