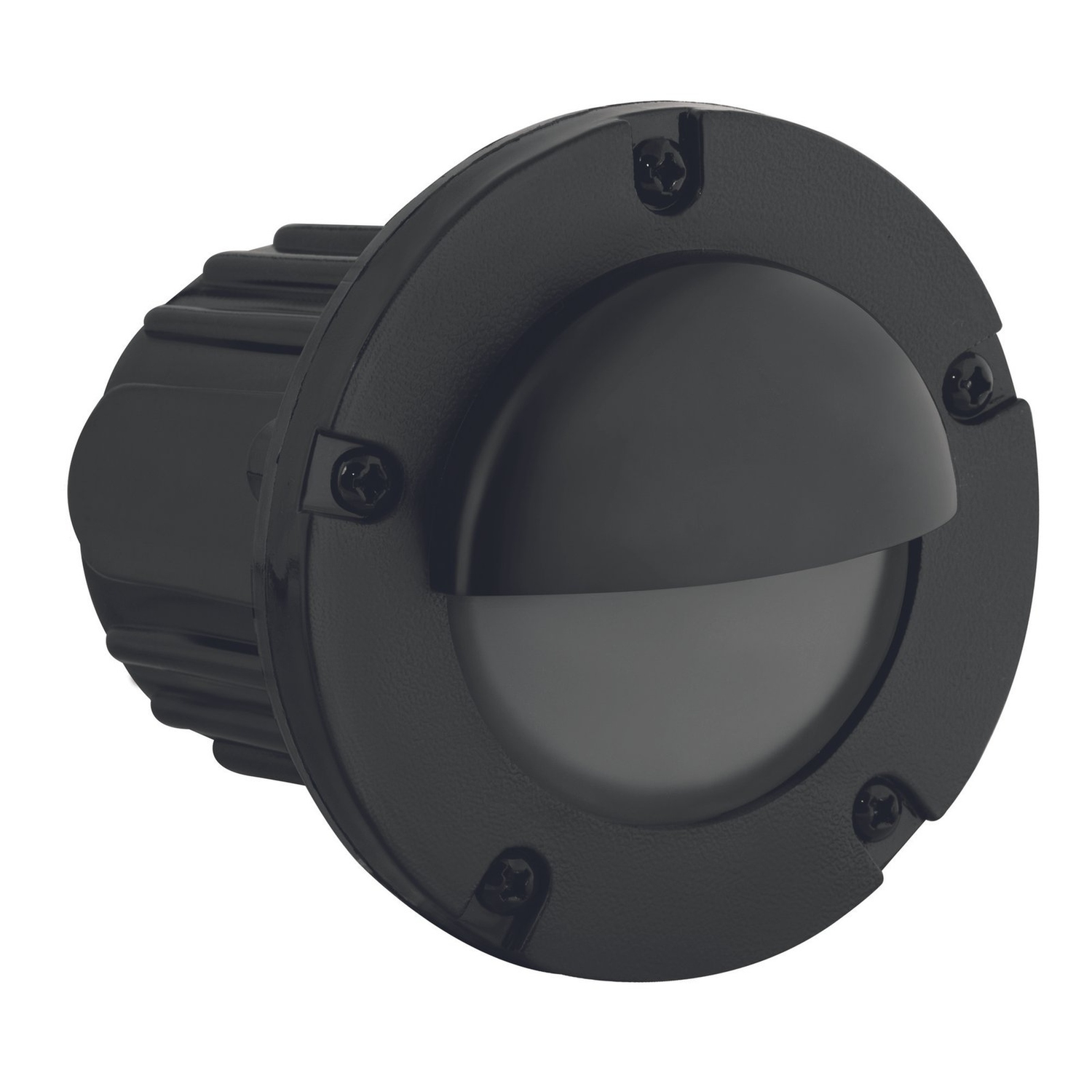

Half-Moon Glass Lens Disc Step Light, In-Ground, 5 Inch, Black, 45° Wide Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This half-moon glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Architectural-grade composite half-moon step/brick light with black finish
- Injection-molded composite housing and faceplate with high UV stability
- Frosted heat-resistant glass lens for soft output
- 12V socket with top-grade adjustable ceramic bi-pin and retention clip, ±25° tilt, 50W max
- Includes 5W MR16 LED COB lamp, 45° flood beam, approx 350 Lumens, 50,000-hour life; LED operating range 9–17V
- Mounting: in-ground direct burial or concrete encasement
- Silicone O-ring seal for weather-tight protection
- Dimensions: 4-7/8" Dia x 6" L
- ETL listed; rated to operate from -22°F to 122°F
- Warranty: 10-year fixture warranty
This half-moon glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Architectural-grade composite half-moon step/brick light with black finish
- Injection-molded composite housing and faceplate with high UV stability
- Frosted heat-resistant glass lens for soft output
- 12V socket with top-grade adjustable ceramic bi-pin and retention clip, ±25° tilt, 50W max
- Includes 5W MR16 LED COB lamp, 45° flood beam, approx 350 Lumens, 50,000-hour life; LED operating range 9–17V
- Mounting: in-ground direct burial or concrete encasement
- Silicone O-ring seal for weather-tight protection
- Dimensions: 4-7/8" Dia x 6" L
- ETL listed; rated to operate from -22°F to 122°F
- Warranty: 10-year fixture warranty
Overview
This half-moon glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Architectural-grade composite half-moon step/brick light with black finish
- Injection-molded composite housing and faceplate with high UV stability
- Frosted heat-resistant glass lens for soft output
- 12V socket with top-grade adjustable ceramic bi-pin and retention clip, ±25° tilt, 50W max
- Includes 5W MR16 LED COB lamp, 45° flood beam, approx 350 Lumens, 50,000-hour life; LED operating range 9–17V
- Mounting: in-ground direct burial or concrete encasement
- Silicone O-ring seal for weather-tight protection
- Dimensions: 4-7/8" Dia x 6" L
- ETL listed; rated to operate from -22°F to 122°F
- Warranty: 10-year fixture warranty
Specifications
| Half-Moon Glass Lens Disc Step Light, In-Ground, 5 Inch, Black, 45° Wide Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 45° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 6" L |
| Finish | Black |
| Material | Injection-molded composite |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Ten-year fixture warranty and five-year lamp warranty |
