Brass Convex Lens Path Light, 18 Inch Stem, Antique Bronze, 15° Narrow Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

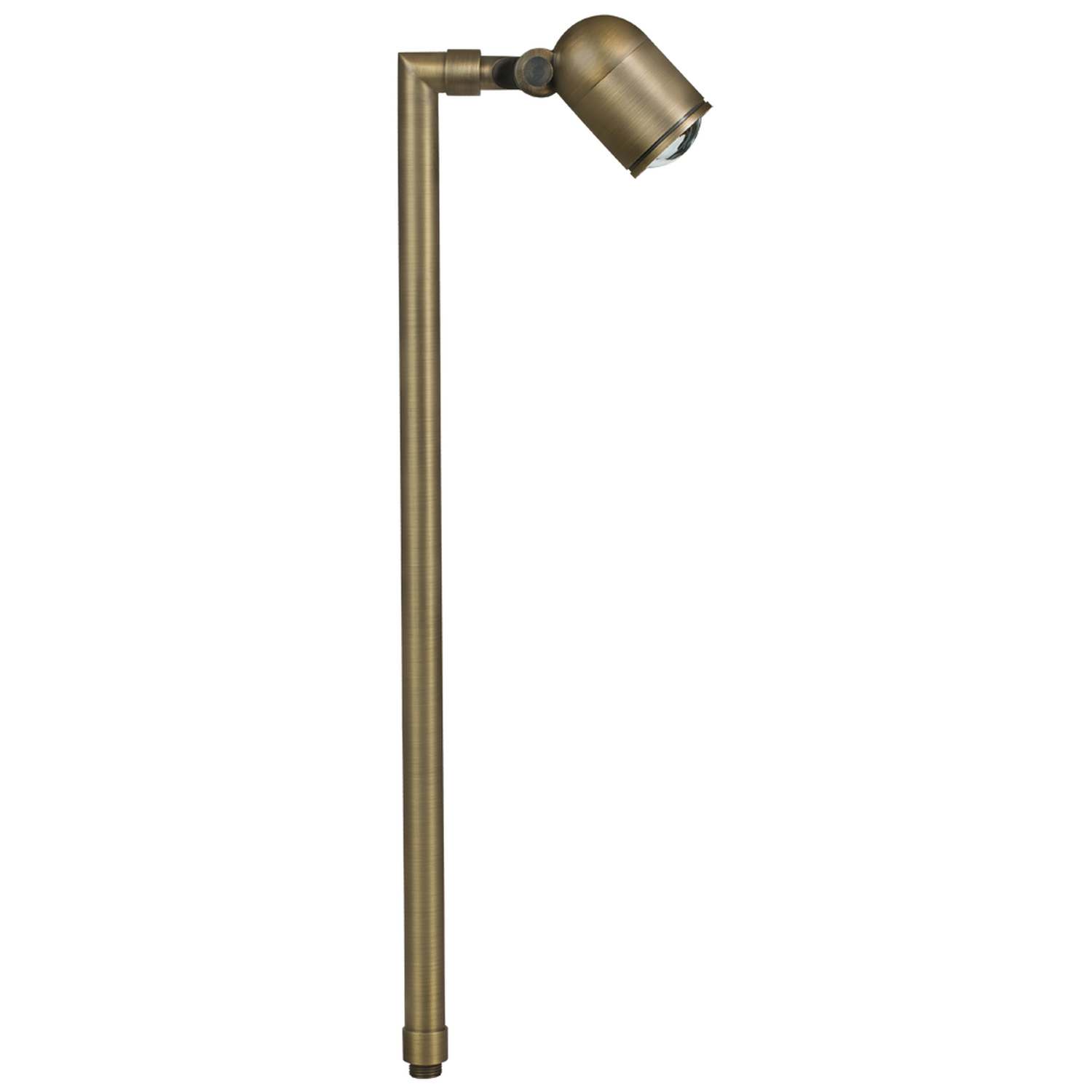

This Antique Bronze cast brass lensed single-head path light is designed for 12V MR16 lamps and includes a 5W LED MR16 lamp producing 350 Lumens at 2700K with a CRI of 80 and a 15° beam angle. The fixture measures 2.5" Dia. x 18" high and features a clear heat-resistant convex glass lens, a fixed ceramic bi-pin socket with silicone double-gasketed water-tight sealing, and an adjustable cast brass knuckle with thumb screw. It comes prewired with 3 ft of 18-2 SPT2-W direct-burial cord and a standing injection-molded ground spike for straightforward low-voltage landscape installation. The included lamp is dimmable and rated for 50,000 hours of operation. Ideal for lining garden paths, entry walkways, and landscape borders where guided foot traffic and ground-level illumination are needed after dark.
Features
-
- Architectural brass lensed single-head path light for 12V MR16 lamps
- Dimensions: 2.5 Inch Dia x 18 Inch high
- Includes MR16 LED lamp: 5W, 350 Lumens, 2700K, CRI 80, 15° beam angle, dimmable, ~70 Lumens/W efficacy, 50,000-hour lifetime
- Corrosion-resistant cast brass housing and shroud with clear heat-resistant convex glass lens
- Fixed ceramic bi-pin socket with retention clip; silicone double-gasketed watertight sealing
- Adjustable cast brass knuckle with thumb screw; solid brass pipe stem with 1/2 Inch NPT thread
- Standing injection-molded ground spike with 1/2 Inch NPT female hub
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord
- Electrical: LED operating range 9–17V
- ETL listed; rated to operate from -22°F to 122°F
- Lamp backed by 5-year manufacturer warranty
This Antique Bronze cast brass lensed single-head path light is designed for 12V MR16 lamps and includes a 5W LED MR16 lamp producing 350 Lumens at 2700K with a CRI of 80 and a 15° beam angle. The fixture measures 2.5" Dia. x 18" high and features a clear heat-resistant convex glass lens, a fixed ceramic bi-pin socket with silicone double-gasketed water-tight sealing, and an adjustable cast brass knuckle with thumb screw. It comes prewired with 3 ft of 18-2 SPT2-W direct-burial cord and a standing injection-molded ground spike for straightforward low-voltage landscape installation. The included lamp is dimmable and rated for 50,000 hours of operation. Ideal for lining garden paths, entry walkways, and landscape borders where guided foot traffic and ground-level illumination are needed after dark.
Features
-
- Architectural brass lensed single-head path light for 12V MR16 lamps
- Dimensions: 2.5 Inch Dia x 18 Inch high
- Includes MR16 LED lamp: 5W, 350 Lumens, 2700K, CRI 80, 15° beam angle, dimmable, ~70 Lumens/W efficacy, 50,000-hour lifetime
- Corrosion-resistant cast brass housing and shroud with clear heat-resistant convex glass lens
- Fixed ceramic bi-pin socket with retention clip; silicone double-gasketed watertight sealing
- Adjustable cast brass knuckle with thumb screw; solid brass pipe stem with 1/2 Inch NPT thread
- Standing injection-molded ground spike with 1/2 Inch NPT female hub
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord
- Electrical: LED operating range 9–17V
- ETL listed; rated to operate from -22°F to 122°F
- Lamp backed by 5-year manufacturer warranty
Overview
This Antique Bronze cast brass lensed single-head path light is designed for 12V MR16 lamps and includes a 5W LED MR16 lamp producing 350 Lumens at 2700K with a CRI of 80 and a 15° beam angle. The fixture measures 2.5" Dia. x 18" high and features a clear heat-resistant convex glass lens, a fixed ceramic bi-pin socket with silicone double-gasketed water-tight sealing, and an adjustable cast brass knuckle with thumb screw. It comes prewired with 3 ft of 18-2 SPT2-W direct-burial cord and a standing injection-molded ground spike for straightforward low-voltage landscape installation. The included lamp is dimmable and rated for 50,000 hours of operation. Ideal for lining garden paths, entry walkways, and landscape borders where guided foot traffic and ground-level illumination are needed after dark.
Features
-
- Architectural brass lensed single-head path light for 12V MR16 lamps
- Dimensions: 2.5 Inch Dia x 18 Inch high
- Includes MR16 LED lamp: 5W, 350 Lumens, 2700K, CRI 80, 15° beam angle, dimmable, ~70 Lumens/W efficacy, 50,000-hour lifetime
- Corrosion-resistant cast brass housing and shroud with clear heat-resistant convex glass lens
- Fixed ceramic bi-pin socket with retention clip; silicone double-gasketed watertight sealing
- Adjustable cast brass knuckle with thumb screw; solid brass pipe stem with 1/2 Inch NPT thread
- Standing injection-molded ground spike with 1/2 Inch NPT female hub
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord
- Electrical: LED operating range 9–17V
- ETL listed; rated to operate from -22°F to 122°F
- Lamp backed by 5-year manufacturer warranty
Specifications
| Brass Convex Lens Path Light, 18 Inch Stem, Antique Bronze, 15° Narrow Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80.0+ |
| Beam Angle | 15° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Ground Spike |
| Dimensions | 2-1/2" Dia. x 18" H |
| Finish | Antique Bronze |
| Material | Cast brass housing and solid brass stem |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on cast brass fixture housing; five (5) year limited warranty on LED lamp module |
