Brass Convex Lens Path Light, 18 Inch Stem, Antique Bronze, 60° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

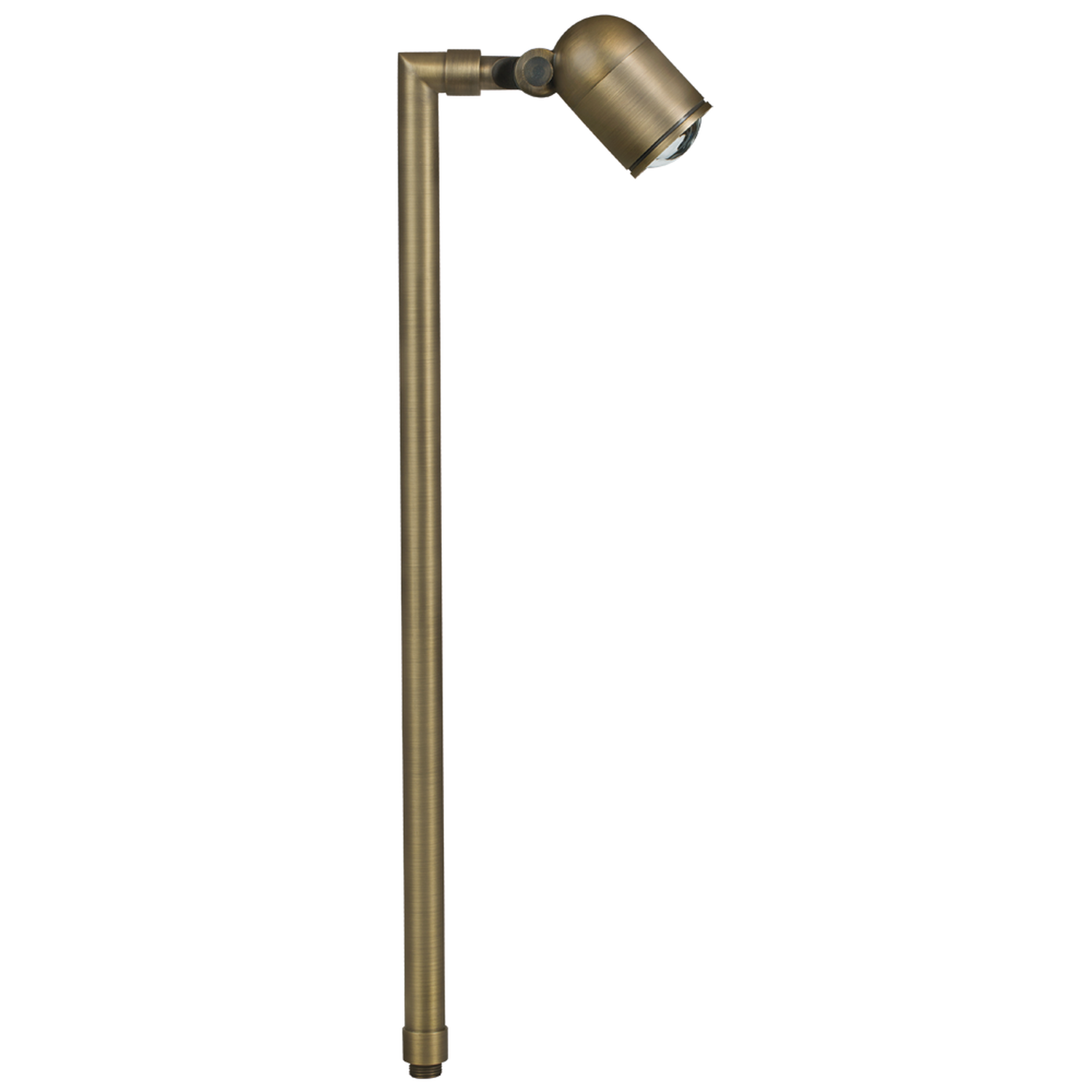

This architectural-grade brass lensed single-head path light features a 2.5" Dia. head on an 18" solid brass stem in an Antique Bronze finish. It includes a 3.5W MR16 LED lamp producing 270 Lumens at 2700K with a 60° wide beam angle, dimmable and rated for 50,000 hours. The fixture operates on 12V systems and comes prewired with a 3 ft direct-burial cord, mounting via a ground spike. A clear heat-resistant convex glass lens and double silicone gasket ensure water-tight performance in outdoor environments. Ideal for lining garden paths and entry walkways where guided ground-level illumination enhances safety after dark.
Features
-
- Architectural-grade lensed single-head path light with corrosion-resistant cast brass housing and shroud; Antique Bronze finish
- Includes MR16 LED lamp: 3.5W, 270 Lumens at 2700K, 60° beam angle, CRI 80, rated lifetime 50,000 hours, dimmable, 77.1 Lumens/W efficacy, approximately 25W halogen equivalency
- 12V system operation; MR16 LED options rated to operate 9–17V; remote 12V transformer required
- Clear heat-resistant convex glass lens with fixed ceramic bi-pin socket and retention clip
- Double silicone gasket for water-tight sealing; adjustable cast brass knuckle with thumb screw
- Approx. 2.5" Dia x 18" high overall; 18" solid brass stem with 1/2" NPT thread and ground spike mounting
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord
This architectural-grade brass lensed single-head path light features a 2.5" Dia. head on an 18" solid brass stem in an Antique Bronze finish. It includes a 3.5W MR16 LED lamp producing 270 Lumens at 2700K with a 60° wide beam angle, dimmable and rated for 50,000 hours. The fixture operates on 12V systems and comes prewired with a 3 ft direct-burial cord, mounting via a ground spike. A clear heat-resistant convex glass lens and double silicone gasket ensure water-tight performance in outdoor environments. Ideal for lining garden paths and entry walkways where guided ground-level illumination enhances safety after dark.
Features
-
- Architectural-grade lensed single-head path light with corrosion-resistant cast brass housing and shroud; Antique Bronze finish
- Includes MR16 LED lamp: 3.5W, 270 Lumens at 2700K, 60° beam angle, CRI 80, rated lifetime 50,000 hours, dimmable, 77.1 Lumens/W efficacy, approximately 25W halogen equivalency
- 12V system operation; MR16 LED options rated to operate 9–17V; remote 12V transformer required
- Clear heat-resistant convex glass lens with fixed ceramic bi-pin socket and retention clip
- Double silicone gasket for water-tight sealing; adjustable cast brass knuckle with thumb screw
- Approx. 2.5" Dia x 18" high overall; 18" solid brass stem with 1/2" NPT thread and ground spike mounting
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord
Overview
This architectural-grade brass lensed single-head path light features a 2.5" Dia. head on an 18" solid brass stem in an Antique Bronze finish. It includes a 3.5W MR16 LED lamp producing 270 Lumens at 2700K with a 60° wide beam angle, dimmable and rated for 50,000 hours. The fixture operates on 12V systems and comes prewired with a 3 ft direct-burial cord, mounting via a ground spike. A clear heat-resistant convex glass lens and double silicone gasket ensure water-tight performance in outdoor environments. Ideal for lining garden paths and entry walkways where guided ground-level illumination enhances safety after dark.
Features
-
- Architectural-grade lensed single-head path light with corrosion-resistant cast brass housing and shroud; Antique Bronze finish
- Includes MR16 LED lamp: 3.5W, 270 Lumens at 2700K, 60° beam angle, CRI 80, rated lifetime 50,000 hours, dimmable, 77.1 Lumens/W efficacy, approximately 25W halogen equivalency
- 12V system operation; MR16 LED options rated to operate 9–17V; remote 12V transformer required
- Clear heat-resistant convex glass lens with fixed ceramic bi-pin socket and retention clip
- Double silicone gasket for water-tight sealing; adjustable cast brass knuckle with thumb screw
- Approx. 2.5" Dia x 18" high overall; 18" solid brass stem with 1/2" NPT thread and ground spike mounting
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord
Specifications
| Brass Convex Lens Path Light, 18 Inch Stem, Antique Bronze, 60° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80.0+ |
| Beam Angle | 60° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Ground Spike |
| Dimensions | 2-1/2" Dia. x 18" H |
| Finish | Antique Bronze |
| Material | Cast brass housing; solid brass stem |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing, Five (5) years limited warranty on LED module |
