Brass Convex Lens Path Light, 24 Inch Stem, Silver Plated, 15° Narrow Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

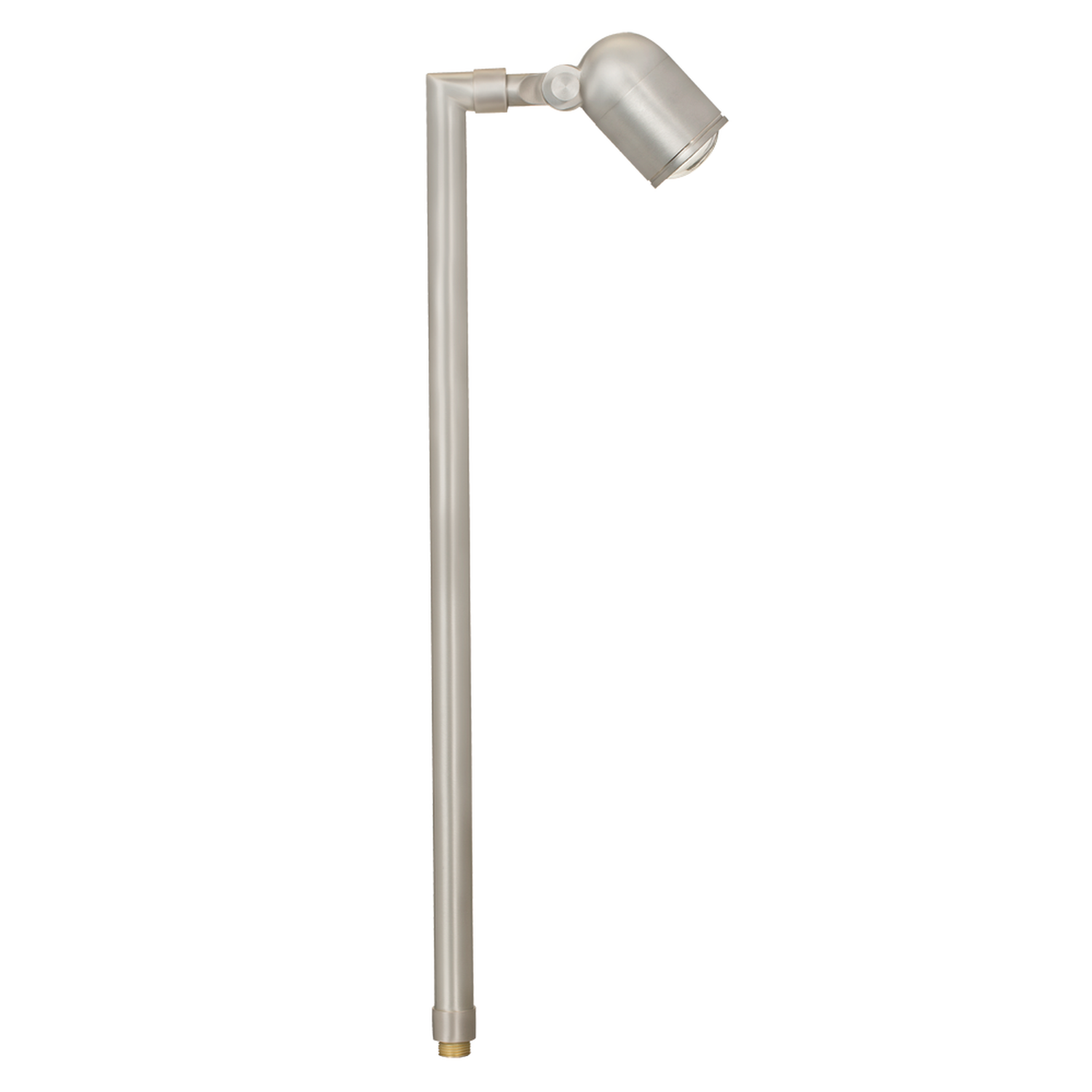

This corrosion-resistant cast brass architectural path light features a 2.5" Dia. head mounted on a 24" high solid brass stem with a ground spike for easy low-voltage installation. The fixture ships with a 5W MR16 LED spot lamp delivering a focused 15° beam and producing 350 Lumens. A clear convex glass lens and double silicone gaskets provide watertight sealing, while an adjustable cast brass knuckle allows precise aiming. Designed for 12V systems with an LED operating range of 9–17V, a remote 12V transformer is required. Ideal for lining garden walkways and entry paths where focused, low-glare illumination safely guides foot traffic.
Features
-
- Corrosion-resistant cast brass housing and shroud with clear heat-resistant convex glass lens
- Top-grade fixed ceramic bi-pin socket with retention clip and double silicone gaskets for watertight sealing
- Adjustable cast brass knuckle with thumb screw
- 5" Dia head on 24" high solid brass stem with 1/2" NPT on bottom
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord and supplied ground spike with 1/2" NPT threaded female hub
- 12V system; MR16 base; 50W max
- LED operating range 9–17V; remote 12V transformer required
- Bundled lamp: 5W LED spot, 15° beam, 350 Lumens, 50,000-hour rated life, CRI 80
- 5-year limited warranty on LED lamp
This corrosion-resistant cast brass architectural path light features a 2.5" Dia. head mounted on a 24" high solid brass stem with a ground spike for easy low-voltage installation. The fixture ships with a 5W MR16 LED spot lamp delivering a focused 15° beam and producing 350 Lumens. A clear convex glass lens and double silicone gaskets provide watertight sealing, while an adjustable cast brass knuckle allows precise aiming. Designed for 12V systems with an LED operating range of 9–17V, a remote 12V transformer is required. Ideal for lining garden walkways and entry paths where focused, low-glare illumination safely guides foot traffic.
Features
-
- Corrosion-resistant cast brass housing and shroud with clear heat-resistant convex glass lens
- Top-grade fixed ceramic bi-pin socket with retention clip and double silicone gaskets for watertight sealing
- Adjustable cast brass knuckle with thumb screw
- 5" Dia head on 24" high solid brass stem with 1/2" NPT on bottom
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord and supplied ground spike with 1/2" NPT threaded female hub
- 12V system; MR16 base; 50W max
- LED operating range 9–17V; remote 12V transformer required
- Bundled lamp: 5W LED spot, 15° beam, 350 Lumens, 50,000-hour rated life, CRI 80
- 5-year limited warranty on LED lamp
Overview
This corrosion-resistant cast brass architectural path light features a 2.5" Dia. head mounted on a 24" high solid brass stem with a ground spike for easy low-voltage installation. The fixture ships with a 5W MR16 LED spot lamp delivering a focused 15° beam and producing 350 Lumens. A clear convex glass lens and double silicone gaskets provide watertight sealing, while an adjustable cast brass knuckle allows precise aiming. Designed for 12V systems with an LED operating range of 9–17V, a remote 12V transformer is required. Ideal for lining garden walkways and entry paths where focused, low-glare illumination safely guides foot traffic.
Features
-
- Corrosion-resistant cast brass housing and shroud with clear heat-resistant convex glass lens
- Top-grade fixed ceramic bi-pin socket with retention clip and double silicone gaskets for watertight sealing
- Adjustable cast brass knuckle with thumb screw
- 5" Dia head on 24" high solid brass stem with 1/2" NPT on bottom
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord and supplied ground spike with 1/2" NPT threaded female hub
- 12V system; MR16 base; 50W max
- LED operating range 9–17V; remote 12V transformer required
- Bundled lamp: 5W LED spot, 15° beam, 350 Lumens, 50,000-hour rated life, CRI 80
- 5-year limited warranty on LED lamp
Specifications
| Brass Convex Lens Path Light, 24 Inch Stem, Silver Plated, 15° Narrow Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80.0+ |
| Beam Angle | 15° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Ground Spike |

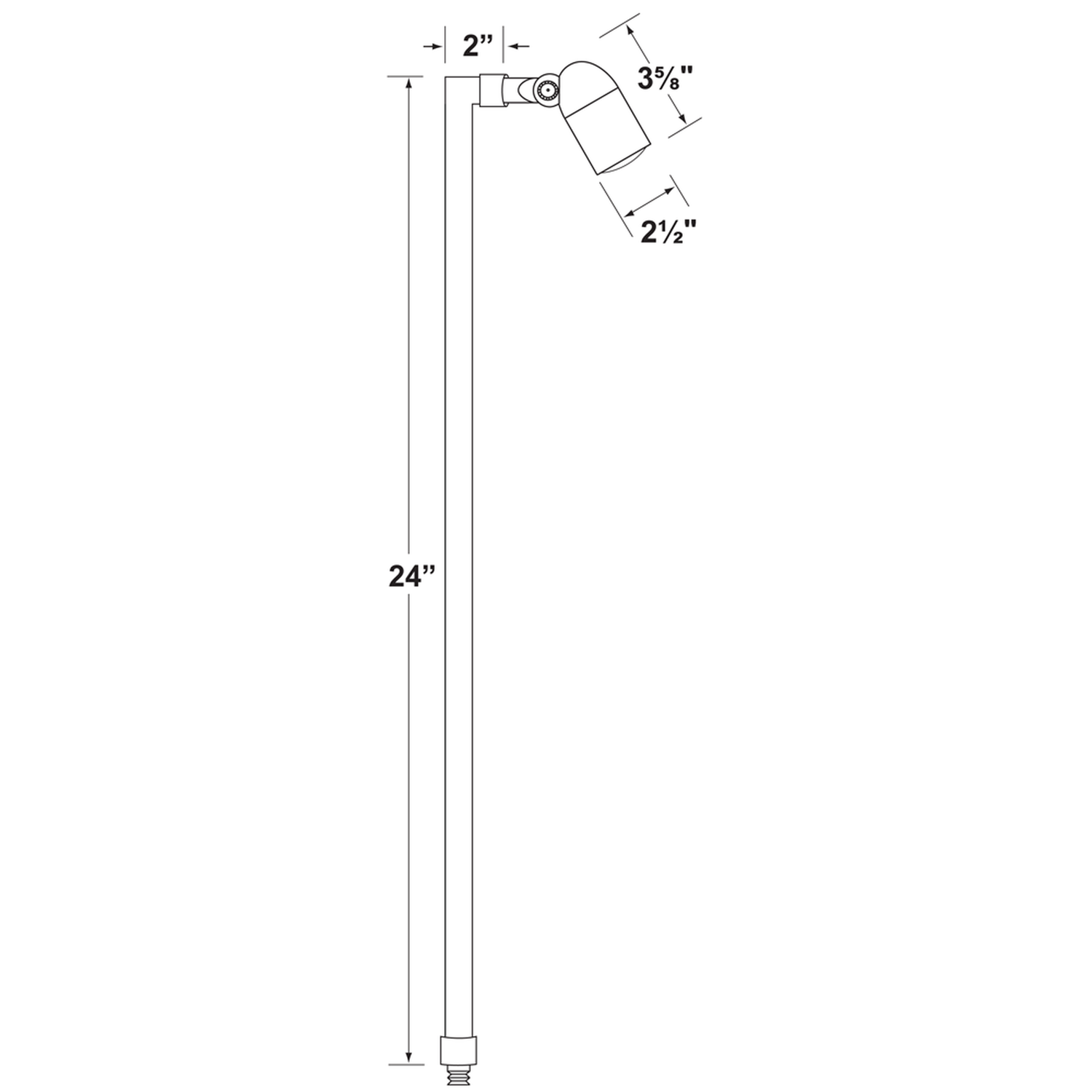

| Dimensions | 2-1/2" Dia. x 24" H |
| Finish | Silver Plated |
| Material | Corrosion-resistant cast brass |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited warranty on cast brass fixture housing per manufacturer terms; Five (5) years limited warranty on LED module |
