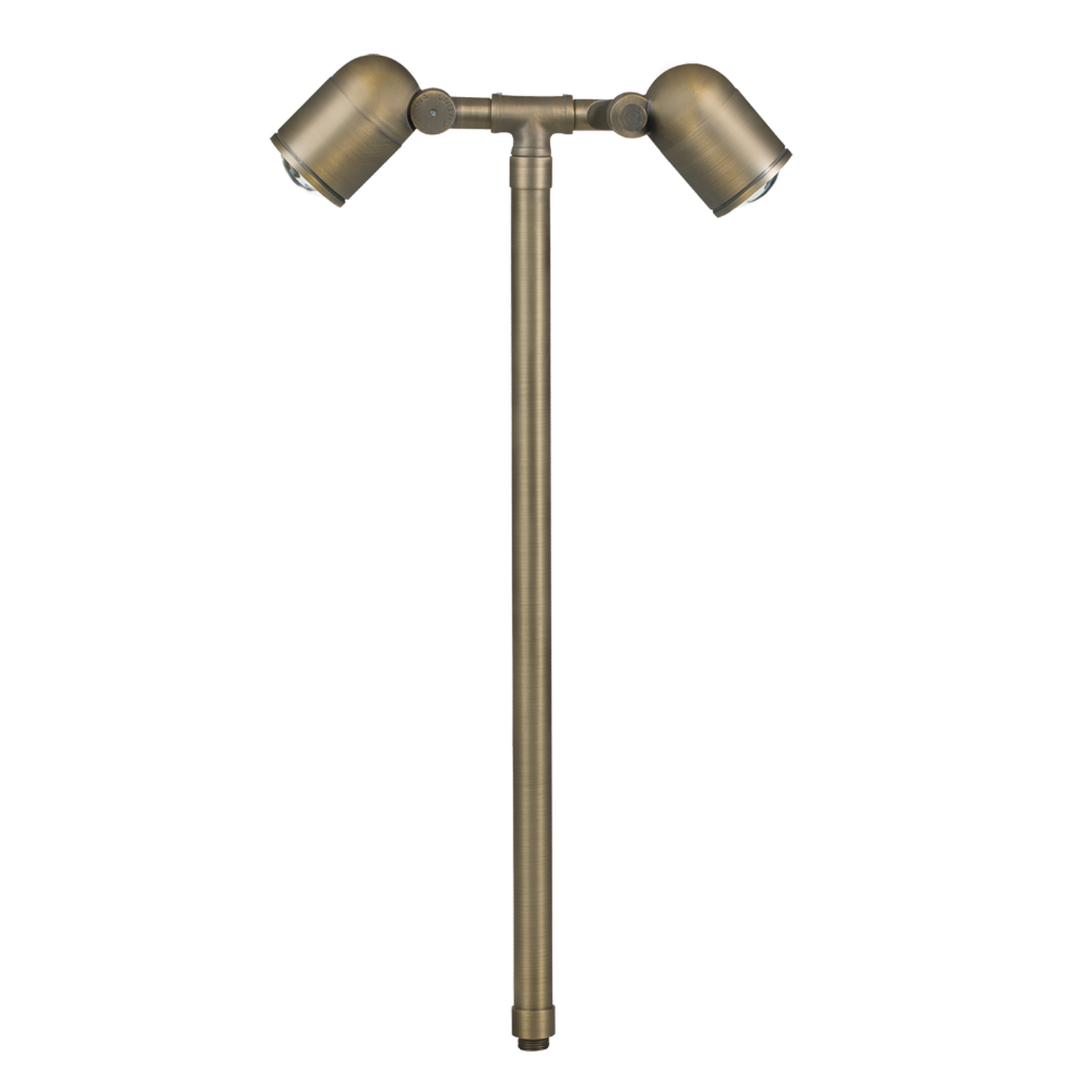

Brass Convex Lens Twin Path Light, 18 Inch Stem, Antique Bronze, 15° Narrow Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This dual-head path light features a solid brass stem and cast-brass knuckles in an Antique Bronze finish, standing 18" high with a 2-1/2" Dia. head. Each head houses a ceramic bi-pin socket with a clear convex glass lens and silicone double-gasketing for watertight sealing. The fixture includes two 3.5W MR16 LED lamps delivering 270 Lumens at 2700K with a 15° narrow beam angle and a 50,000-hour rated life. Operating on a low-voltage 12V system with a 9–17V range, it comes pre-wired with 3 ft of 18-2 SPT2-W direct-burial cable and an injection-molded ground spike. Ideal for lining garden pathways, driveways, and entry walks where soft, directional illumination safely guides foot traffic.
Features
-
- Solid brass stem and cast-brass knuckles with adjustable thumb screws for precise aiming
- Finish: Antique Bronze
- Two MR16 lamp heads with fixed ceramic bi-pin sockets and retention clips
- Clear heat-resistant convex glass lens per head with silicone double-gasketing
- Includes two MR16 LED lamps: 3.5W each, 270 Lumens, 2700K, CRI 80, 15° spot beam; dimmable; 50,000-hour rated life
- Low-voltage 12V system; LED operating range 9–17V; remote transformer required
- Prewired with 3 ft 18-2 SPT2-W direct-burial cable
- Includes injection-molded ground spike
- Dimensions: 2-1/2 Inch Dia x 18 Inch high
- Limited lifetime warranty on housing and stem
This dual-head path light features a solid brass stem and cast-brass knuckles in an Antique Bronze finish, standing 18" high with a 2-1/2" Dia. head. Each head houses a ceramic bi-pin socket with a clear convex glass lens and silicone double-gasketing for watertight sealing. The fixture includes two 3.5W MR16 LED lamps delivering 270 Lumens at 2700K with a 15° narrow beam angle and a 50,000-hour rated life. Operating on a low-voltage 12V system with a 9–17V range, it comes pre-wired with 3 ft of 18-2 SPT2-W direct-burial cable and an injection-molded ground spike. Ideal for lining garden pathways, driveways, and entry walks where soft, directional illumination safely guides foot traffic.
Features
-
- Solid brass stem and cast-brass knuckles with adjustable thumb screws for precise aiming
- Finish: Antique Bronze
- Two MR16 lamp heads with fixed ceramic bi-pin sockets and retention clips
- Clear heat-resistant convex glass lens per head with silicone double-gasketing
- Includes two MR16 LED lamps: 3.5W each, 270 Lumens, 2700K, CRI 80, 15° spot beam; dimmable; 50,000-hour rated life
- Low-voltage 12V system; LED operating range 9–17V; remote transformer required
- Prewired with 3 ft 18-2 SPT2-W direct-burial cable
- Includes injection-molded ground spike
- Dimensions: 2-1/2 Inch Dia x 18 Inch high
- Limited lifetime warranty on housing and stem
Overview
This dual-head path light features a solid brass stem and cast-brass knuckles in an Antique Bronze finish, standing 18" high with a 2-1/2" Dia. head. Each head houses a ceramic bi-pin socket with a clear convex glass lens and silicone double-gasketing for watertight sealing. The fixture includes two 3.5W MR16 LED lamps delivering 270 Lumens at 2700K with a 15° narrow beam angle and a 50,000-hour rated life. Operating on a low-voltage 12V system with a 9–17V range, it comes pre-wired with 3 ft of 18-2 SPT2-W direct-burial cable and an injection-molded ground spike. Ideal for lining garden pathways, driveways, and entry walks where soft, directional illumination safely guides foot traffic.
Features
-
- Solid brass stem and cast-brass knuckles with adjustable thumb screws for precise aiming
- Finish: Antique Bronze
- Two MR16 lamp heads with fixed ceramic bi-pin sockets and retention clips
- Clear heat-resistant convex glass lens per head with silicone double-gasketing
- Includes two MR16 LED lamps: 3.5W each, 270 Lumens, 2700K, CRI 80, 15° spot beam; dimmable; 50,000-hour rated life
- Low-voltage 12V system; LED operating range 9–17V; remote transformer required
- Prewired with 3 ft 18-2 SPT2-W direct-burial cable
- Includes injection-molded ground spike
- Dimensions: 2-1/2 Inch Dia x 18 Inch high
- Limited lifetime warranty on housing and stem
Specifications
| Brass Convex Lens Twin Path Light, 18 Inch Stem, Antique Bronze, 15° Narrow Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80.0+ |
| Beam Angle | 15° |
| LED Heads | 2 |
| Bulb Base | 2x MR16 |
| Included Components | COB LED |
| Mount Type | Ground Spike |
| Dimensions | 2-1/2" Dia. x 18" H |
| Finish | Antique Bronze |
| Material | Cast brass heads and solid brass stem |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime on fixture housing and stem; five (5) year manufacturer's warranty on the LED lamp |
