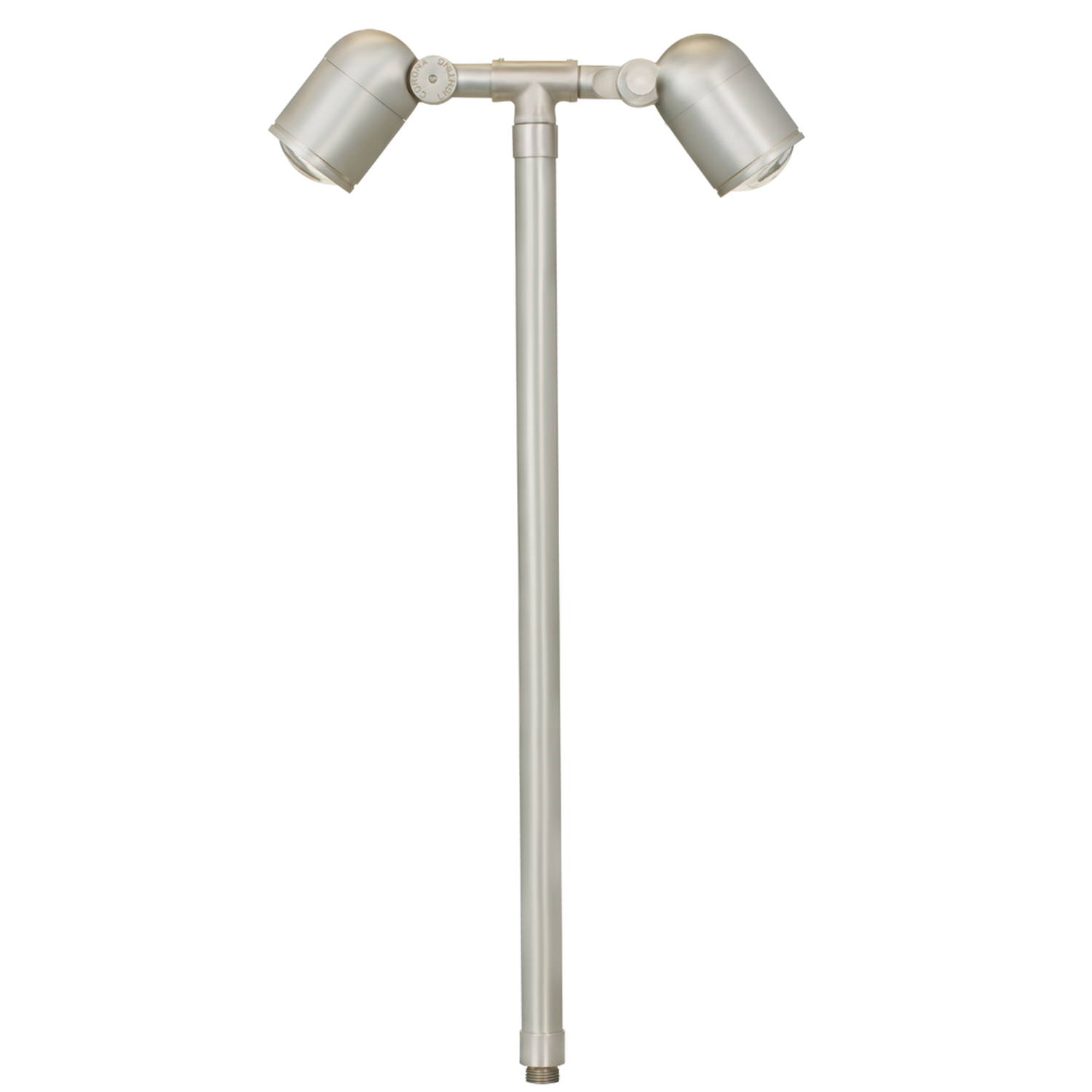

Brass Convex Lens Twin Path Light, 24 Inch Stem, Silver Plated, 45° Beam Angle, 270 Lumens

CLG-745B-T-SI-MR1653-FL-3W-27KClick to Copy
$279.99

Bulk Savings

automatically applied on carts over $500  - Learn more

  • Lumens : 270LM
  • Wattage : 3.5W
  • Dimming : Dimmable
  • CRI : 80.0+
  • Warranty : Limited lifetime warranty on fixture housing and stem; five (5) year manufacturer's warranty on the LED lamp
$279.99

Bulk Savings

automatically applied on orders over $500  - Learn more

Finish: Silver Plated
Beam Angle: Medium
Stem Height: 18 Inches
12 Inches 18 Inches
Wattage/Lumens: 3W / 270 lm
Color Guide
Color Temperature Guide Color Temperature Guide
Color :
2700K

Volume Discounts automatically applied for orders $500+

Free Shipping on orders $100+

Ships within 1 business day
Overview

This architectural double-head path and area light is built from corrosion-resistant cast brass with a solid brass stem and clear convex glass lenses, finished in Silver Plated. The fixture includes two MR16 LED lamps delivering 270 Lumens each at a 45° beam angle, with a 3.5W draw per head. It ships prewired with 3 ft of direct burial cord and requires a remote 12V transformer, with a CRI of 80 and a rated lifetime of 50,000 hours. Head Dia. measures 2-1/2 Inch, with an overall height of 24 Inch. Ideal for lining garden pathways and driveways, casting dual-directional ground illumination that safely guides foot traffic. Ideal for walkways, garden borders, and driveway edges that need safer navigation and balanced nighttime visibility.



 Features

    • Brass lensed double-head path and area light
    • Corrosion-resistant cast brass housing and shrouds with adjustable cast brass knuckle and thumb screw
    • Clear heat-resistant convex glass lens with silicone double gasketing for a water-tight seal
    • Top-grade fixed ceramic bi-pin socket with retention clip; for MR16 lamps
    • Lamp: 2 x MR16, 3.5W per head, 270 Lumens per head, 2700K, CRI 80, 45° beam angle, 50,000-hour rated life; dimmable per product specification
    • Electrical: 3 ft 18-2 SPT2-W direct-burial cord; requires remote 12V transformer (LED operating range 9–17V)
    • Mounting: injection-molded ground spike with 1/2" NPT threaded female hub

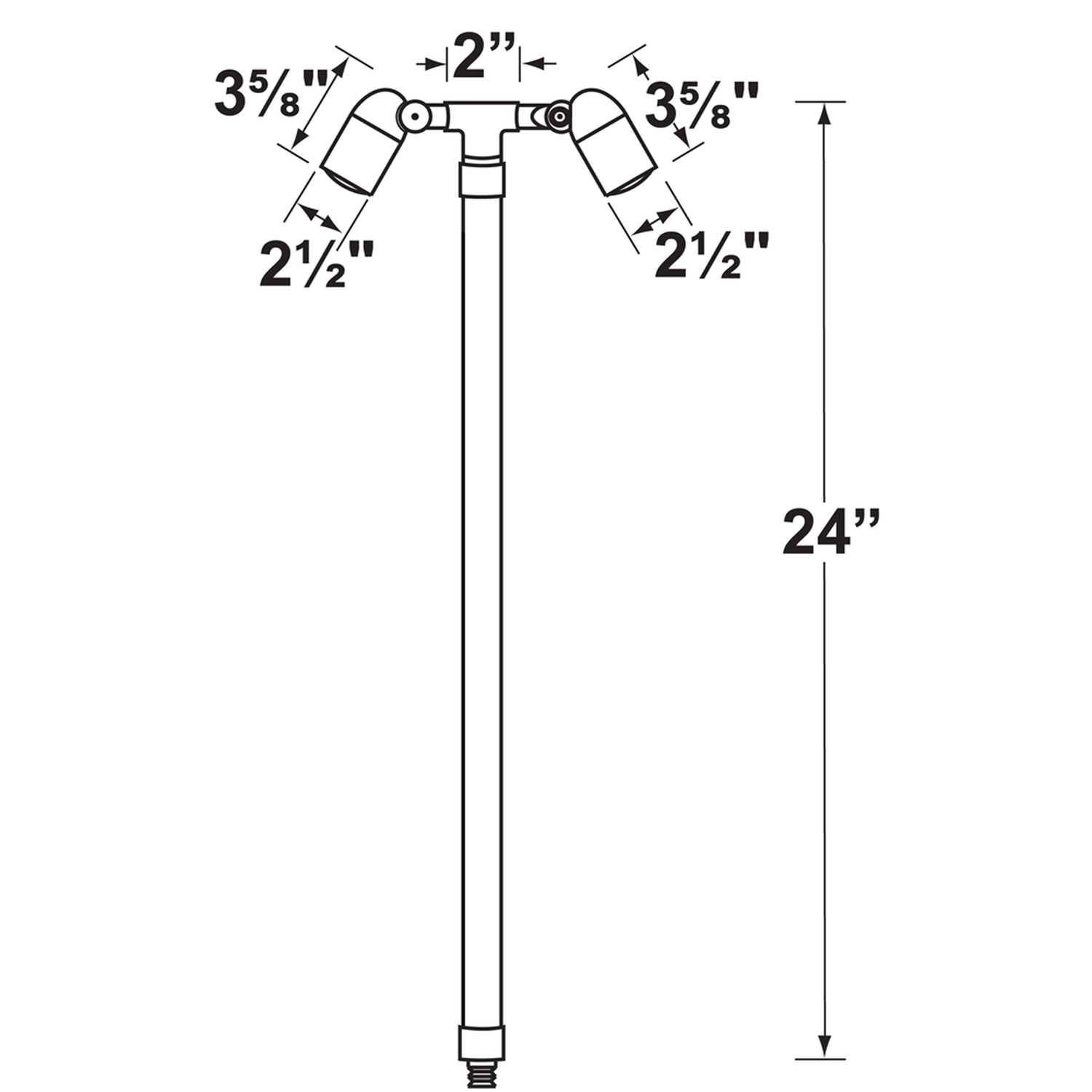

    • Dimensions: 2-1/2" Dia head; 24" overall height; 24" solid brass pipe stem with 1/2" NPT on bottom
    • Finish: Silver Plated
Overview

This architectural double-head path and area light is built from corrosion-resistant cast brass with a solid brass stem and clear convex glass lenses, finished in Silver Plated. The fixture includes two MR16 LED lamps delivering 270 Lumens each at a 45° beam angle, with a 3.5W draw per head. It ships prewired with 3 ft of direct burial cord and requires a remote 12V transformer, with a CRI of 80 and a rated lifetime of 50,000 hours. Head Dia. measures 2-1/2 Inch, with an overall height of 24 Inch. Ideal for lining garden pathways and driveways, casting dual-directional ground illumination that safely guides foot traffic. Ideal for walkways, garden borders, and driveway edges that need safer navigation and balanced nighttime visibility.



 Features

    • Brass lensed double-head path and area light
    • Corrosion-resistant cast brass housing and shrouds with adjustable cast brass knuckle and thumb screw
    • Clear heat-resistant convex glass lens with silicone double gasketing for a water-tight seal
    • Top-grade fixed ceramic bi-pin socket with retention clip; for MR16 lamps
    • Lamp: 2 x MR16, 3.5W per head, 270 Lumens per head, 2700K, CRI 80, 45° beam angle, 50,000-hour rated life; dimmable per product specification
    • Electrical: 3 ft 18-2 SPT2-W direct-burial cord; requires remote 12V transformer (LED operating range 9–17V)
    • Mounting: injection-molded ground spike with 1/2" NPT threaded female hub
    • Dimensions: 2-1/2" Dia head; 24" overall height; 24" solid brass pipe stem with 1/2" NPT on bottom
    • Finish: Silver Plated

Overview

This architectural double-head path and area light is built from corrosion-resistant cast brass with a solid brass stem and clear convex glass lenses, finished in Silver Plated. The fixture includes two MR16 LED lamps delivering 270 Lumens each at a 45° beam angle, with a 3.5W draw per head. It ships prewired with 3 ft of direct burial cord and requires a remote 12V transformer, with a CRI of 80 and a rated lifetime of 50,000 hours. Head Dia. measures 2-1/2 Inch, with an overall height of 24 Inch. Ideal for lining garden pathways and driveways, casting dual-directional ground illumination that safely guides foot traffic. Ideal for walkways, garden borders, and driveway edges that need safer navigation and balanced nighttime visibility.



 Features

    • Brass lensed double-head path and area light
    • Corrosion-resistant cast brass housing and shrouds with adjustable cast brass knuckle and thumb screw
    • Clear heat-resistant convex glass lens with silicone double gasketing for a water-tight seal
    • Top-grade fixed ceramic bi-pin socket with retention clip; for MR16 lamps
    • Lamp: 2 x MR16, 3.5W per head, 270 Lumens per head, 2700K, CRI 80, 45° beam angle, 50,000-hour rated life; dimmable per product specification
    • Electrical: 3 ft 18-2 SPT2-W direct-burial cord; requires remote 12V transformer (LED operating range 9–17V)
    • Mounting: injection-molded ground spike with 1/2" NPT threaded female hub
    • Dimensions: 2-1/2" Dia head; 24" overall height; 24" solid brass pipe stem with 1/2" NPT on bottom
    • Finish: Silver Plated

Specifications

Brass Convex Lens Twin Path Light, 24 Inch Stem, Silver Plated, 45° Beam Angle, 270 Lumens Specifications Download Specs
Brand NSL
Lumens 270LM
Efficacy 77.1LM/W
Wattage 3.5W
Wattage Equivalency 25W
Voltage Low Voltage
Operating Temperature -22°F to 122°F
Dimmable Dimmable
Dimming Details Dimmable
Color Temperature 2700K
CRI 80.0+
Beam Angle 45°
LED Heads 2
Bulb Base 2x MR16
Included Components COB LED
Mount Type Ground Spike
Dimensions Head Dia. 2-1/2"; H 24"; Stem 24" solid brass pipe with 1/2" NPT on bottom
Finish Silver Plated
Material Corrosion-resistant cast brass housing; solid brass stem; clear heat-resistant convex glass lens
Certifications ETL
Lifetime 50,000 Hours
Warranty Limited lifetime warranty on fixture housing and stem; five (5) year manufacturer's warranty on the LED lamp
