Emergency Battery, 40W/90 Min, 170 VDC Output, UFO High Bay LED Fixtures
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

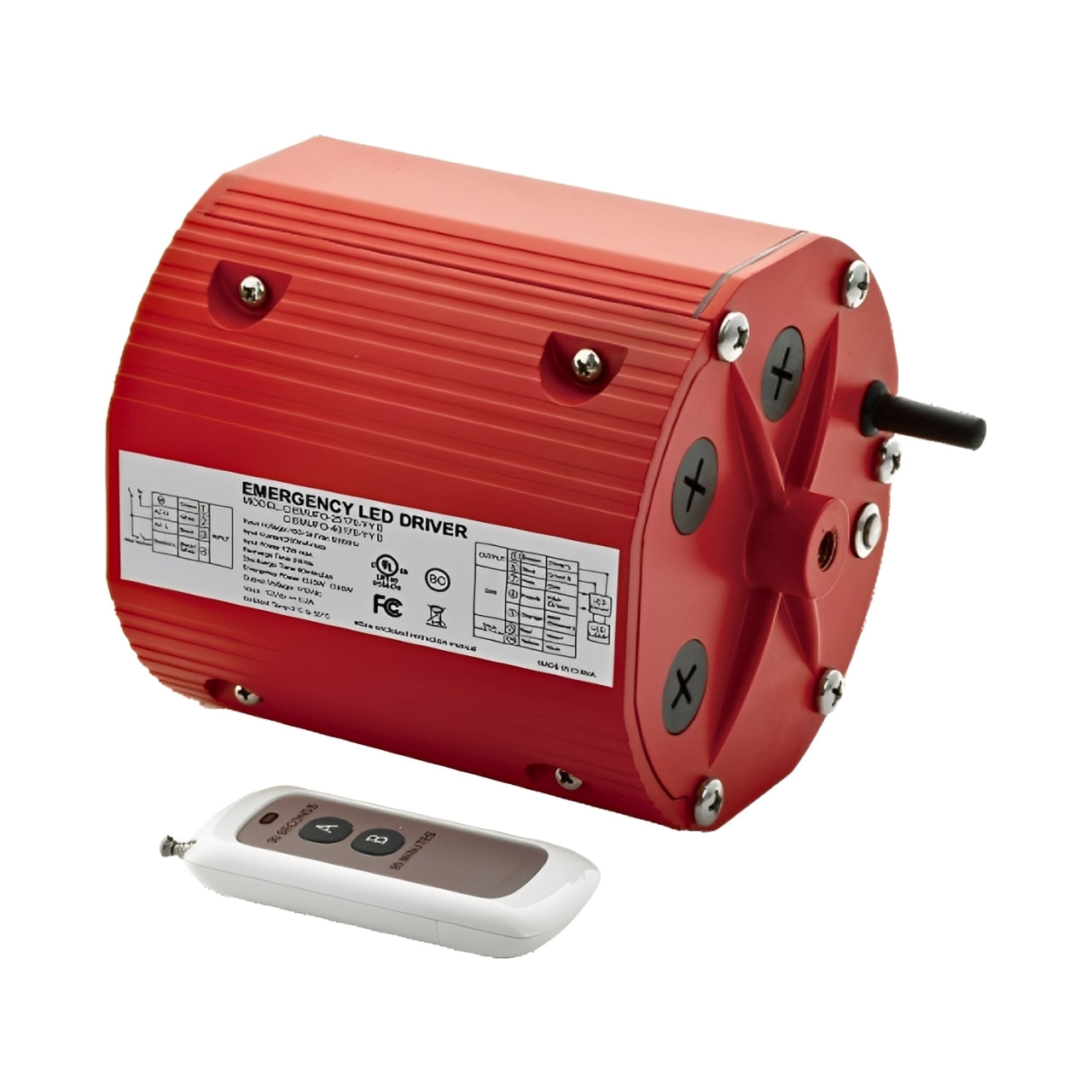

Ensure continuous operation and safety in your facility with the Emergency Battery designed for UFO High Bay light fixtures. This emergency backup LED driver provides reliable illumination during power outages, maintaining compliance and operational efficiency. With a powerful 40W emergency output and a sustained discharge time of 90 minutes, high bay fixtures will continue to deliver essential lighting when the main power fails. It features over-temperature, overcharge, and over-discharge protection for long-term reliability, along with 3kV line-neutral surge protection to shield the system from voltage spikes. A self-testing function simplifies maintenance and the optional remote test capability adds convenient operation. Engineered for easy installation, this LED high bay emergency battery comes with a built-in junction box and necessary accessories for a smooth setup.
Features
- Self-test capabilities
- Emergency power: 40W
- Discharge time: 90 minutes
- Recharge time: 24 hours
- Output voltage: 170 VDC
- Battery type: Li-ion
- Equipped with over-temperature, overcharge, and over-discharge protection for safe, reliable battery backup performance
- Has a 3kV line-neutral surge protection to safeguard the battery from voltage spikes
- Optional remote test function up to 98ft range

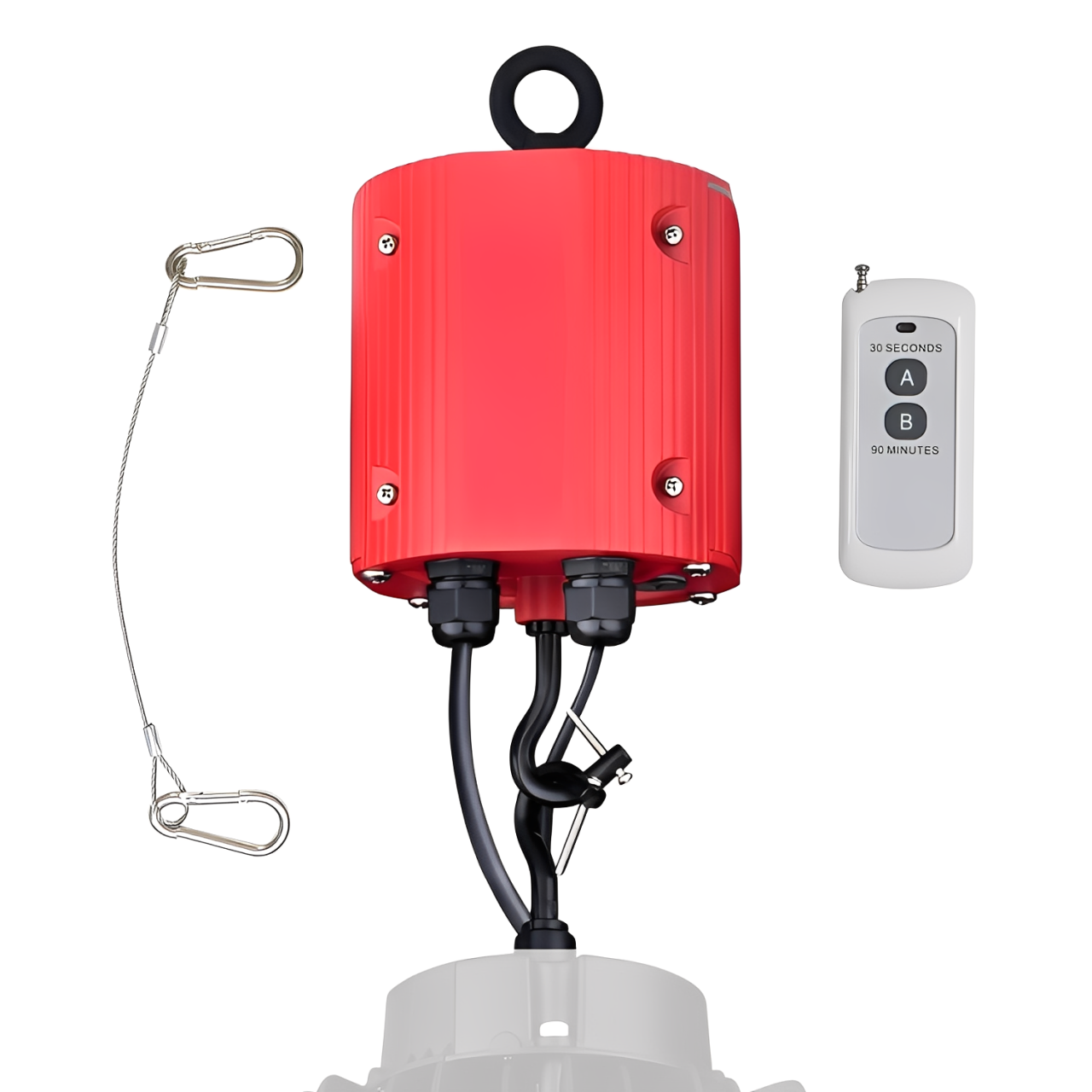

- Built-in integrated junction box
- Wire nuts, chain link connectors, M10 hanging hook and ring bolts, a safety rope, antenna, and remote included
- CEC Title 20 Compliant & UL certified
- 5-year manufacturer's warranty
Compatible Fixtures
| XS-HBG-240W-SCSDUVG | XS-HBG-320W-SCSDUVG |
| XS-HBF-24065W-4050K-80LV-C | XS-HBF-310W-4050K-80LV-C-WH |
Ensure continuous operation and safety in your facility with the Emergency Battery designed for UFO High Bay light fixtures. This emergency backup LED driver provides reliable illumination during power outages, maintaining compliance and operational efficiency. With a powerful 40W emergency output and a sustained discharge time of 90 minutes, high bay fixtures will continue to deliver essential lighting when the main power fails. It features over-temperature, overcharge, and over-discharge protection for long-term reliability, along with 3kV line-neutral surge protection to shield the system from voltage spikes. A self-testing function simplifies maintenance and the optional remote test capability adds convenient operation. Engineered for easy installation, this LED high bay emergency battery comes with a built-in junction box and necessary accessories for a smooth setup.
Features
- Self-test capabilities
- Emergency power: 40W
- Discharge time: 90 minutes
- Recharge time: 24 hours
- Output voltage: 170 VDC
- Battery type: Li-ion
- Equipped with over-temperature, overcharge, and over-discharge protection for safe, reliable battery backup performance
- Has a 3kV line-neutral surge protection to safeguard the battery from voltage spikes
- Optional remote test function up to 98ft range
- Built-in integrated junction box
- Wire nuts, chain link connectors, M10 hanging hook and ring bolts, a safety rope, antenna, and remote included
- CEC Title 20 Compliant & UL certified
- 5-year manufacturer's warranty
Compatible Fixtures
| XS-HBG-240W-SCSDUVG | XS-HBG-320W-SCSDUVG |
| XS-HBF-24065W-4050K-80LV-C | XS-HBF-310W-4050K-80LV-C-WH |
Overview
Ensure continuous operation and safety in your facility with the Emergency Battery designed for UFO High Bay light fixtures. This emergency backup LED driver provides reliable illumination during power outages, maintaining compliance and operational efficiency. With a powerful 40W emergency output and a sustained discharge time of 90 minutes, high bay fixtures will continue to deliver essential lighting when the main power fails. It features over-temperature, overcharge, and over-discharge protection for long-term reliability, along with 3kV line-neutral surge protection to shield the system from voltage spikes. A self-testing function simplifies maintenance and the optional remote test capability adds convenient operation. Engineered for easy installation, this LED high bay emergency battery comes with a built-in junction box and necessary accessories for a smooth setup.
Features
- Self-test capabilities
- Emergency power: 40W
- Discharge time: 90 minutes
- Recharge time: 24 hours
- Output voltage: 170 VDC
- Battery type: Li-ion
- Equipped with over-temperature, overcharge, and over-discharge protection for safe, reliable battery backup performance
- Has a 3kV line-neutral surge protection to safeguard the battery from voltage spikes
- Optional remote test function up to 98ft range
- Built-in integrated junction box
- Wire nuts, chain link connectors, M10 hanging hook and ring bolts, a safety rope, antenna, and remote included
- CEC Title 20 Compliant & UL certified
- 5-year manufacturer's warranty
Compatible Fixtures
| XS-HBG-240W-SCSDUVG | XS-HBG-320W-SCSDUVG |
| XS-HBF-24065W-4050K-80LV-C | XS-HBF-310W-4050K-80LV-C-WH |
Details
EMERGENCY PACK

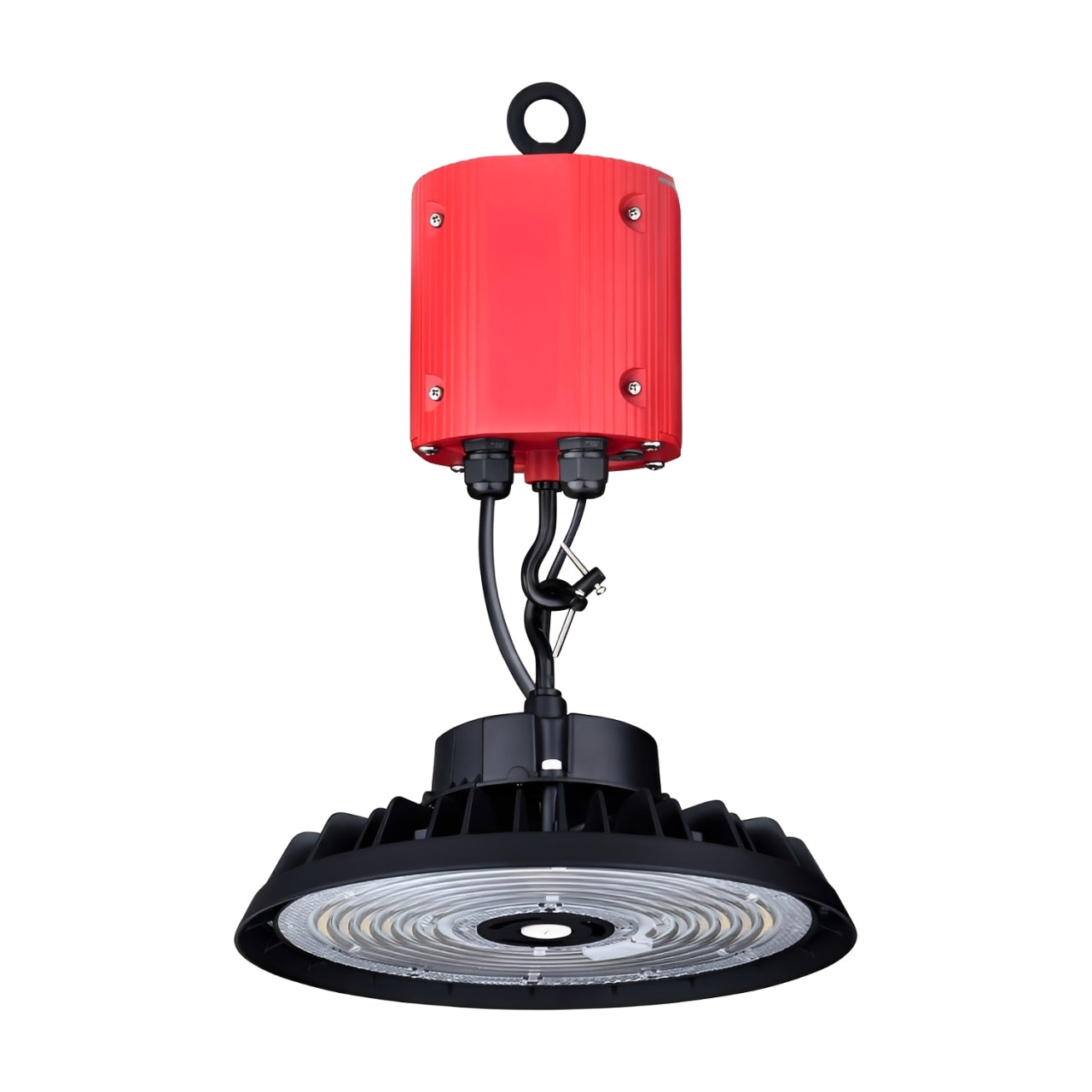

The 40W Emergency Battery allows up to 90min of extra light in case of power outage. This emergency LED driver works with UFO high bay light fixtures to provide added safety features for residential and commercial spaces.
SELF-TEST FEATURE
Enjoy added peace of mind with the built-in self-testing feature, complete with a physical button and side-mounted indicator to ensure your unit is always ready when you need it most.
BENEFITS
5-year manufacturer's warranty. Sunco is proudly based in the USA, offering quality products at affordable prices backed by industry-leading warranties and knowledgeable support specialists.
CERTIFICATIONS
We uphold the highest standards by testing each product for optimal performance and safety. This LED emergency battery backup is CEC Title 20 Compliant & UL certified.
Specifications
| Emergency Battery, 40W/90 Min, 170 VDC Output, UFO High Bay LED Fixtures Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Wattage | 40W |
| Voltage | 100-347V |
| Output Voltage | 170 VDC |
| Operating Temperature | 32°F to 122°F |
| Moisture Rating | Wet Rated |

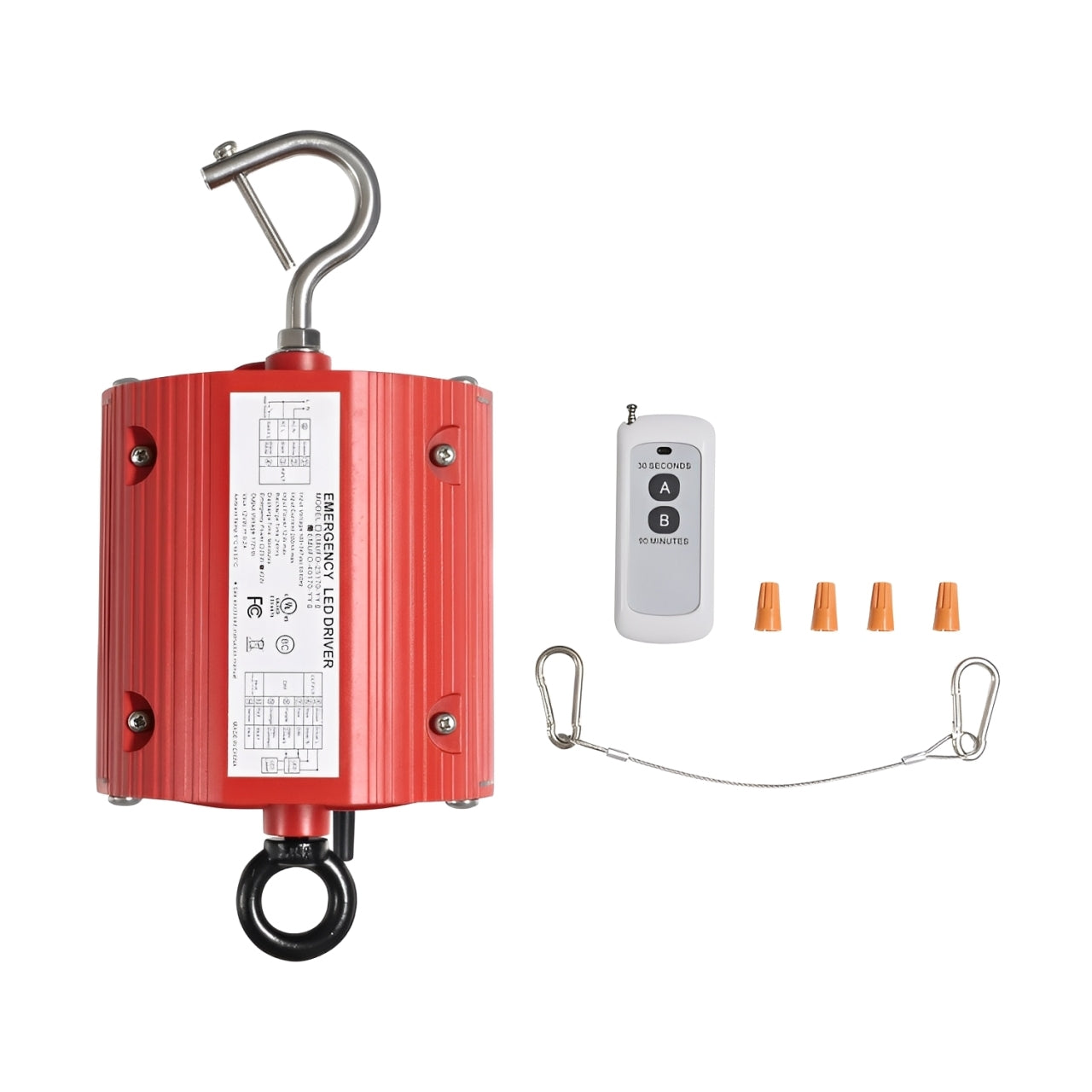

| Included Components | 11x Wire Nuts, 2x Chain Link Connectors, 1x M10 Hanging Hook Bolt, 1x M10 Hanging Ring Bolt, 1x Safety Rope, 1x Antenna, & 1x Remote |
| Battery Type | Lithium Ion/Li-ion |
| Backup Light Details | ~90-minutes |
| Charging Time | 24 Hours |
| Certifications | CEC Title 20 Compliant, UL |
| Warranty | 5-Year Manufacturer's Warranty |
