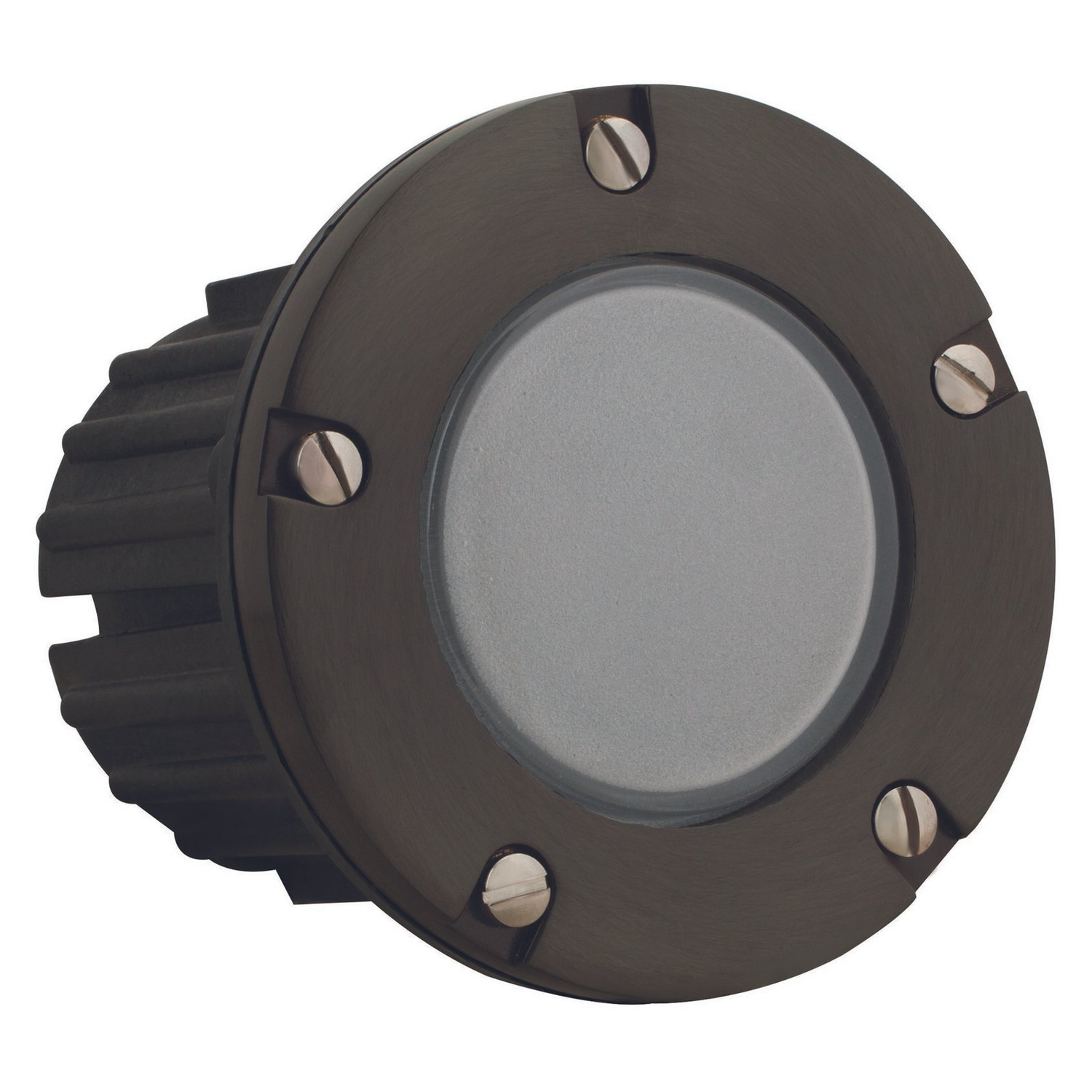

Brass Glass Lens Step Light, In-Ground, 5 Inch, Gun Metal, 15° Narrow Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Architectural step and brick light with die-cast brass faceplate and injection composite fiberglass housing with high UV stability
- Frosted heat-resistant flat glass lens with silicone O-ring seal securing the faceplate to the housing
- Includes MR16 COB LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 15° narrow spot beam, dimmable, 50,000-hour rated life, 77.1 Lumens/W efficacy
- 12V MR16 socket accepts lamps up to 50W; requires a remote 12V transformer
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8 Inch Dia x 4-5/8 Inch L
- Gun Metal finish with natural toning that will vary
- Warranty: limited lifetime on brass faceplate; LED lamps carry a 5-year warranty
- ETL listed
This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Architectural step and brick light with die-cast brass faceplate and injection composite fiberglass housing with high UV stability
- Frosted heat-resistant flat glass lens with silicone O-ring seal securing the faceplate to the housing
- Includes MR16 COB LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 15° narrow spot beam, dimmable, 50,000-hour rated life, 77.1 Lumens/W efficacy
- 12V MR16 socket accepts lamps up to 50W; requires a remote 12V transformer
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8 Inch Dia x 4-5/8 Inch L
- Gun Metal finish with natural toning that will vary
- Warranty: limited lifetime on brass faceplate; LED lamps carry a 5-year warranty
- ETL listed
Overview
This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Architectural step and brick light with die-cast brass faceplate and injection composite fiberglass housing with high UV stability
- Frosted heat-resistant flat glass lens with silicone O-ring seal securing the faceplate to the housing
- Includes MR16 COB LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 15° narrow spot beam, dimmable, 50,000-hour rated life, 77.1 Lumens/W efficacy
- 12V MR16 socket accepts lamps up to 50W; requires a remote 12V transformer
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8 Inch Dia x 4-5/8 Inch L
- Gun Metal finish with natural toning that will vary
- Warranty: limited lifetime on brass faceplate; LED lamps carry a 5-year warranty
- ETL listed
Specifications
| Brass Glass Lens Step Light, In-Ground, 5 Inch, Gun Metal, 15° Narrow Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Gun Metal |
| Material | die-cast brass faceplate; injection composite fiberglass housing |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on die-cast brass faceplate; composite fiberglass housing per manufacturer terms; LED lamps carry a five-year limited warranty |
