316 Marine-Grade Stainless Steel Hooded Glass Lens Round Step Light, In-Ground, 5 Inch, 45° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

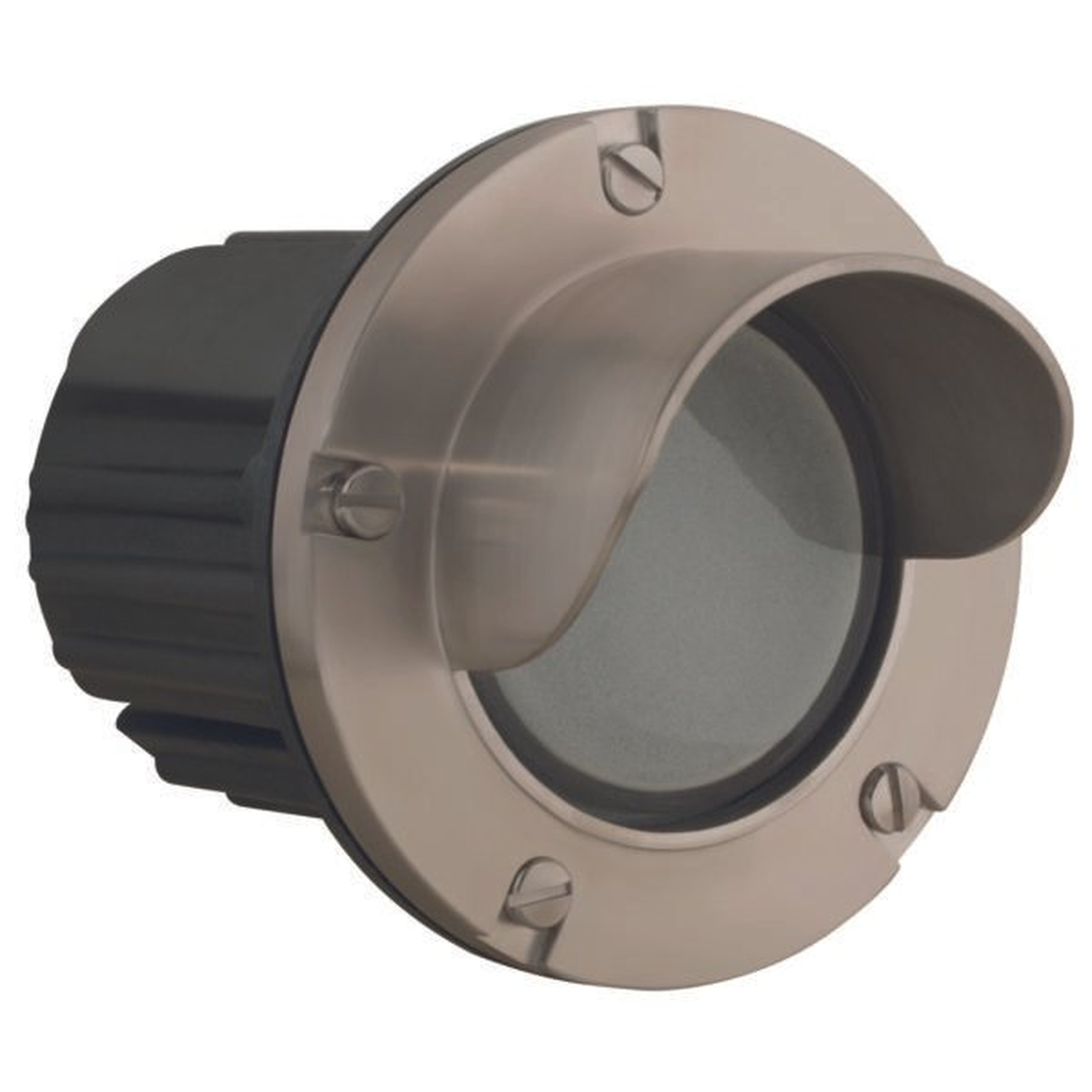

This 316 Marine-Grade Stainless Steel hooded round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 45° Wide Beam Angle.
Features
-
- 316 marine-grade stainless steel faceplate for corrosion resistance and coastal use
- Injection-molded composite housing with high UV stability for long outdoor life
- Frosted heat-resistant flat glass lens with silicone O-ring gasket for sealed performance
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 45° beam angle, 50,000-hour rated lifespan
- Adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt for precise aiming
- Operates on 9–17V with LED lamps; remote 12V transformer required
- Prewired with 3 ft 18-2 direct-burial cord
- Surface mount supplied
- Designed for recessed wall installation or in-ground/concrete encasement
- Faceplate approx 4-7/8 Inch Dia; overall length approx 6-1/8 Inch
- Limited lifetime warranty on stainless steel faceplate
- 5-year manufacturer's warranty for lamps
This 316 Marine-Grade Stainless Steel hooded round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 45° Wide Beam Angle.
Features
-
- 316 marine-grade stainless steel faceplate for corrosion resistance and coastal use
- Injection-molded composite housing with high UV stability for long outdoor life
- Frosted heat-resistant flat glass lens with silicone O-ring gasket for sealed performance
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 45° beam angle, 50,000-hour rated lifespan
- Adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt for precise aiming
- Operates on 9–17V with LED lamps; remote 12V transformer required
- Prewired with 3 ft 18-2 direct-burial cord
- Surface mount supplied
- Designed for recessed wall installation or in-ground/concrete encasement
- Faceplate approx 4-7/8 Inch Dia; overall length approx 6-1/8 Inch
- Limited lifetime warranty on stainless steel faceplate
- 5-year manufacturer's warranty for lamps
Overview
This 316 Marine-Grade Stainless Steel hooded round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 45° Wide Beam Angle.
Features
-
- 316 marine-grade stainless steel faceplate for corrosion resistance and coastal use
- Injection-molded composite housing with high UV stability for long outdoor life
- Frosted heat-resistant flat glass lens with silicone O-ring gasket for sealed performance
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 45° beam angle, 50,000-hour rated lifespan
- Adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt for precise aiming
- Operates on 9–17V with LED lamps; remote 12V transformer required
- Prewired with 3 ft 18-2 direct-burial cord
- Surface mount supplied
- Designed for recessed wall installation or in-ground/concrete encasement
- Faceplate approx 4-7/8 Inch Dia; overall length approx 6-1/8 Inch
- Limited lifetime warranty on stainless steel faceplate
- 5-year manufacturer's warranty for lamps
Specifications
| 316 Marine-Grade Stainless Steel Hooded Glass Lens Round Step Light, In-Ground, 5 Inch, 45° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 45° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | Faceplate Approx. 4-7/8" Dia., overall L Approx. 6-1/8" |
| Finish | Stainless Steel |
| Material | 316 marine grade stainless steel faceplate; injection-molded composite housing; frosted heat-resistant flat glass lens |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on stainless steel fixture housing, Five (5) years limited warranty on LED module |
