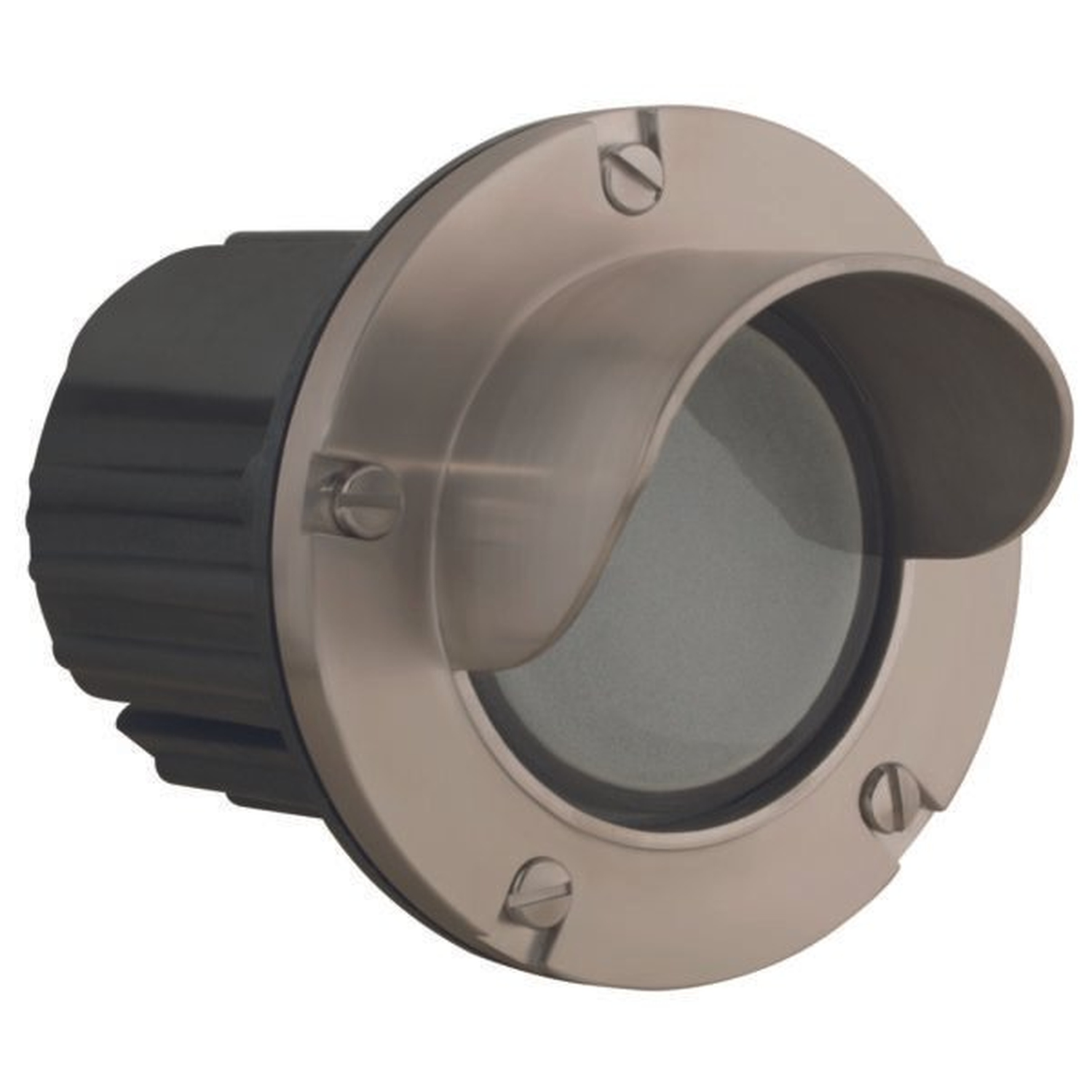

316 Marine-Grade Stainless Steel Hooded Glass Lens Round Step Light, In-Ground, 5 Inch, 15° Narrow Beam Angle, 450 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This 316 Marine-Grade Stainless Steel hooded round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 5W MR16 COB LED lamp delivers 450 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- 316 marine-grade stainless steel faceplate with injection-molded composite housing for high UV stability
- Frosted heat-resistant flat glass lens with silicone O-ring gasket for weather protection
- Adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt for precise aiming
- Bundled MR16 LED lamp: 5W, 450 Lumens, 2700K, CRI 80, 15° spot beam, 50,000-hour rated lifespan
- Operates on 9–17V with LED lamps; requires a remote 12V transformer
- Supplied for surface mount; prewired with 3 ft 18-2 direct-burial cord for straightforward installation
- Designed for recessed wall installation, in-ground direct burial, or concrete encasement
- Dimensions: faceplate approx 4-7/8" Dia; overall length approx 6-1/8"
- Limited lifetime warranty on stainless steel faceplate, ten years on housing, and 5-year manufacturer's warranty on lamp
This 316 Marine-Grade Stainless Steel hooded round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 5W MR16 COB LED lamp delivers 450 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- 316 marine-grade stainless steel faceplate with injection-molded composite housing for high UV stability
- Frosted heat-resistant flat glass lens with silicone O-ring gasket for weather protection
- Adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt for precise aiming
- Bundled MR16 LED lamp: 5W, 450 Lumens, 2700K, CRI 80, 15° spot beam, 50,000-hour rated lifespan
- Operates on 9–17V with LED lamps; requires a remote 12V transformer
- Supplied for surface mount; prewired with 3 ft 18-2 direct-burial cord for straightforward installation
- Designed for recessed wall installation, in-ground direct burial, or concrete encasement
- Dimensions: faceplate approx 4-7/8" Dia; overall length approx 6-1/8"
- Limited lifetime warranty on stainless steel faceplate, ten years on housing, and 5-year manufacturer's warranty on lamp
Overview
This 316 Marine-Grade Stainless Steel hooded round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 5W MR16 COB LED lamp delivers 450 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- 316 marine-grade stainless steel faceplate with injection-molded composite housing for high UV stability
- Frosted heat-resistant flat glass lens with silicone O-ring gasket for weather protection
- Adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt for precise aiming
- Bundled MR16 LED lamp: 5W, 450 Lumens, 2700K, CRI 80, 15° spot beam, 50,000-hour rated lifespan
- Operates on 9–17V with LED lamps; requires a remote 12V transformer
- Supplied for surface mount; prewired with 3 ft 18-2 direct-burial cord for straightforward installation
- Designed for recessed wall installation, in-ground direct burial, or concrete encasement
- Dimensions: faceplate approx 4-7/8" Dia; overall length approx 6-1/8"
- Limited lifetime warranty on stainless steel faceplate, ten years on housing, and 5-year manufacturer's warranty on lamp
Specifications
| 316 Marine-Grade Stainless Steel Hooded Glass Lens Round Step Light, In-Ground, 5 Inch, 15° Narrow Beam Angle, 450 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 450LM |
| Efficacy | 94LM/W |
| Wattage | 5W |
| Wattage Equivalency | 50W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | Faceplate Approx. 4-7/8" Dia. overall L Approx. 6-1/8" |
| Finish | Stainless Steel |
| Material | 316 marine grade stainless steel faceplate; injection-molded composite housing |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime on stainless steel faceplate; ten (10) years on housing; 5-Year Manufacturer's Warranty for the lamp |
