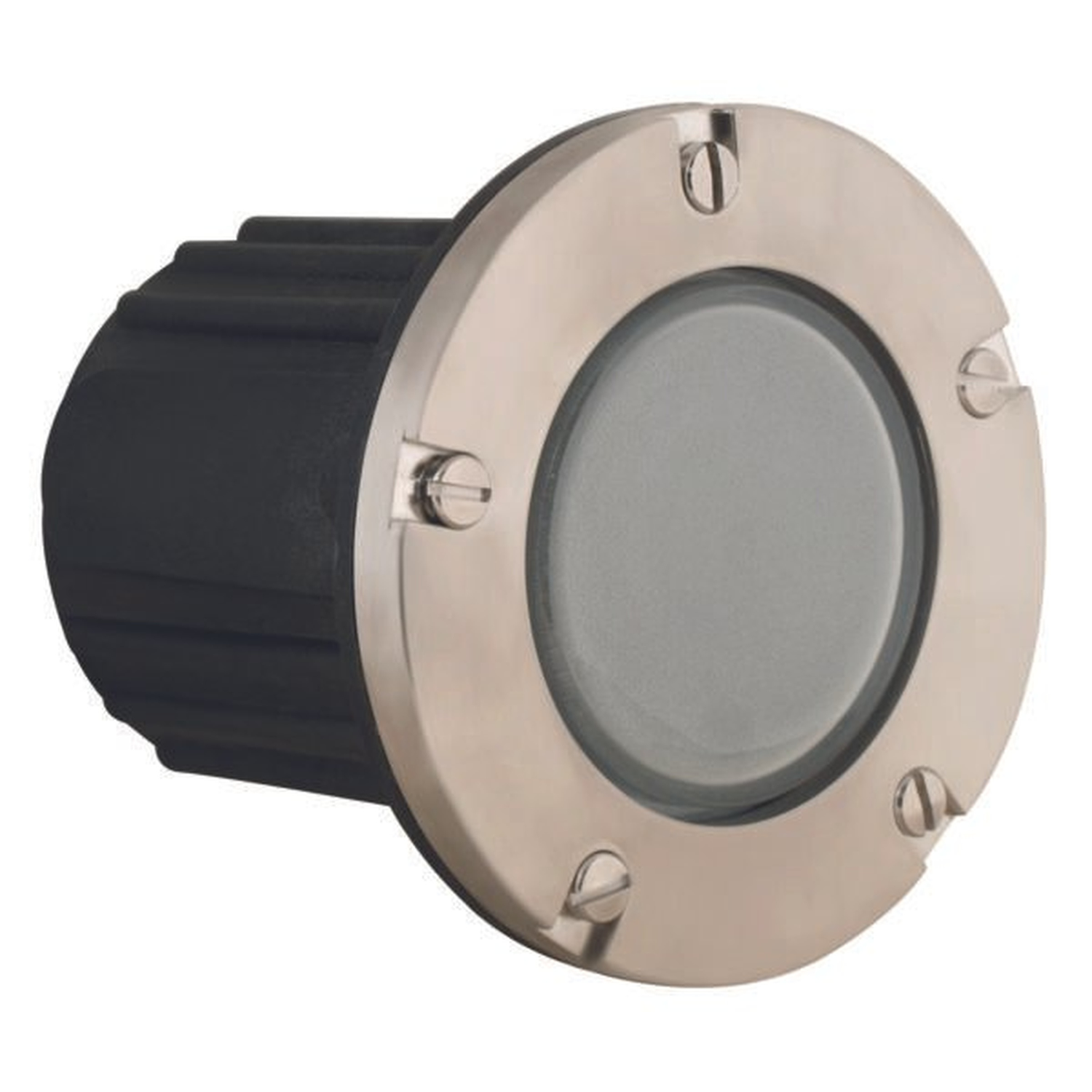

316 Marine-Grade Stainless Steel Glass Lens Round Step Light, In-Ground, 5 Inch, 15° Narrow Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This 316 Marine-Grade Stainless Steel lensed round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 5W MR16 LED lamp delivers 350 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- 316 marine-grade stainless steel faceplate; injection-molded composite housing with high UV stability
- Frosted, heat-resistant flat glass lens with silicone O-ring for a weather-tight seal
- Includes MR16 LED lamp: 5W, 350 Lumens, 2700K, 15° spot beam, 50,000-hour rated life
- Top-grade adjustable ceramic bi-pin socket with retention clip; socket tilts ±25° for precise aiming
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Wire connector sold separately
- Remote 12V transformer required; LED voltage range 9–17V
- Mounting: in-ground direct burial or concrete encasement; concrete pour kit CX-237 recommended
- Limited lifetime warranty on faceplate
- 10-year warranty on housing against defects
- 5-year manufacturer warranty on included lamp
This 316 Marine-Grade Stainless Steel lensed round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 5W MR16 LED lamp delivers 350 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- 316 marine-grade stainless steel faceplate; injection-molded composite housing with high UV stability
- Frosted, heat-resistant flat glass lens with silicone O-ring for a weather-tight seal
- Includes MR16 LED lamp: 5W, 350 Lumens, 2700K, 15° spot beam, 50,000-hour rated life
- Top-grade adjustable ceramic bi-pin socket with retention clip; socket tilts ±25° for precise aiming
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Wire connector sold separately
- Remote 12V transformer required; LED voltage range 9–17V
- Mounting: in-ground direct burial or concrete encasement; concrete pour kit CX-237 recommended
- Limited lifetime warranty on faceplate
- 10-year warranty on housing against defects
- 5-year manufacturer warranty on included lamp
Overview
This 316 Marine-Grade Stainless Steel lensed round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 5W MR16 LED lamp delivers 350 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- 316 marine-grade stainless steel faceplate; injection-molded composite housing with high UV stability
- Frosted, heat-resistant flat glass lens with silicone O-ring for a weather-tight seal
- Includes MR16 LED lamp: 5W, 350 Lumens, 2700K, 15° spot beam, 50,000-hour rated life
- Top-grade adjustable ceramic bi-pin socket with retention clip; socket tilts ±25° for precise aiming
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Wire connector sold separately
- Remote 12V transformer required; LED voltage range 9–17V
- Mounting: in-ground direct burial or concrete encasement; concrete pour kit CX-237 recommended
- Limited lifetime warranty on faceplate
- 10-year warranty on housing against defects
- 5-year manufacturer warranty on included lamp
Specifications
| 316 Marine-Grade Stainless Steel Glass Lens Round Step Light, In-Ground, 5 Inch, 15° Narrow Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 4-7/8" W x 4-5/8" H; Depth 3-1/2"; Trim 3/8" |
| Finish | Stainless Steel |
| Material | 316 marine grade stainless steel faceplate; injection molded composite housing |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on faceplate; ten year warranty on housing against defects. 5-Year manufacturer's warranty on included lamp |
