4-Louver Glass Lens Step Light, In-Ground, 5 Inch, Black, 60° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

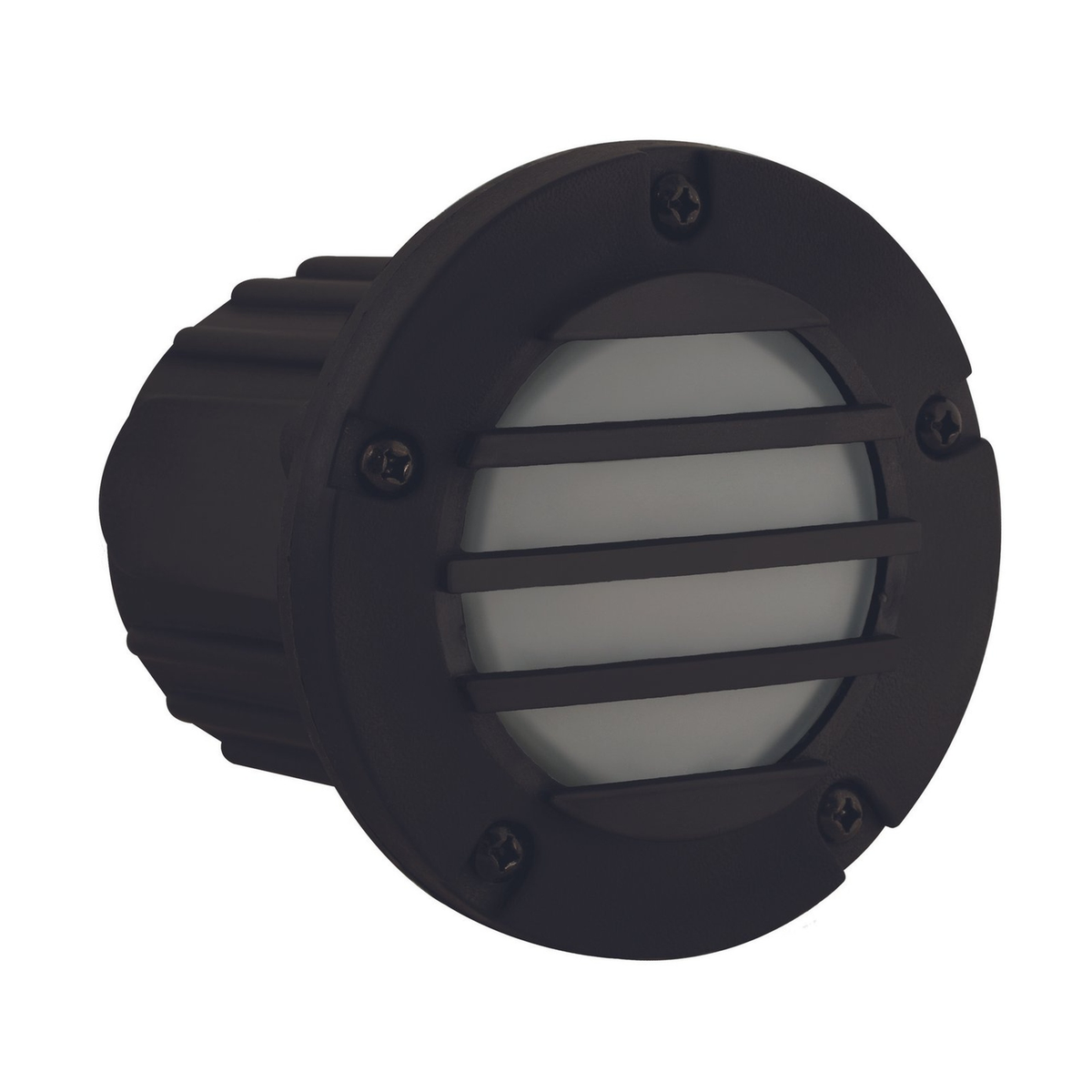

This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Louvered/hooded step and brick light with frosted, heat-resistant glass lens
- Injection-molded composite housing and composite faceplate for durable, weather-tight protection
- Includes MR16 LED lamp (WF): 3.5W, approx 270 Lumens, 2700K, 60° beam, dimmable, 50,000-hour life, approx 25W halogen equivalent
- Adjustable ceramic bi-pin socket with ±25° tilt and Teflon-jacketed leads; silicone O-ring gasket for seal
- Surface-mount, architectural grade

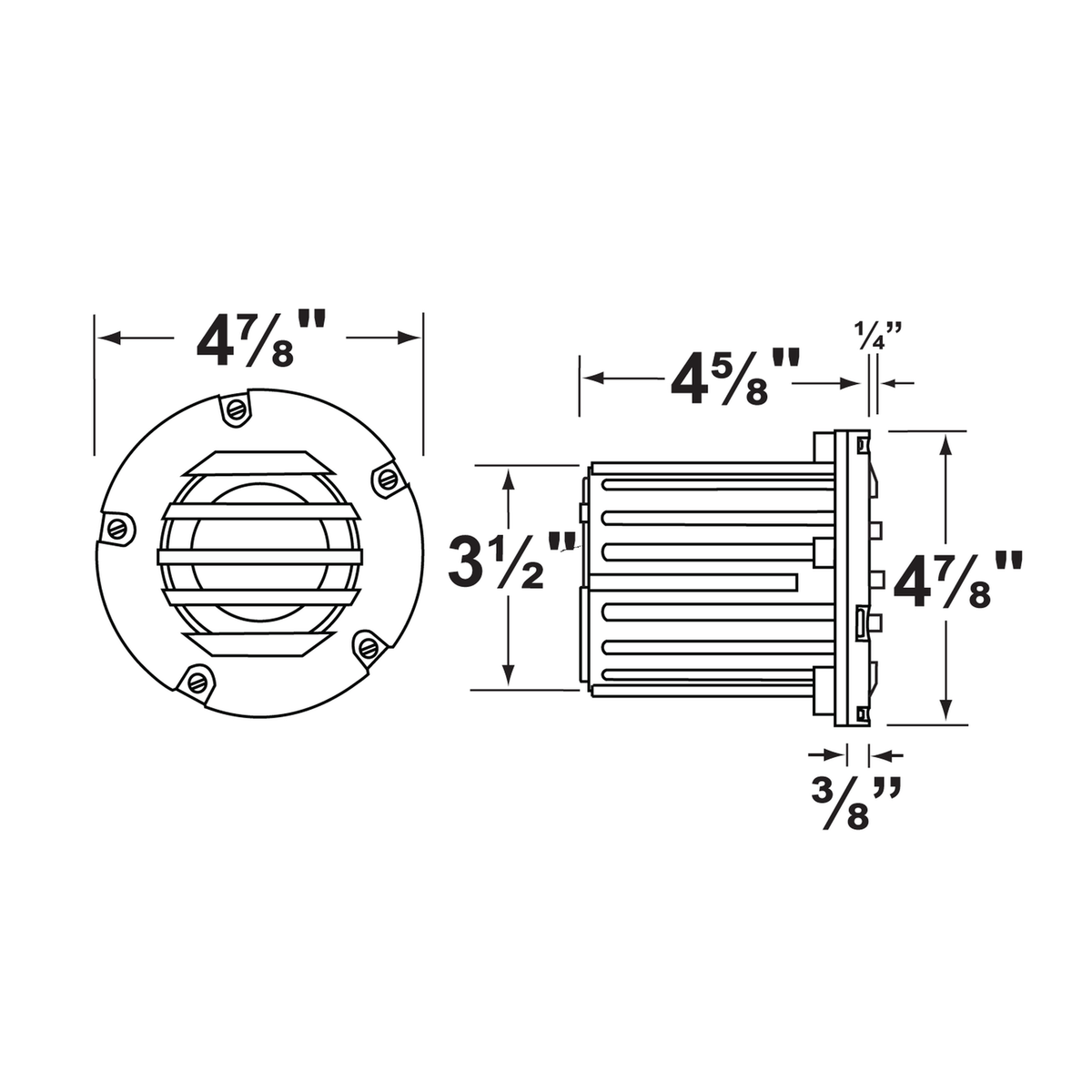

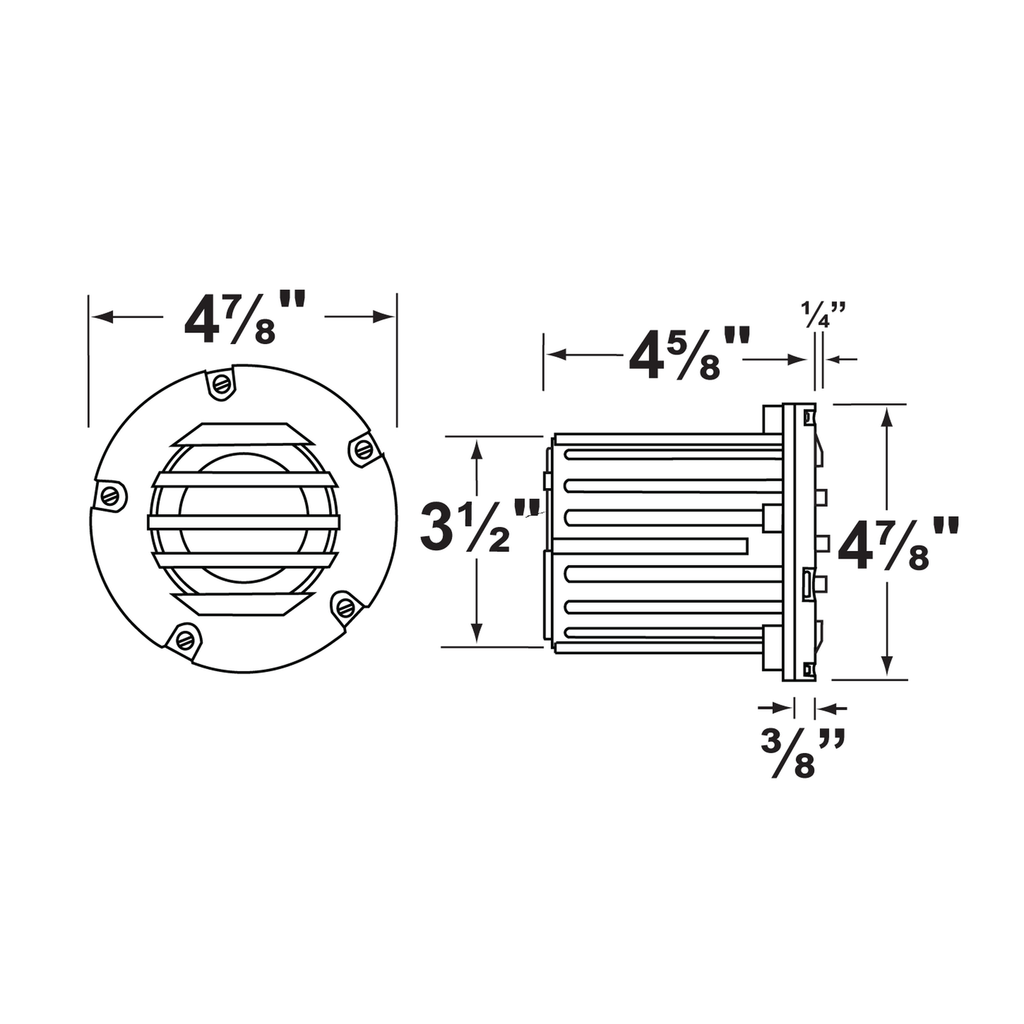

- Dimensions: 4-7/8" Dia x 6-1/8" L
- ETL listed
- Optional concrete pour kit CX-237 available
- Limited 10-year fixture warranty; 5-year LED lamp warranty
This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Louvered/hooded step and brick light with frosted, heat-resistant glass lens
- Injection-molded composite housing and composite faceplate for durable, weather-tight protection
- Includes MR16 LED lamp (WF): 3.5W, approx 270 Lumens, 2700K, 60° beam, dimmable, 50,000-hour life, approx 25W halogen equivalent
- Adjustable ceramic bi-pin socket with ±25° tilt and Teflon-jacketed leads; silicone O-ring gasket for seal
- Surface-mount, architectural grade
- Dimensions: 4-7/8" Dia x 6-1/8" L
- ETL listed
- Optional concrete pour kit CX-237 available
- Limited 10-year fixture warranty; 5-year LED lamp warranty
Overview
This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Louvered/hooded step and brick light with frosted, heat-resistant glass lens
- Injection-molded composite housing and composite faceplate for durable, weather-tight protection
- Includes MR16 LED lamp (WF): 3.5W, approx 270 Lumens, 2700K, 60° beam, dimmable, 50,000-hour life, approx 25W halogen equivalent
- Adjustable ceramic bi-pin socket with ±25° tilt and Teflon-jacketed leads; silicone O-ring gasket for seal
- Surface-mount, architectural grade
- Dimensions: 4-7/8" Dia x 6-1/8" L
- ETL listed
- Optional concrete pour kit CX-237 available
- Limited 10-year fixture warranty; 5-year LED lamp warranty
Specifications
| 4-Louver Glass Lens Step Light, In-Ground, 5 Inch, Black, 60° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 60° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 6-1/8" L |
| Finish | Black |
| Material | Composite |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited 10-year fixture warranty, 5-year LED lamp warranty |
