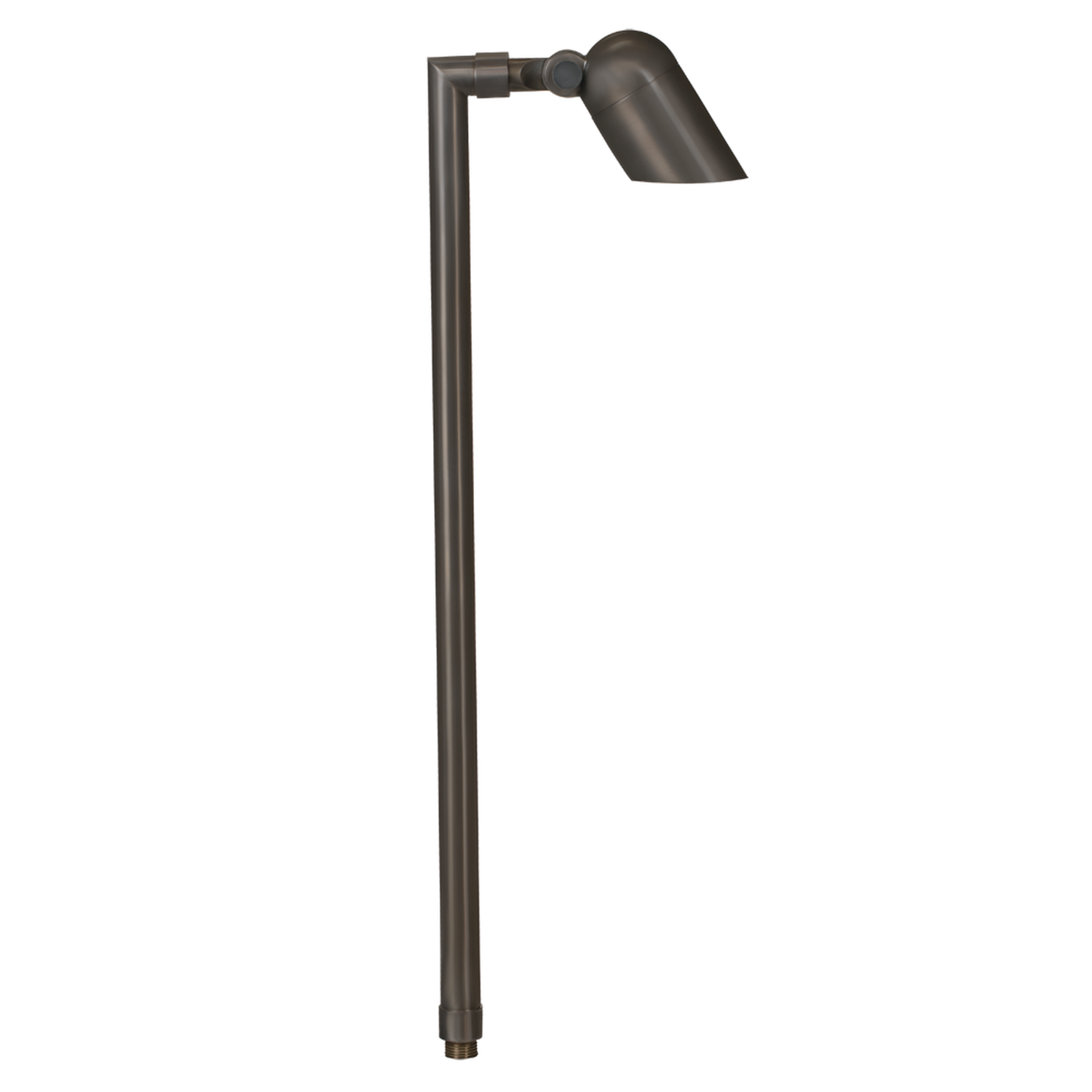

Brass Mini Single Head Path Light, 24 Inch Stem, Gun Metal, 60° Wide Beam Angle, 450 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This mini single-head low-voltage path light features a corrosion-resistant cast brass housing and an adjustable cast brass knuckle for precise aiming, finished in Gun Metal. It includes an MR16 LED lamp delivering 5W and 450 Lumens at 2700K with a 60° wide-flood beam, a CRI of 80, and a 50,000-hour rated life. The head Dia. is 2.5", with an overall height of 24", a shroud length of approximately 4.75", and 5". The fixture is prewired with roughly 3 feet of 18-2 direct-burial cord and mounts on the supplied ground spike with a 1/2" NPT hub. Ideal for lining garden walkways and entry paths where guided foot traffic and ground-level illumination are essential after dark.
Features
-
- Corrosion-resistant cast brass housing and shroud for durable outdoor use
- Adjustable cast brass knuckle with thumb screw for precise aiming
- Solid brass stem and pipe with 1/2 Inch NPT bottom
- Silicone double-gasketed construction and clear heat-resistant convex glass lens for watertight sealing
- Included lamp: MR16 COB LED, 5W, 450 Lumens, 2700K, CRI 80, 60° wide flood beam, 50,000-hour rated life; operates 9–17V
- Top-grade fixed ceramic MR16 bi-pin socket with retention clip
- Low-voltage 12V system requires remote transformer
- Prewired with approximately 3 ft of 18-2 SPT2-W direct-burial cord
- Mounting supplied: standard injection-molded ground spike with 1/2 Inch NPT threaded female hub
- Dimensions: 24 Inch stem; overall height 24 Inch; head Dia 2.5 Inch
- Shroud length approx. 4.75 Inch; additional listed dimensions: 2 Inch and 8.5 Inch
- ETL listed
This mini single-head low-voltage path light features a corrosion-resistant cast brass housing and an adjustable cast brass knuckle for precise aiming, finished in Gun Metal. It includes an MR16 LED lamp delivering 5W and 450 Lumens at 2700K with a 60° wide-flood beam, a CRI of 80, and a 50,000-hour rated life. The head Dia. is 2.5", with an overall height of 24", a shroud length of approximately 4.75", and 5". The fixture is prewired with roughly 3 feet of 18-2 direct-burial cord and mounts on the supplied ground spike with a 1/2" NPT hub. Ideal for lining garden walkways and entry paths where guided foot traffic and ground-level illumination are essential after dark.
Features
-
- Corrosion-resistant cast brass housing and shroud for durable outdoor use
- Adjustable cast brass knuckle with thumb screw for precise aiming
- Solid brass stem and pipe with 1/2 Inch NPT bottom
- Silicone double-gasketed construction and clear heat-resistant convex glass lens for watertight sealing
- Included lamp: MR16 COB LED, 5W, 450 Lumens, 2700K, CRI 80, 60° wide flood beam, 50,000-hour rated life; operates 9–17V
- Top-grade fixed ceramic MR16 bi-pin socket with retention clip
- Low-voltage 12V system requires remote transformer
- Prewired with approximately 3 ft of 18-2 SPT2-W direct-burial cord
- Mounting supplied: standard injection-molded ground spike with 1/2 Inch NPT threaded female hub
- Dimensions: 24 Inch stem; overall height 24 Inch; head Dia 2.5 Inch
- Shroud length approx. 4.75 Inch; additional listed dimensions: 2 Inch and 8.5 Inch
- ETL listed
Overview
This mini single-head low-voltage path light features a corrosion-resistant cast brass housing and an adjustable cast brass knuckle for precise aiming, finished in Gun Metal. It includes an MR16 LED lamp delivering 5W and 450 Lumens at 2700K with a 60° wide-flood beam, a CRI of 80, and a 50,000-hour rated life. The head Dia. is 2.5", with an overall height of 24", a shroud length of approximately 4.75", and 5". The fixture is prewired with roughly 3 feet of 18-2 direct-burial cord and mounts on the supplied ground spike with a 1/2" NPT hub. Ideal for lining garden walkways and entry paths where guided foot traffic and ground-level illumination are essential after dark.
Features
-
- Corrosion-resistant cast brass housing and shroud for durable outdoor use
- Adjustable cast brass knuckle with thumb screw for precise aiming
- Solid brass stem and pipe with 1/2 Inch NPT bottom
- Silicone double-gasketed construction and clear heat-resistant convex glass lens for watertight sealing
- Included lamp: MR16 COB LED, 5W, 450 Lumens, 2700K, CRI 80, 60° wide flood beam, 50,000-hour rated life; operates 9–17V
- Top-grade fixed ceramic MR16 bi-pin socket with retention clip
- Low-voltage 12V system requires remote transformer
- Prewired with approximately 3 ft of 18-2 SPT2-W direct-burial cord
- Mounting supplied: standard injection-molded ground spike with 1/2 Inch NPT threaded female hub
- Dimensions: 24 Inch stem; overall height 24 Inch; head Dia 2.5 Inch
- Shroud length approx. 4.75 Inch; additional listed dimensions: 2 Inch and 8.5 Inch
- ETL listed
Specifications
| Brass Mini Single Head Path Light, 24 Inch Stem, Gun Metal, 60° Wide Beam Angle, 450 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 450LM |
| Efficacy | 94LM/W |
| Wattage | 5W |
| Wattage Equivalency | 50W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80.0+ |
| Beam Angle | 60° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Ground Spike |
| Dimensions | Head Dia. 2.5"; Stem 24"; Overall H 24"; Shroud L approx. 4.75" |
| Finish | Gun Metal |
| Material | Corrosion-resistant cast brass |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing, Five (5) years warranty on LED module |
