Siemens BoltShield surge protective device, product label detail, image 1

Siemens Boltshield 100kA Single-Phase Type-2 Surge Protective Device

120/240V

$199.99

Siemens Boltshield 100kA Single-Phase Type-2 Surge Protective Device

SKU:

$199.99

Bulk Savings

automatically applied on carts over $500 - Learn more

Commercial order support

Volume discounts automatically apply at checkout when the combined total value of all products in your cart exceeds $500.

Please provide the SKU and quantity for each item you’d like included in the quote.

Automatic volume discounts

Volume discount savings by cart subtotal
SPEND	SAVE
$500 - $999	5%
$1,000 - $1,999	11%
$2,000 - $2,999	12%
$3,000 - $3,999	13%
$4,000 - $4,999	14%
$5,000 - $5,999	15%
$6,000 - $6,999	16%
$7,000 - $7,999	17%
$8,000 - $8,999	18%
$9,000 - $9,999	19%
$10,000 - $19,999	20%
$20,000 - $49,999	25%
Over $50,000	30%

*Discounts apply to all products; rates may vary by product.

Live Chat

Free Shipping on orders $100+
Ships within 1 business day

Overview

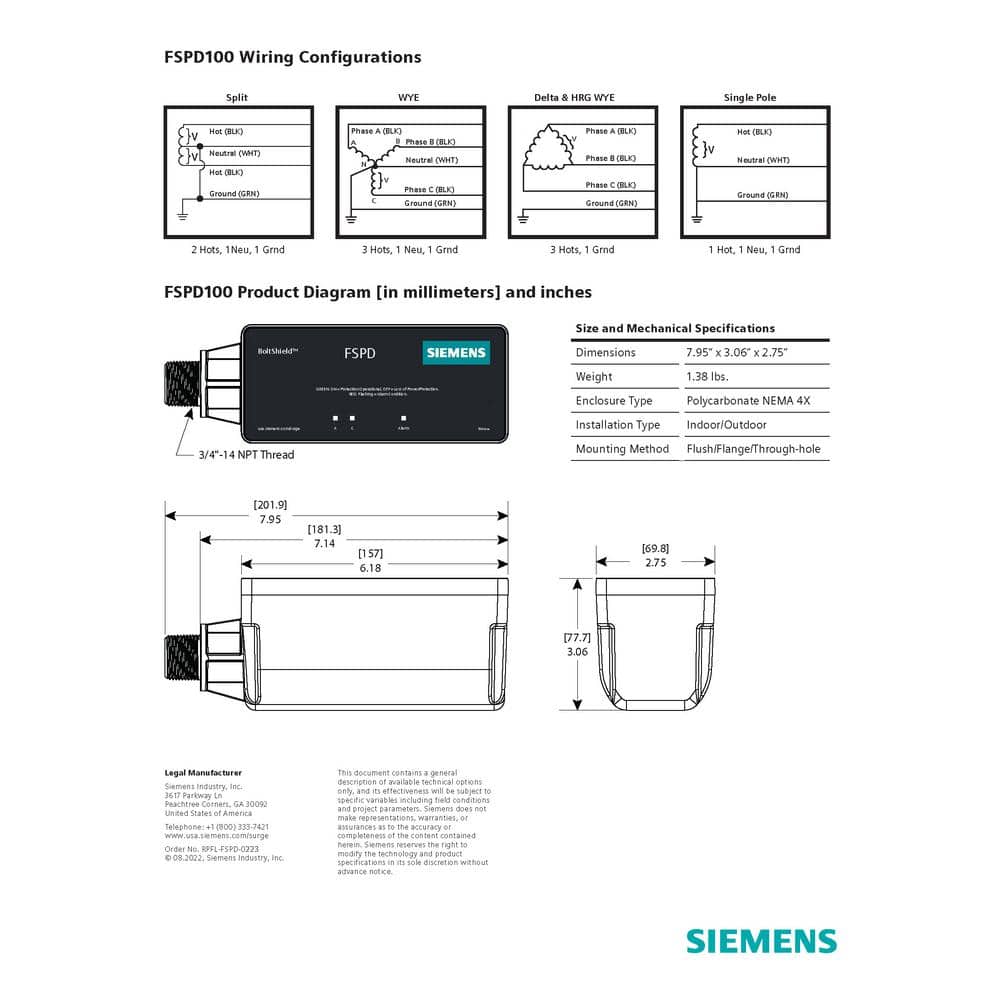

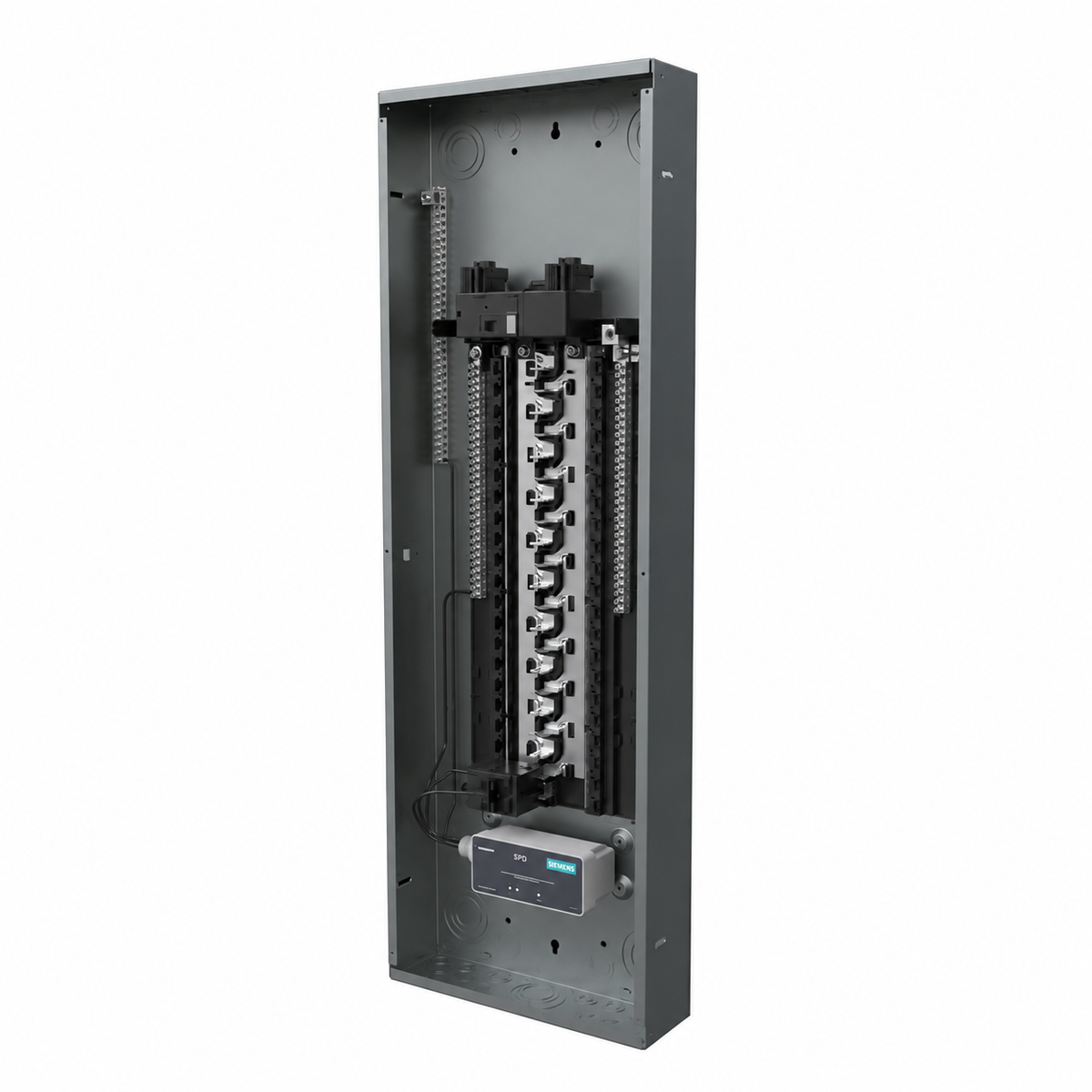

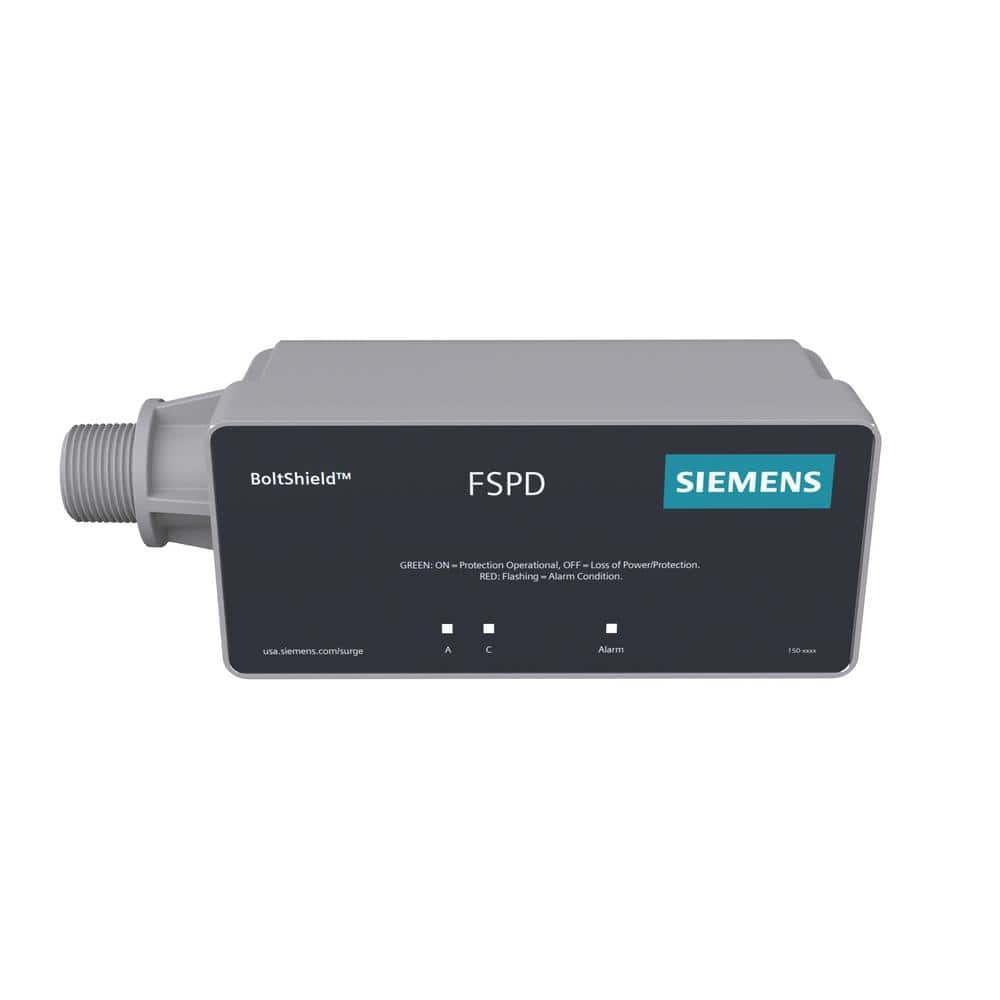

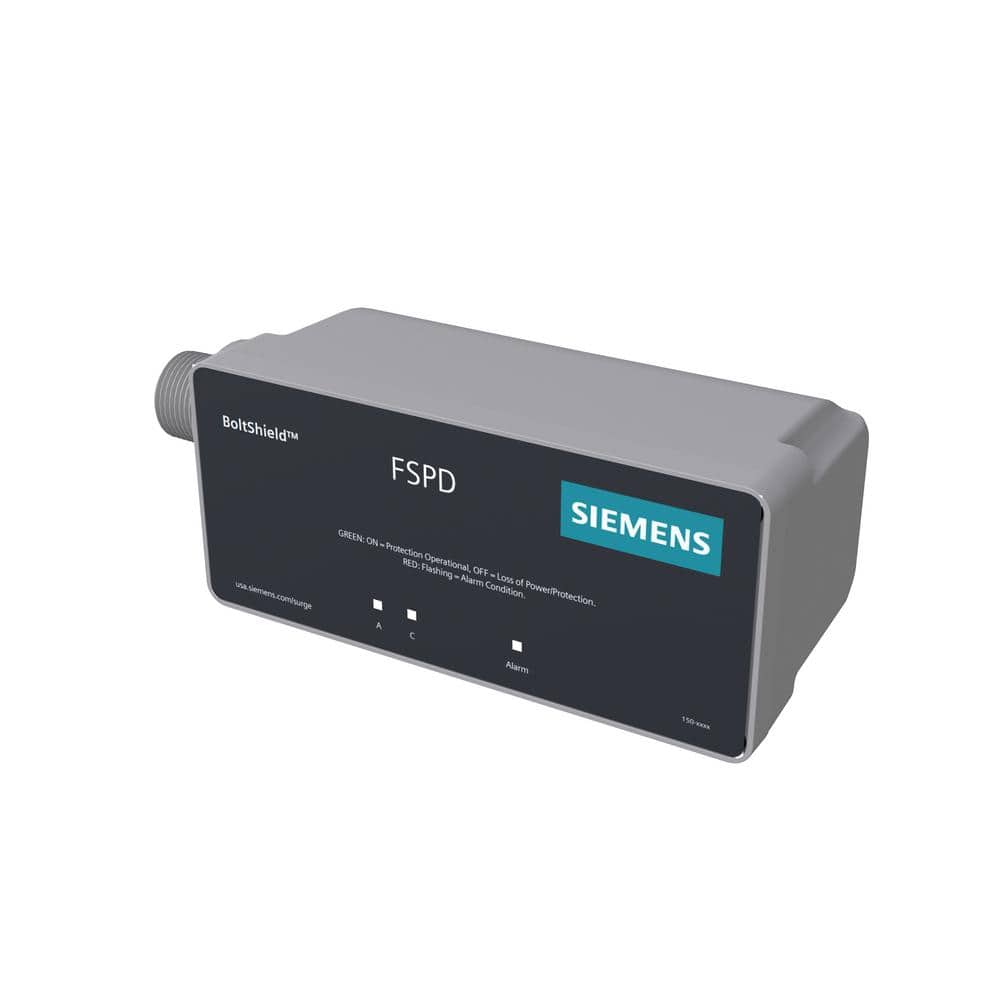

The Siemens BoltShield FSPD100 is a 100kA Single-Phase Type 2 Surge Protective Device built for whole-home protection at any brand 120/240V residential load center. Housed in a rugged NEMA 4X polycarbonate enclosure rated for indoor and outdoor installation, it provides all modes of protection (L-N, L-G, N-G) with thermally protected MOVs and standard UL 1283 filtering. Three green status LEDs, a red fault LED, an audible alarm, and a Form C dry contact deliver continuous protection monitoring. UL 1449 5th Edition listed, cULus certified, and compliant with 2020 and 2023 NEC surge requirements.

Features

- Surge Current Rating: 100 kA
- Interrupting Rating: 100 kA
- Model Number: FSPD100
- Compatible with any brand 120/240V residential load center
- Let's you know you are protected via LED's and audible alarm
- Meets 2020 NEC and 2023 NEC surge requirements
- Brand: Siemens

Overview

The Siemens BoltShield FSPD100 is a 100kA Single-Phase Type 2 Surge Protective Device built for whole-home protection at any brand 120/240V residential load center. Housed in a rugged NEMA 4X polycarbonate enclosure rated for indoor and outdoor installation, it provides all modes of protection (L-N, L-G, N-G) with thermally protected MOVs and standard UL 1283 filtering. Three green status LEDs, a red fault LED, an audible alarm, and a Form C dry contact deliver continuous protection monitoring. UL 1449 5th Edition listed, cULus certified, and compliant with 2020 and 2023 NEC surge requirements.

Features

- Surge Current Rating: 100 kA
- Interrupting Rating: 100 kA
- Model Number: FSPD100
- Compatible with any brand 120/240V residential load center
- Let's you know you are protected via LED's and audible alarm
- Meets 2020 NEC and 2023 NEC surge requirements
- Brand: Siemens
