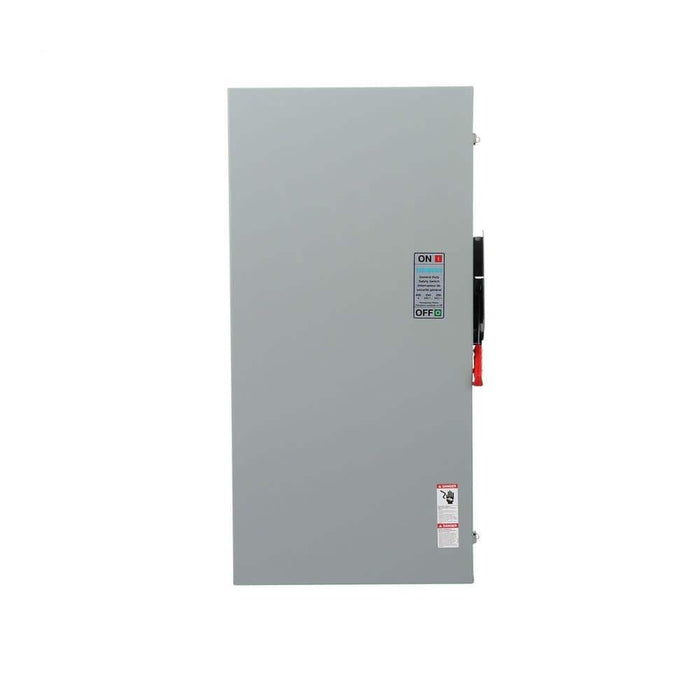

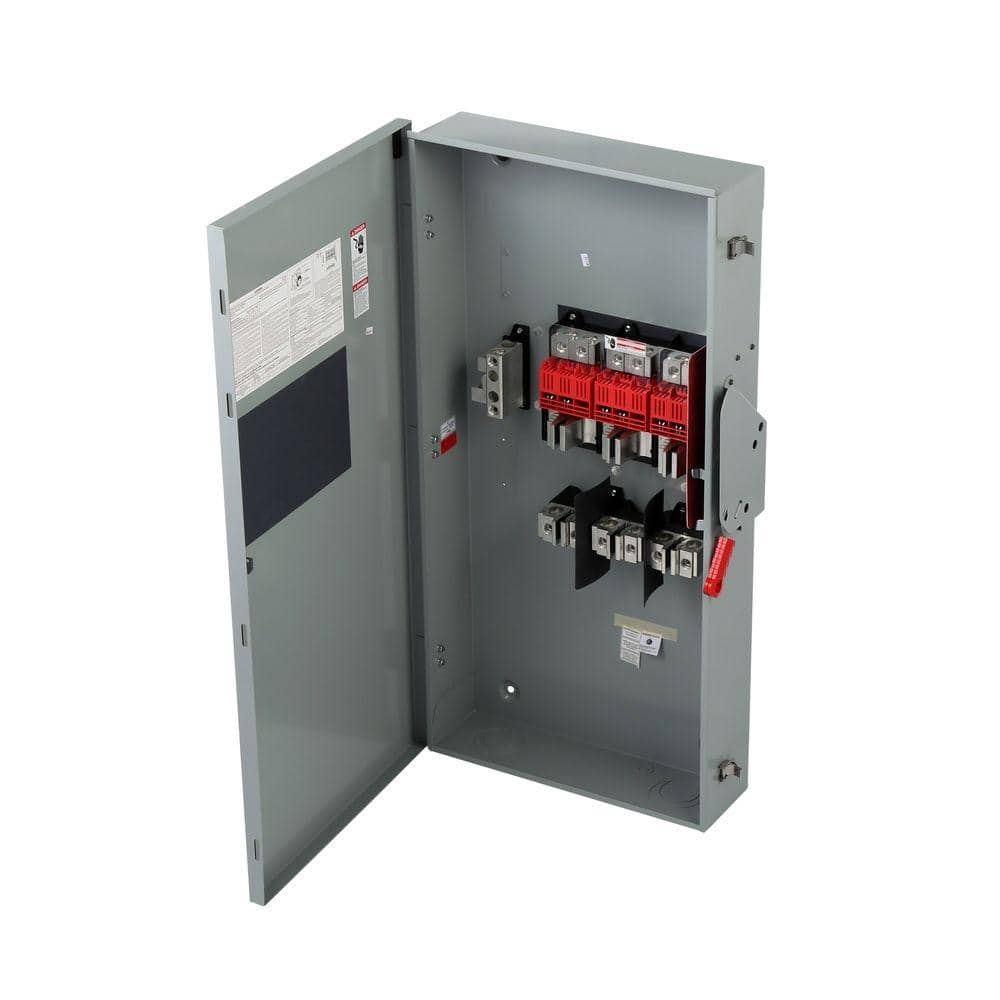

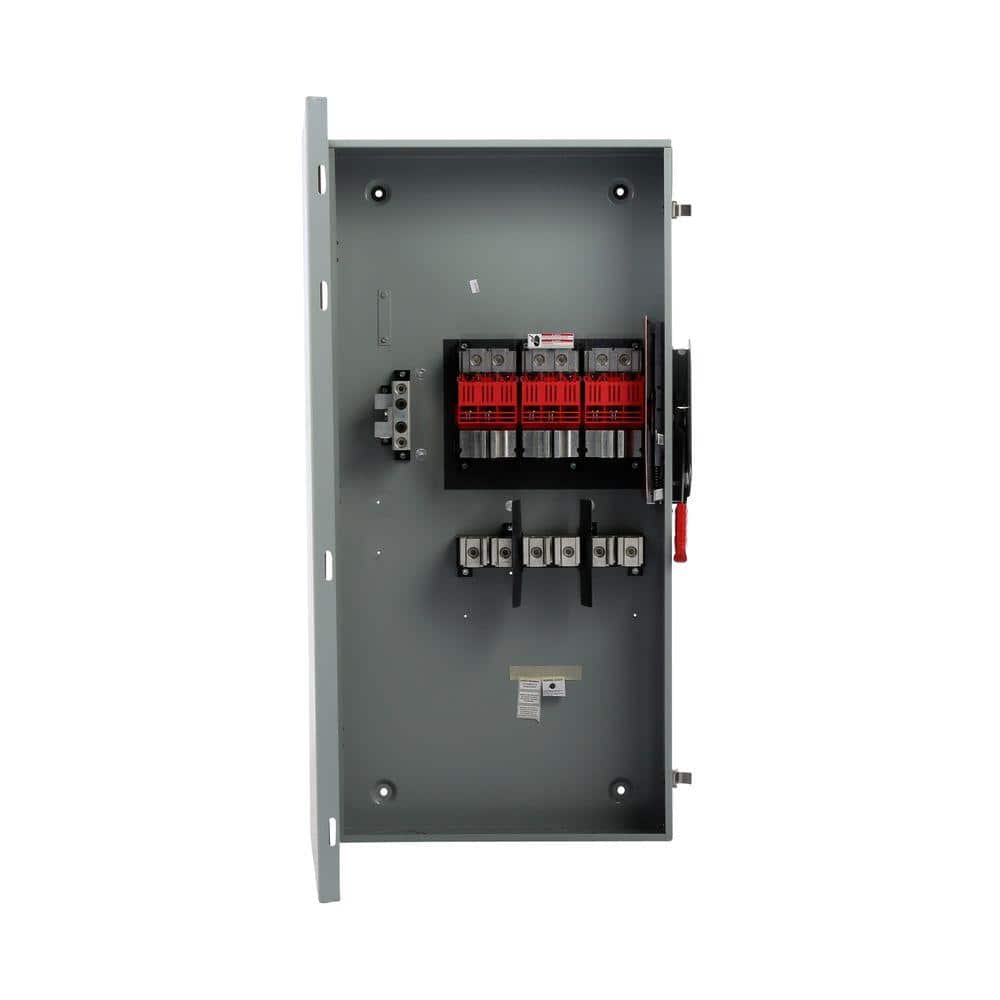

Siemens General Duty 400 Amp 240-Volt 3-Pole Outdoor Fusible Safety Switch

240V

$1,397.62

Siemens General Duty 400 Amp 240-Volt 3-Pole Outdoor Fusible Safety Switch

SKU:

$1,397.62

Bulk Savings

automatically applied on carts over $500 - Learn more

Commercial order support

Volume discounts automatically apply at checkout when the combined total value of all products in your cart exceeds $500.

Please provide the SKU and quantity for each item you’d like included in the quote.

Automatic volume discounts

Volume discount savings by cart subtotal
SPEND	SAVE
$500 - $999	5%
$1,000 - $1,999	11%
$2,000 - $2,999	12%
$3,000 - $3,999	13%
$4,000 - $4,999	14%
$5,000 - $5,999	15%
$6,000 - $6,999	16%
$7,000 - $7,999	17%
$8,000 - $8,999	18%
$9,000 - $9,999	19%
$10,000 - $19,999	20%
$20,000 - $49,999	25%
Over $50,000	30%

*Discounts apply to all products; rates may vary by product.

Live Chat

Free Shipping on orders $100+
Ships within 1 business day

Overview

The Siemens GF325NRA is a General Duty fusible safety switch rated 400A at 240V AC in a NEMA Type 3R outdoor enclosure. Its 3-pole, 3-fuse configuration with solid neutral is Service Entrance labeled, making it suitable as a main disconnect for residential and light commercial supply circuits rated 240V AC or less. Horsepower ratings cover 1-PH 2-W (15 HP std fused), 3-PH 3-W (50 HP std / 125 HP time-delay fused), and 250V DC (50 HP). Manufactured in Mexico.

Features

- Amperage: 400 Amp
- Number of Poles: 3
- Country of origin: Mexico
- Packaging dimensions (L x W x H): 6.693 x 22.047 x 45.276 inch
- Net weight: 94.583 lb
- Model Number: GF325NRA
- Feature: Service Entrance labeled
- For use primarily with supply circuits rated 240V AC or less
- Use where reliable performance / continuity of service is needed

Overview

The Siemens GF325NRA is a General Duty fusible safety switch rated 400A at 240V AC in a NEMA Type 3R outdoor enclosure. Its 3-pole, 3-fuse configuration with solid neutral is Service Entrance labeled, making it suitable as a main disconnect for residential and light commercial supply circuits rated 240V AC or less. Horsepower ratings cover 1-PH 2-W (15 HP std fused), 3-PH 3-W (50 HP std / 125 HP time-delay fused), and 250V DC (50 HP). Manufactured in Mexico.

Features

- Amperage: 400 Amp
- Number of Poles: 3
- Country of origin: Mexico
- Packaging dimensions (L x W x H): 6.693 x 22.047 x 45.276 inch
- Net weight: 94.583 lb
- Model Number: GF325NRA
- Feature: Service Entrance labeled
- For use primarily with supply circuits rated 240V AC or less
- Use where reliable performance / continuity of service is needed

Specifications

Specifications
Brand	Siemens
Voltage	240 V
Number of Poles	3
Phase	1 Phase
NEMA Enclosure Rating	NEMA 3R
Certifications	ANSI Certified,UL Listed
Warranty	Standard Limited Warranty
