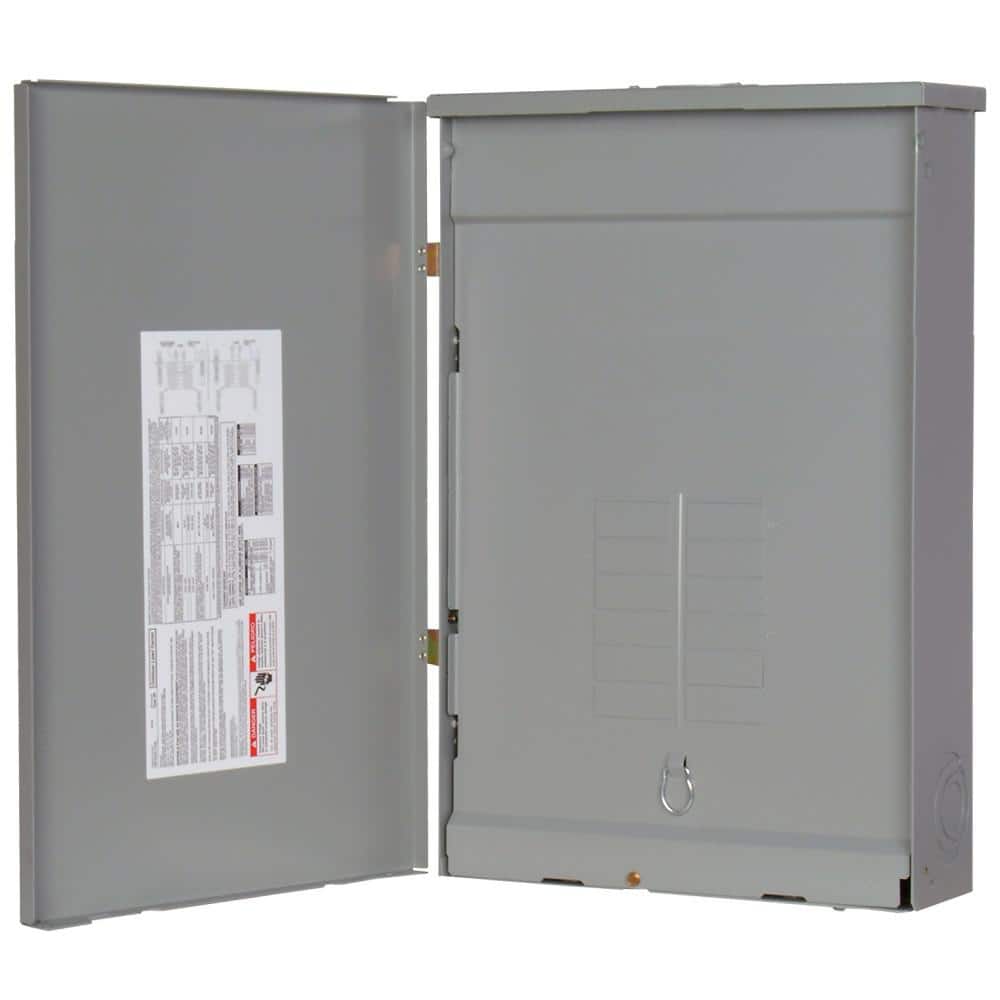

Siemens PN Series 200 Amp 12-Space 24-Circuit Main Lug Plug-On Neutral Load Center Outdoor with Copper Bus

120/240V

$186.42

Siemens PN Series 200 Amp 12-Space 24-Circuit Main Lug Plug-On Neutral Load Center Outdoor with Copper Bus

SKU:

$186.42

Bulk Savings

automatically applied on carts over $500 - Learn more

Commercial order support

Volume discounts automatically apply at checkout when the combined total value of all products in your cart exceeds $500.

Please provide the SKU and quantity for each item you’d like included in the quote.

Automatic volume discounts

Volume discount savings by cart subtotal
SPEND	SAVE
$500 - $999	5%
$1,000 - $1,999	11%
$2,000 - $2,999	12%
$3,000 - $3,999	13%
$4,000 - $4,999	14%
$5,000 - $5,999	15%
$6,000 - $6,999	16%
$7,000 - $7,999	17%
$8,000 - $8,999	18%
$9,000 - $9,999	19%
$10,000 - $19,999	20%
$20,000 - $49,999	25%
Over $50,000	30%

*Discounts apply to all products; rates may vary by product.

Live Chat

Free Shipping on orders $100+
Ships within 1 business day

Overview

The Siemens PNW1224L1200C is a PN Series main lug load center rated 200A at 120/240V, 1-phase, 3-wire with a 100 kAIC interrupting rating. It provides 12 one-inch spaces for up to 24 circuits on a copper bus bar and accepts plug-on neutral breakers for faster, cleaner installation. The grey trim NEMA Type 3R enclosure is built for outdoor use, and over 4 inches of wire bending space gives installers comfortable room to work. Manufactured in Mexico, it suits residential and light-commercial outdoor service entrances.

Features

- Maximum Amperage (amp): 200 amp
- Number of Spaces: 12
- Number of Circuits: 24
- Country of origin: Mexico
- Packaging dimensions (L x W x H): 61.00 x 38.00 x 12.00 cm
- Net weight: 12.14 Kg
- Model Number: PNW1224L1200C
- Simple - quicker breaker installation, wiring made easier
- Spacious - Over 4 in. of wire bending space

Overview

The Siemens PNW1224L1200C is a PN Series main lug load center rated 200A at 120/240V, 1-phase, 3-wire with a 100 kAIC interrupting rating. It provides 12 one-inch spaces for up to 24 circuits on a copper bus bar and accepts plug-on neutral breakers for faster, cleaner installation. The grey trim NEMA Type 3R enclosure is built for outdoor use, and over 4 inches of wire bending space gives installers comfortable room to work. Manufactured in Mexico, it suits residential and light-commercial outdoor service entrances.

Features

- Maximum Amperage (amp): 200 amp
- Number of Spaces: 12
- Number of Circuits: 24
- Country of origin: Mexico
- Packaging dimensions (L x W x H): 61.00 x 38.00 x 12.00 cm
- Net weight: 12.14 Kg
- Model Number: PNW1224L1200C
- Simple - quicker breaker installation, wiring made easier
- Spacious - Over 4 in. of wire bending space
