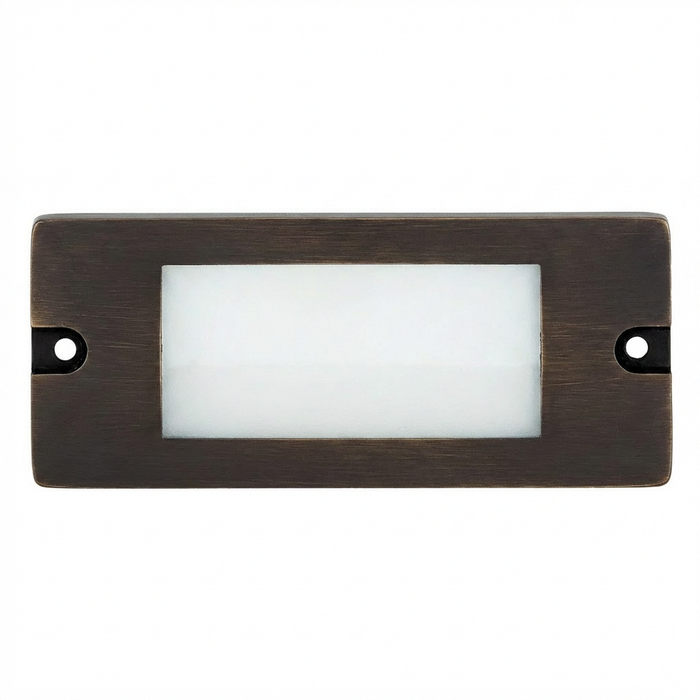

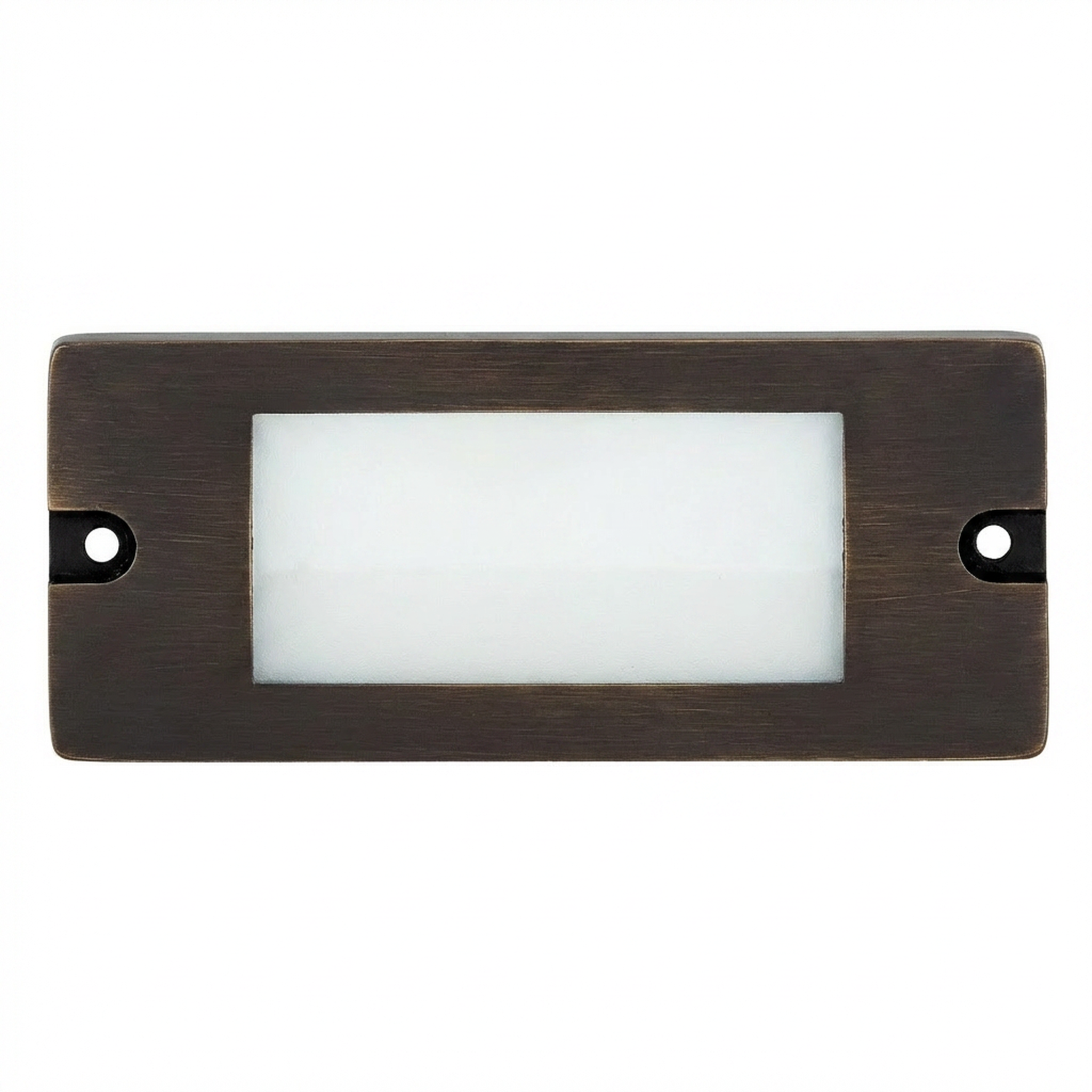

Lensed Step Light, Surface-Mount, 5.5 Inch, Bronze, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This surface-mounted small lensed backless box step light features a corrosion-resistant cast aluminum housing and die-cast aluminum faceplate with a frosted lens in a bronze polyester UV powder coat finish. The removable integrated LED delivers 2.5W and 250 Lumens at 3000K with CRI greater than 80, is dimmable, and carries a 30,000-hour rated life. Prewired with 25 ft of 18-2 direct-burial cord, it includes mounting hardware, a 5-year housing warranty, and a 10-year LED warranty. Ideal for illuminating outdoor steps, entryways, and retaining walls with safe, low-profile accent lighting along residential and commercial pathways.
Features
-
- Aluminum small lensed backless box step light for surface-mounted step and wall lighting; premium corrosion-resistant cast aluminum housing with die-cast aluminum faceplate, frosted lens, and stainless steel backplate
- Bronze finish with polyester UV powder coat
- Removable integrated LED: 2.5W, 250 Lumens, 3000K, CRI > 80, dimmable, approximately 20W halogen equivalent, 30,000-hour rated life
- Operates on 12V AC low voltage; LED operating range 8–15 VAC
- Use remote magnetic transformer (electronic transformers not supported)
- Prewired with 25 ft 18-2 SPT2-W direct-burial cord
- Includes two screws, two anchor bolts, and mounting template
- Dimensions: 5.5" W x 2.5" H x 0.5" D
- Ambient operating temperature: -40°F to 124°F
- 5-year housing warranty and 10-year warranty on the LED
This surface-mounted small lensed backless box step light features a corrosion-resistant cast aluminum housing and die-cast aluminum faceplate with a frosted lens in a bronze polyester UV powder coat finish. The removable integrated LED delivers 2.5W and 250 Lumens at 3000K with CRI greater than 80, is dimmable, and carries a 30,000-hour rated life. Prewired with 25 ft of 18-2 direct-burial cord, it includes mounting hardware, a 5-year housing warranty, and a 10-year LED warranty. Ideal for illuminating outdoor steps, entryways, and retaining walls with safe, low-profile accent lighting along residential and commercial pathways.
Features
-
- Aluminum small lensed backless box step light for surface-mounted step and wall lighting; premium corrosion-resistant cast aluminum housing with die-cast aluminum faceplate, frosted lens, and stainless steel backplate
- Bronze finish with polyester UV powder coat
- Removable integrated LED: 2.5W, 250 Lumens, 3000K, CRI > 80, dimmable, approximately 20W halogen equivalent, 30,000-hour rated life
- Operates on 12V AC low voltage; LED operating range 8–15 VAC
- Use remote magnetic transformer (electronic transformers not supported)
- Prewired with 25 ft 18-2 SPT2-W direct-burial cord
- Includes two screws, two anchor bolts, and mounting template
- Dimensions: 5.5" W x 2.5" H x 0.5" D
- Ambient operating temperature: -40°F to 124°F
- 5-year housing warranty and 10-year warranty on the LED
Overview
This surface-mounted small lensed backless box step light features a corrosion-resistant cast aluminum housing and die-cast aluminum faceplate with a frosted lens in a bronze polyester UV powder coat finish. The removable integrated LED delivers 2.5W and 250 Lumens at 3000K with CRI greater than 80, is dimmable, and carries a 30,000-hour rated life. Prewired with 25 ft of 18-2 direct-burial cord, it includes mounting hardware, a 5-year housing warranty, and a 10-year LED warranty. Ideal for illuminating outdoor steps, entryways, and retaining walls with safe, low-profile accent lighting along residential and commercial pathways.
Features
-
- Aluminum small lensed backless box step light for surface-mounted step and wall lighting; premium corrosion-resistant cast aluminum housing with die-cast aluminum faceplate, frosted lens, and stainless steel backplate
- Bronze finish with polyester UV powder coat
- Removable integrated LED: 2.5W, 250 Lumens, 3000K, CRI > 80, dimmable, approximately 20W halogen equivalent, 30,000-hour rated life
- Operates on 12V AC low voltage; LED operating range 8–15 VAC
- Use remote magnetic transformer (electronic transformers not supported)
- Prewired with 25 ft 18-2 SPT2-W direct-burial cord
- Includes two screws, two anchor bolts, and mounting template
- Dimensions: 5.5" W x 2.5" H x 0.5" D
- Ambient operating temperature: -40°F to 124°F
- 5-year housing warranty and 10-year warranty on the LED
Specifications
| Lensed Step Light, Surface-Mount, 5.5 Inch, Bronze, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 20W |
| Voltage | Low Voltage |
| Operating Temperature | -40°F to 124°F |
| Dimmable | Dimmable |
| Color Temperature | 3000K |
| CRI | 80.0+ |
| LED Heads | 1 |
| Included Components | Integrated LED; 25ft 18-2 SPT2-W direct burial cord; silicone wire nut model CX-854 (connector sold separately); mounting screws and anchors included |
| Power Type | Low Voltage 12V |
| Mount Type | Surface |
| Dimensions | 5-1/2" (W) x 2-1/2" (H) x 1/2" (D) |
| Finish | Bronze |
| Material | Cast aluminum housing, die-cast aluminum faceplate, frosted lens |
| Lifetime | 30,000 Hours |
| Warranty | 5-year fixture warranty; 10-year LED module warranty |
