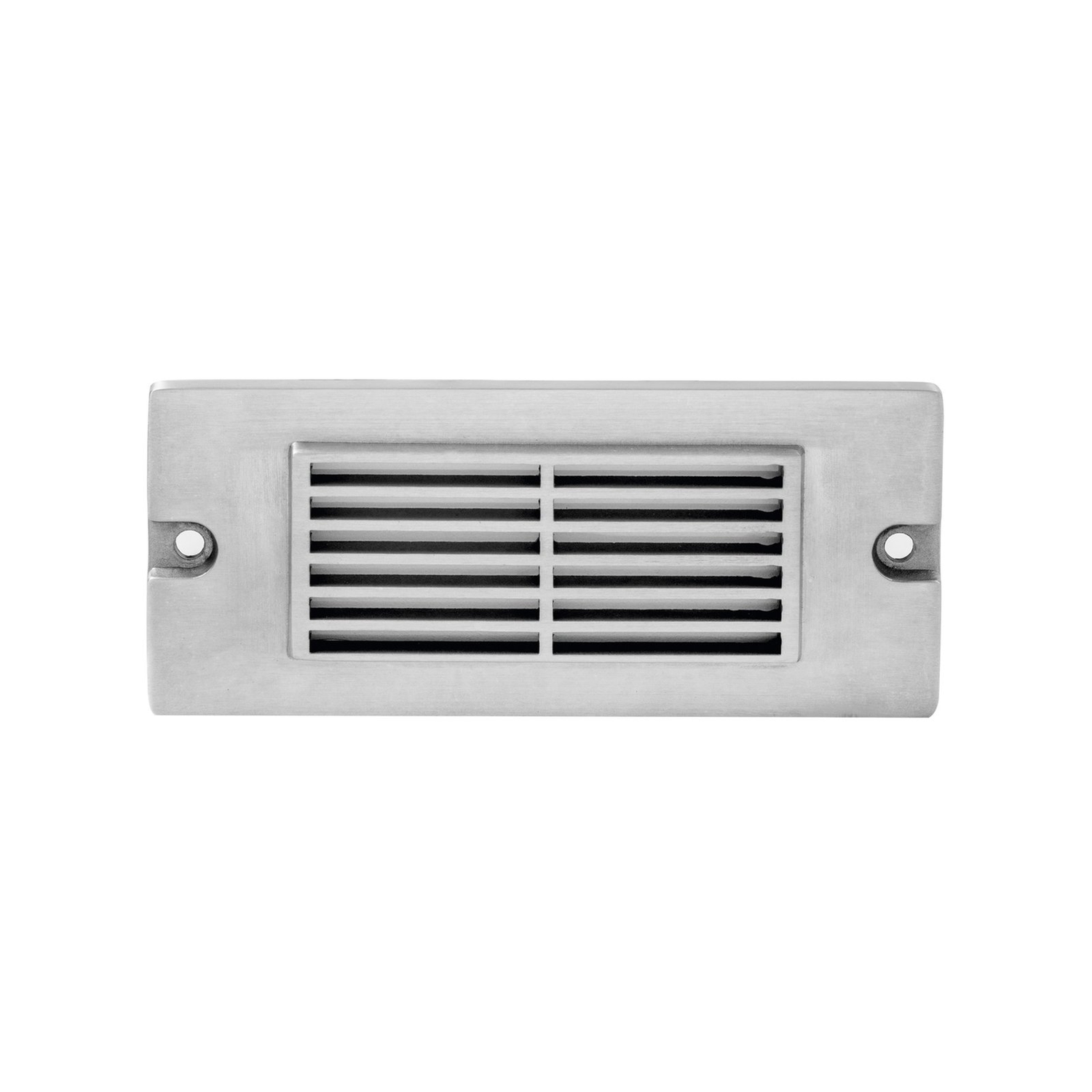

Brass Louvered Step Light, Surface-Mount, 5.5 Inch, Silver Plated, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This small louvered backless box step light is finished in Silver Plated architectural-grade brass and measures 5.5" W x 2.5" H x 0.5" D. It features a removable integrated 2.5W LED delivering 250 Lumens at 3000K with a 30,000-hour rated life. Dimmable when paired with a remote 12V magnetic transformer, the fixture operates on an 8–15V AC range and is not compatible with electronic transformers. Surface-mount hardware and a 25 ft prewired direct-burial cord are included for straightforward installation on concrete, brick, or masonry. Ideal for illuminating stairways, entryways, and outdoor steps along high-traffic pathways.
Features
-
- Small louvered backless box step light; 5.5" W x 2.5" H x 0.5" D
- Architectural-grade heavy-duty corrosion-resistant cast brass housing
- Silver Plated finish with natural toning process; die-cast brass faceplate with frosted lens fitted to stainless steel backplate
- Integrated removable LED: 2.5W, 250 Lumens, 3000K, CRI > 80, 30,000-hour rated life, 20W halogen equivalent; dimmable when used with a remote 12V magnetic transformer
- Operates on 8–15V AC; not for use with electronic transformers
- Surface-mount installation for walls and steps; supplied with anchors and backplate template; ideal for concrete, brick, or masonry
- Prewired with 25 ft 18-2 SPT2-W direct-burial cord
- Wire connector sold separately
- Limited lifetime warranty on fixture housing and faceplate
- 10-year warranty on the removable LED
This small louvered backless box step light is finished in Silver Plated architectural-grade brass and measures 5.5" W x 2.5" H x 0.5" D. It features a removable integrated 2.5W LED delivering 250 Lumens at 3000K with a 30,000-hour rated life. Dimmable when paired with a remote 12V magnetic transformer, the fixture operates on an 8–15V AC range and is not compatible with electronic transformers. Surface-mount hardware and a 25 ft prewired direct-burial cord are included for straightforward installation on concrete, brick, or masonry. Ideal for illuminating stairways, entryways, and outdoor steps along high-traffic pathways.
Features
-
- Small louvered backless box step light; 5.5" W x 2.5" H x 0.5" D
- Architectural-grade heavy-duty corrosion-resistant cast brass housing
- Silver Plated finish with natural toning process; die-cast brass faceplate with frosted lens fitted to stainless steel backplate
- Integrated removable LED: 2.5W, 250 Lumens, 3000K, CRI > 80, 30,000-hour rated life, 20W halogen equivalent; dimmable when used with a remote 12V magnetic transformer
- Operates on 8–15V AC; not for use with electronic transformers
- Surface-mount installation for walls and steps; supplied with anchors and backplate template; ideal for concrete, brick, or masonry
- Prewired with 25 ft 18-2 SPT2-W direct-burial cord
- Wire connector sold separately
- Limited lifetime warranty on fixture housing and faceplate
- 10-year warranty on the removable LED
Overview
This small louvered backless box step light is finished in Silver Plated architectural-grade brass and measures 5.5" W x 2.5" H x 0.5" D. It features a removable integrated 2.5W LED delivering 250 Lumens at 3000K with a 30,000-hour rated life. Dimmable when paired with a remote 12V magnetic transformer, the fixture operates on an 8–15V AC range and is not compatible with electronic transformers. Surface-mount hardware and a 25 ft prewired direct-burial cord are included for straightforward installation on concrete, brick, or masonry. Ideal for illuminating stairways, entryways, and outdoor steps along high-traffic pathways.
Features
-
- Small louvered backless box step light; 5.5" W x 2.5" H x 0.5" D
- Architectural-grade heavy-duty corrosion-resistant cast brass housing
- Silver Plated finish with natural toning process; die-cast brass faceplate with frosted lens fitted to stainless steel backplate
- Integrated removable LED: 2.5W, 250 Lumens, 3000K, CRI > 80, 30,000-hour rated life, 20W halogen equivalent; dimmable when used with a remote 12V magnetic transformer
- Operates on 8–15V AC; not for use with electronic transformers
- Surface-mount installation for walls and steps; supplied with anchors and backplate template; ideal for concrete, brick, or masonry
- Prewired with 25 ft 18-2 SPT2-W direct-burial cord
- Wire connector sold separately
- Limited lifetime warranty on fixture housing and faceplate
- 10-year warranty on the removable LED
Specifications
| Brass Louvered Step Light, Surface-Mount, 5.5 Inch, Silver Plated, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 250LM |
| Wattage | 2.5W |
| Wattage Equivalency | 20W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Dimming Details | Dimmable with remote 12V magnetic transformer; not for use with electronic transformers. |
| Color Temperature | 3000K |
| CRI | 80+ |
| Included Components | Prewired with 25ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. |
| Power Type | Low Voltage 12V (requires remote 12V magnetic transformer) |
| Mount Type | Surface |
| Dimensions | 5-1/2" W x 2-1/2" H x 1/2" D |
| Finish | Silver Plated |
| Shade Material | Frosted lens fitted to stainless steel backplate |
| Material | Architectural-grade brass |
| Lifetime | 30,000 Hours |
| Warranty | Limited lifetime fixture warranty; 10-year LED module warranty |
