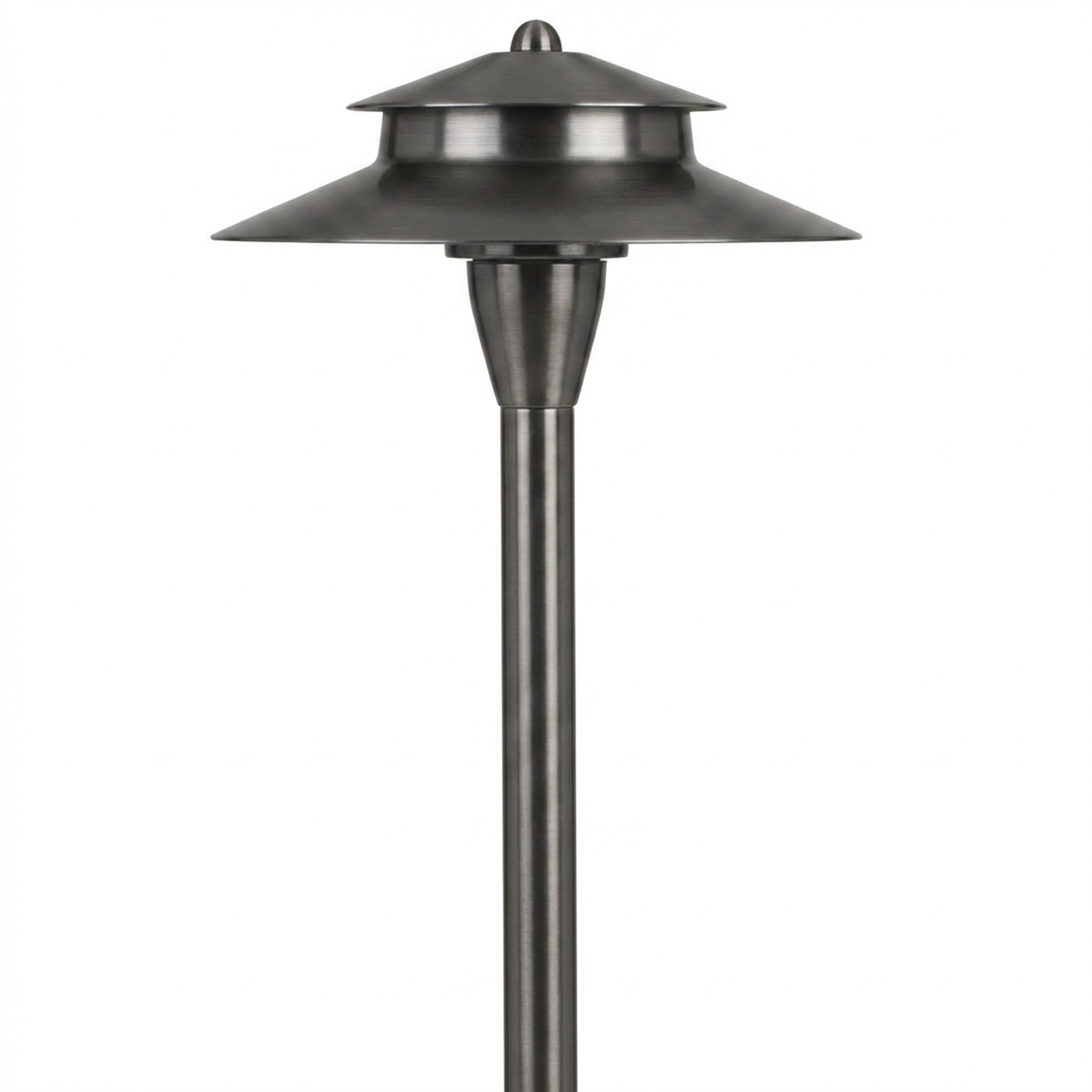

8.5 Inch Brass Large Umbrella Area Light, 18 Inch Stem, Gun Metal, 240 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
The Large Umbrella Path Light is a durable cast brass fixture finished in Gun Metal, designed for 12V landscape applications. It includes a 2.5W LED lamp that delivers approximately 240 Lumens with a 25,000-hour rated life. The unit ships prewired with 3 ft of direct burial cable and mounts on a supplied ground spike. Overall height is approximately 23 Inch with a 8.5 Inch shade Dia. Ideal for lining garden paths and driveways, delivering broad, even ground illumination that safely guides foot traffic through outdoor spaces.
Features
-
- Cast brass housing with brass shade and solid brass stem with 1/2" NPT bottom; Gun Metal (GM) finish via natural toning process (appearance may vary)
- Included lamp: bayonet LED, approx 240 Lumens, 25,000-hour life; LED voltage range 8–21V
- Socket: Bayonet (SCB) with tool-free lamp access and silicone O-ring gasket for watertight seal
- Clear glass lens for sprinkler water protection; optional frosted lens CX-308-FR
- 12V fixture prewired with 3 ft 18-2 direct-burial cable
- Mounting supplied: standard ground spike with 1/2" NPT
- Stem options: 12", 18" (standard), and 24"
The Large Umbrella Path Light is a durable cast brass fixture finished in Gun Metal, designed for 12V landscape applications. It includes a 2.5W LED lamp that delivers approximately 240 Lumens with a 25,000-hour rated life. The unit ships prewired with 3 ft of direct burial cable and mounts on a supplied ground spike. Overall height is approximately 23 Inch with a 8.5 Inch shade Dia. Ideal for lining garden paths and driveways, delivering broad, even ground illumination that safely guides foot traffic through outdoor spaces.
Features
-
- Cast brass housing with brass shade and solid brass stem with 1/2" NPT bottom; Gun Metal (GM) finish via natural toning process (appearance may vary)
- Included lamp: bayonet LED, approx 240 Lumens, 25,000-hour life; LED voltage range 8–21V
- Socket: Bayonet (SCB) with tool-free lamp access and silicone O-ring gasket for watertight seal
- Clear glass lens for sprinkler water protection; optional frosted lens CX-308-FR
- 12V fixture prewired with 3 ft 18-2 direct-burial cable
- Mounting supplied: standard ground spike with 1/2" NPT
- Stem options: 12", 18" (standard), and 24"
Overview
The Large Umbrella Path Light is a durable cast brass fixture finished in Gun Metal, designed for 12V landscape applications. It includes a 2.5W LED lamp that delivers approximately 240 Lumens with a 25,000-hour rated life. The unit ships prewired with 3 ft of direct burial cable and mounts on a supplied ground spike. Overall height is approximately 23 Inch with a 8.5 Inch shade Dia. Ideal for lining garden paths and driveways, delivering broad, even ground illumination that safely guides foot traffic through outdoor spaces.
Features
-
- Cast brass housing with brass shade and solid brass stem with 1/2" NPT bottom; Gun Metal (GM) finish via natural toning process (appearance may vary)
- Included lamp: bayonet LED, approx 240 Lumens, 25,000-hour life; LED voltage range 8–21V
- Socket: Bayonet (SCB) with tool-free lamp access and silicone O-ring gasket for watertight seal
- Clear glass lens for sprinkler water protection; optional frosted lens CX-308-FR
- 12V fixture prewired with 3 ft 18-2 direct-burial cable
- Mounting supplied: standard ground spike with 1/2" NPT
- Stem options: 12", 18" (standard), and 24"
Specifications
| 8.5 Inch Brass Large Umbrella Area Light, 18 Inch Stem, Gun Metal, 240 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Dimmable | Dimmable |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Ground Spike |
| Dimensions | Head Dia. 10.5"; Stem 12", 18" (standard), or 24"; Overall H approx. 23" |
| Finish | Gun Metal |
| Material | Cast brass housing; brass shade(s); solid brass stem |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime warranty on housing and stem; Five (5) years limited warranty on LED module |
