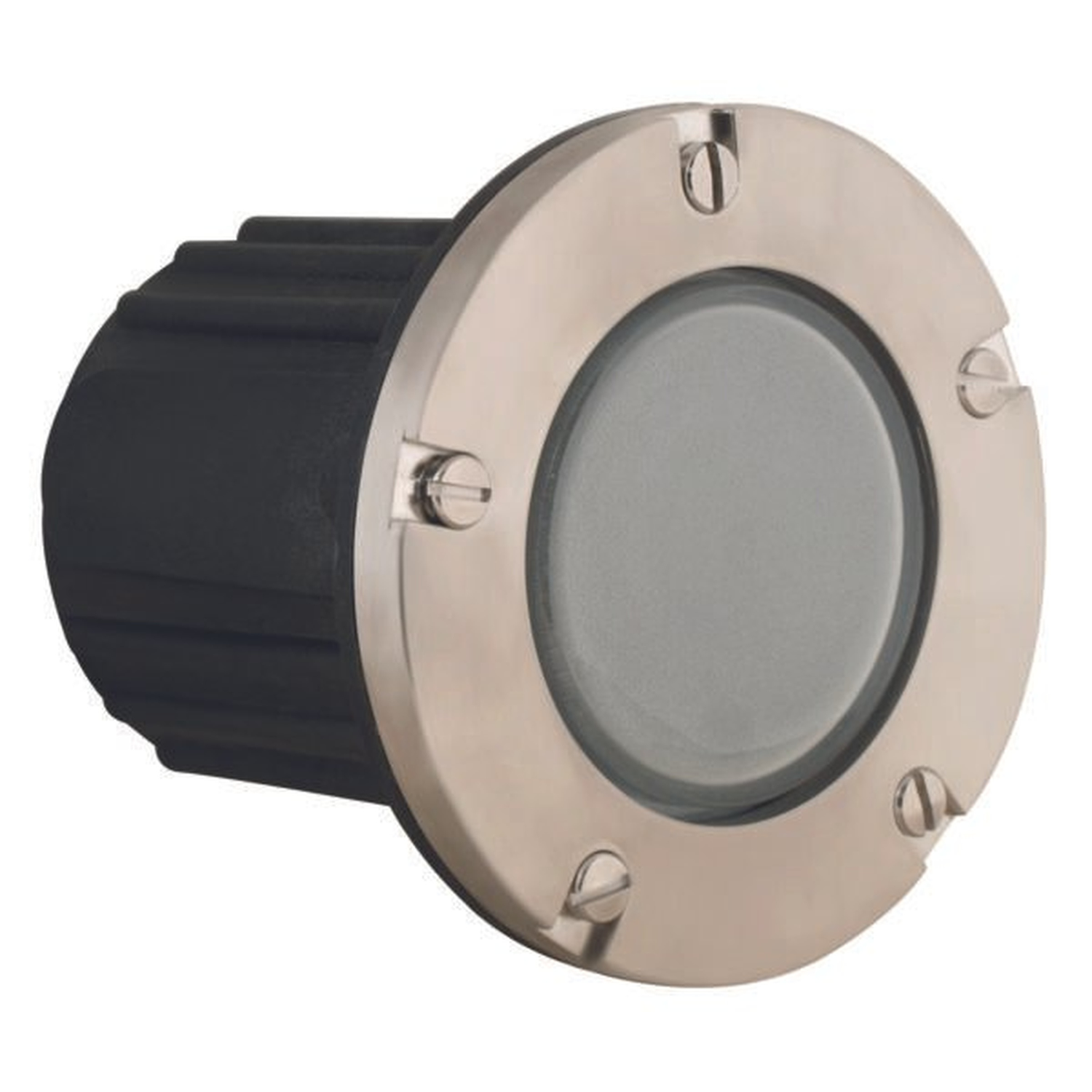

316 Marine-Grade Stainless Steel Glass Lens Round Step Light, In-Ground, 5 Inch, 45° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This 316 Marine-Grade Stainless Steel lensed round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 45° Wide Beam Angle.
Features
-
- 316 marine-grade stainless steel faceplate with silicone O-ring gasket for weather-tight seal
- Injection-molded composite housing with high UV stability
- Frosted, heat-resistant flat glass lens; adjustable ceramic bi-pin socket tilts ±25°
- Lamp: MR16 LED, 3.5W, 270 Lumens, 2700K, 45° flood, dimmable, 50,000-hour rated life; 25W halogen equivalent
- 12V MR16 lamp; voltage range 9–17V; remote 12V transformer required
- Prewired with 3 ft 18-2 SJT-W direct-burial cord (wire connector sold separately)
- Suitable for in-ground direct burial or concrete encasement; concrete pour kit CX-237 recommended
- Accessories available: CX-854 silicone-filled wire nut, CX-238 snap-on holder, CX-239 honeycomb louver, CX-240 color lenses
This 316 Marine-Grade Stainless Steel lensed round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 45° Wide Beam Angle.
Features
-
- 316 marine-grade stainless steel faceplate with silicone O-ring gasket for weather-tight seal
- Injection-molded composite housing with high UV stability
- Frosted, heat-resistant flat glass lens; adjustable ceramic bi-pin socket tilts ±25°
- Lamp: MR16 LED, 3.5W, 270 Lumens, 2700K, 45° flood, dimmable, 50,000-hour rated life; 25W halogen equivalent
- 12V MR16 lamp; voltage range 9–17V; remote 12V transformer required
- Prewired with 3 ft 18-2 SJT-W direct-burial cord (wire connector sold separately)
- Suitable for in-ground direct burial or concrete encasement; concrete pour kit CX-237 recommended
- Accessories available: CX-854 silicone-filled wire nut, CX-238 snap-on holder, CX-239 honeycomb louver, CX-240 color lenses
Overview
This 316 Marine-Grade Stainless Steel lensed round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 45° Wide Beam Angle.
Features
-
- 316 marine-grade stainless steel faceplate with silicone O-ring gasket for weather-tight seal
- Injection-molded composite housing with high UV stability
- Frosted, heat-resistant flat glass lens; adjustable ceramic bi-pin socket tilts ±25°
- Lamp: MR16 LED, 3.5W, 270 Lumens, 2700K, 45° flood, dimmable, 50,000-hour rated life; 25W halogen equivalent
- 12V MR16 lamp; voltage range 9–17V; remote 12V transformer required
- Prewired with 3 ft 18-2 SJT-W direct-burial cord (wire connector sold separately)
- Suitable for in-ground direct burial or concrete encasement; concrete pour kit CX-237 recommended
- Accessories available: CX-854 silicone-filled wire nut, CX-238 snap-on holder, CX-239 honeycomb louver, CX-240 color lenses
Specifications
| 316 Marine-Grade Stainless Steel Glass Lens Round Step Light, In-Ground, 5 Inch, 45° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 45° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 4-7/8" W x 4-5/8" H; Depth 3-1/2"; Trim 3/8" |
| Finish | Stainless Steel |
| Material | 316 marine grade stainless steel faceplate; injection molded composite housing |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on stainless steel fixture housing, Five (5) years limited warranty on LED module |
