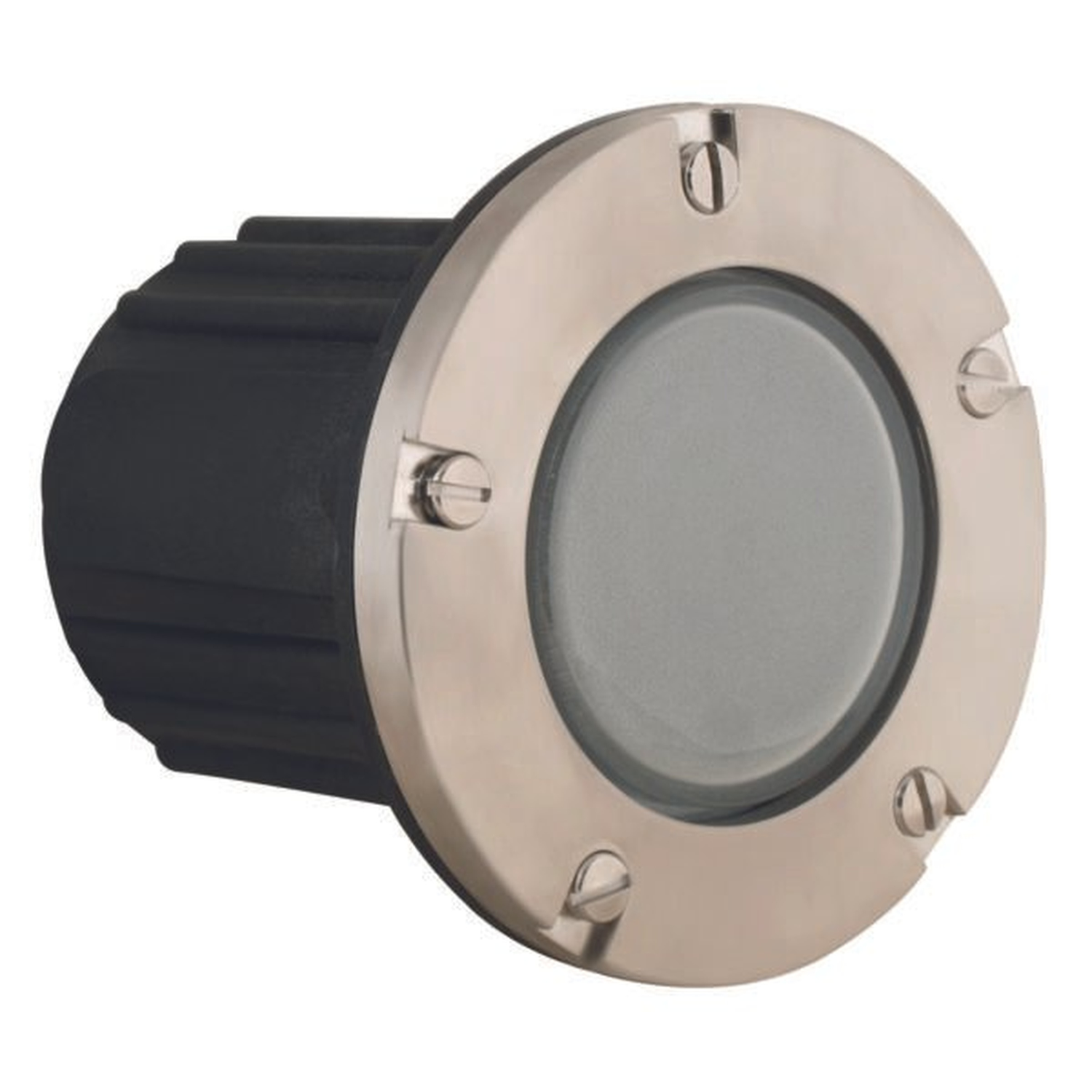

316 Marine-Grade Stainless Steel Glass Lens Round Step Light, In-Ground, 5 Inch, 15° Narrow Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This 316 Marine-Grade Stainless Steel lensed round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- 316 marine grade stainless steel faceplate with silicone O-ring gasket for a weather-tight seal
- Injection molded composite housing with high UV stability for long-term outdoor use
- Frosted heat-resistant flat glass lens
- Top-grade adjustable ceramic bi-pin socket that tilts ±25°
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 15° spot beam, 50,000 hr life, 25W halogen equivalent
- LED lamp operating range 9–17V; requires remote 12V transformer
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; silicone sealed faceplate for in-ground installation
- Mounts for in-ground direct burial or concrete encasement
- Compatible with concrete pour kit CX-237 and accessories CX-854, CX-238, CX-239, CX-240
- Warranty: limited lifetime on faceplate, 10-year housing warranty, and 5-year manufacturer's warranty for lamps
This 316 Marine-Grade Stainless Steel lensed round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- 316 marine grade stainless steel faceplate with silicone O-ring gasket for a weather-tight seal
- Injection molded composite housing with high UV stability for long-term outdoor use
- Frosted heat-resistant flat glass lens
- Top-grade adjustable ceramic bi-pin socket that tilts ±25°
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 15° spot beam, 50,000 hr life, 25W halogen equivalent
- LED lamp operating range 9–17V; requires remote 12V transformer
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; silicone sealed faceplate for in-ground installation
- Mounts for in-ground direct burial or concrete encasement
- Compatible with concrete pour kit CX-237 and accessories CX-854, CX-238, CX-239, CX-240
- Warranty: limited lifetime on faceplate, 10-year housing warranty, and 5-year manufacturer's warranty for lamps
Overview
This 316 Marine-Grade Stainless Steel lensed round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- 316 marine grade stainless steel faceplate with silicone O-ring gasket for a weather-tight seal
- Injection molded composite housing with high UV stability for long-term outdoor use
- Frosted heat-resistant flat glass lens
- Top-grade adjustable ceramic bi-pin socket that tilts ±25°
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 15° spot beam, 50,000 hr life, 25W halogen equivalent
- LED lamp operating range 9–17V; requires remote 12V transformer
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; silicone sealed faceplate for in-ground installation
- Mounts for in-ground direct burial or concrete encasement
- Compatible with concrete pour kit CX-237 and accessories CX-854, CX-238, CX-239, CX-240
- Warranty: limited lifetime on faceplate, 10-year housing warranty, and 5-year manufacturer's warranty for lamps
Specifications
| 316 Marine-Grade Stainless Steel Glass Lens Round Step Light, In-Ground, 5 Inch, 15° Narrow Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 4-7/8" W x 4-5/8" H; Depth 3-1/2"; Trim 3/8" |
| Finish | Stainless Steel |
| Material | 316 marine grade stainless steel faceplate; injection molded composite housing |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime on faceplate; ten (10) years on housing against manufacturer's defects; Five (5) years Manufacturer's warranty for lamps |
