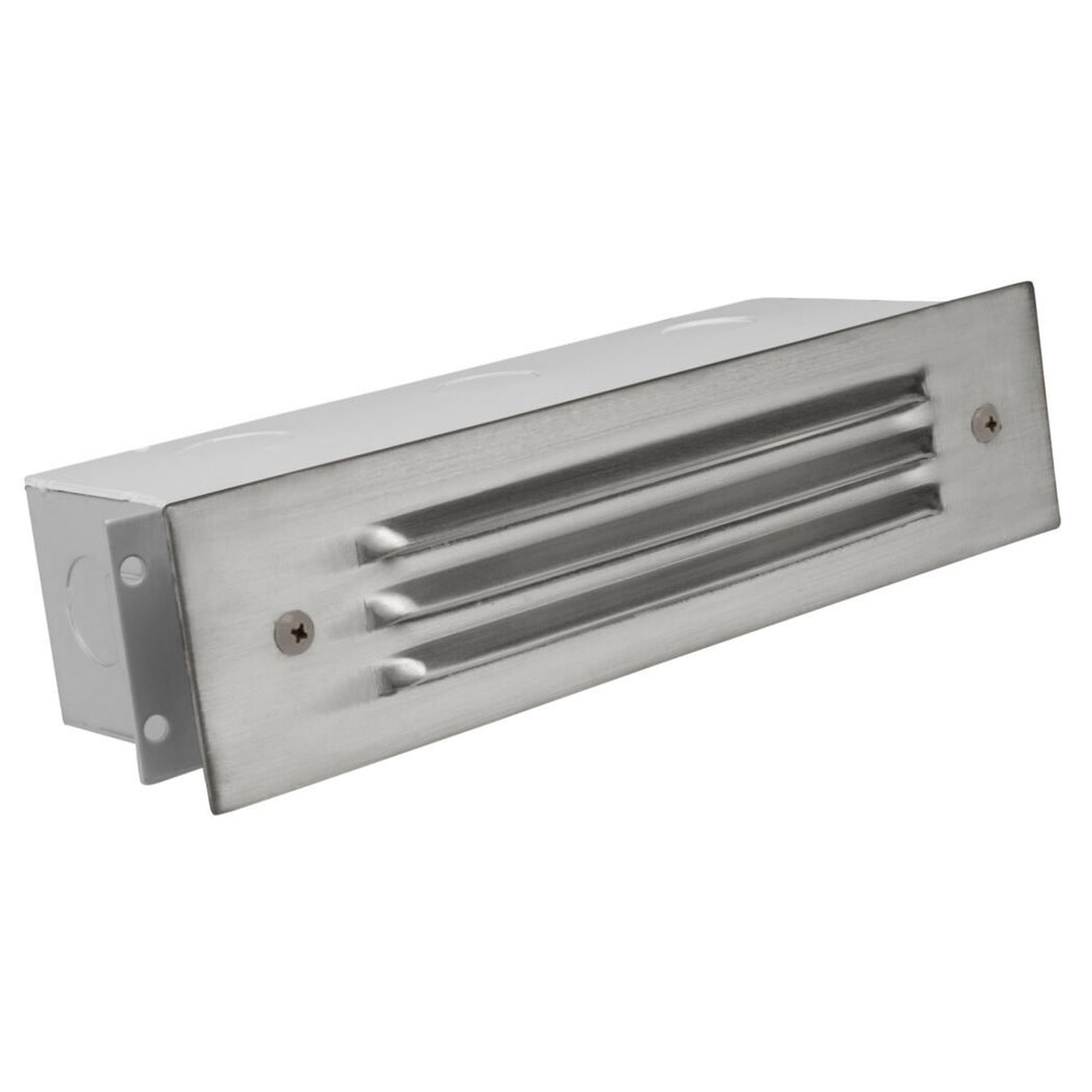

Brass 3-Louver Brick Step Light, Recessed, 9 Inch, Silver Plated, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Silver Plated brass 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- 3-louver brass brick/step light with Silver Plated faceplate (SI variant) and corrosion-resistant galvanized steel recessed back box
- Includes two LED bayonet lamps: 2.5W each (options), 240 lumens at 2700K and 250 lumens at 3000K per lamp, CRI 80, typical LED life 25,000 hours, approx 35W equivalency; output applies to each included lamp, and total fixture output is not stated
- Two SCB (single-contact bayonet) sockets
- 12V system; operating range 8–21V
- High-impact white polycarbonate lens with silicone gasket seals faceplate to housing
- Recessed back-box installation for concrete/brick/masonry with self-leveling adjustable bars and five 1/2" NPT inlets
- Remote 12V transformer required; fixture is dimmable
- Dimensions: faceplate approx 9" W x 3" H; back box length 8"; overall depth about 2-1/4"
- Warranty: Limited lifetime fixture warranty
This Silver Plated brass 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- 3-louver brass brick/step light with Silver Plated faceplate (SI variant) and corrosion-resistant galvanized steel recessed back box
- Includes two LED bayonet lamps: 2.5W each (options), 240 lumens at 2700K and 250 lumens at 3000K per lamp, CRI 80, typical LED life 25,000 hours, approx 35W equivalency; output applies to each included lamp, and total fixture output is not stated
- Two SCB (single-contact bayonet) sockets
- 12V system; operating range 8–21V
- High-impact white polycarbonate lens with silicone gasket seals faceplate to housing
- Recessed back-box installation for concrete/brick/masonry with self-leveling adjustable bars and five 1/2" NPT inlets
- Remote 12V transformer required; fixture is dimmable
- Dimensions: faceplate approx 9" W x 3" H; back box length 8"; overall depth about 2-1/4"
- Warranty: Limited lifetime fixture warranty
Overview
This Silver Plated brass 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- 3-louver brass brick/step light with Silver Plated faceplate (SI variant) and corrosion-resistant galvanized steel recessed back box
- Includes two LED bayonet lamps: 2.5W each (options), 240 lumens at 2700K and 250 lumens at 3000K per lamp, CRI 80, typical LED life 25,000 hours, approx 35W equivalency; output applies to each included lamp, and total fixture output is not stated
- Two SCB (single-contact bayonet) sockets
- 12V system; operating range 8–21V
- High-impact white polycarbonate lens with silicone gasket seals faceplate to housing
- Recessed back-box installation for concrete/brick/masonry with self-leveling adjustable bars and five 1/2" NPT inlets
- Remote 12V transformer required; fixture is dimmable
- Dimensions: faceplate approx 9" W x 3" H; back box length 8"; overall depth about 2-1/4"
- Warranty: Limited lifetime fixture warranty
Specifications
| Brass 3-Louver Brick Step Light, Recessed, 9 Inch, Silver Plated, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate Approx. 9" W x 3" H; back box L 8"; overall D about 2-1/4" |
| Finish | Silver Plated |
| Material | Solid brass faceplate; galvanized steel back box; high-impact white polycarbonate lens |
| Lifetime | 25,000 Hours |
| Warranty | Limited warranty on solid brass fixture housing per manufacturer terms; Five (5) years limited warranty on LED module |
