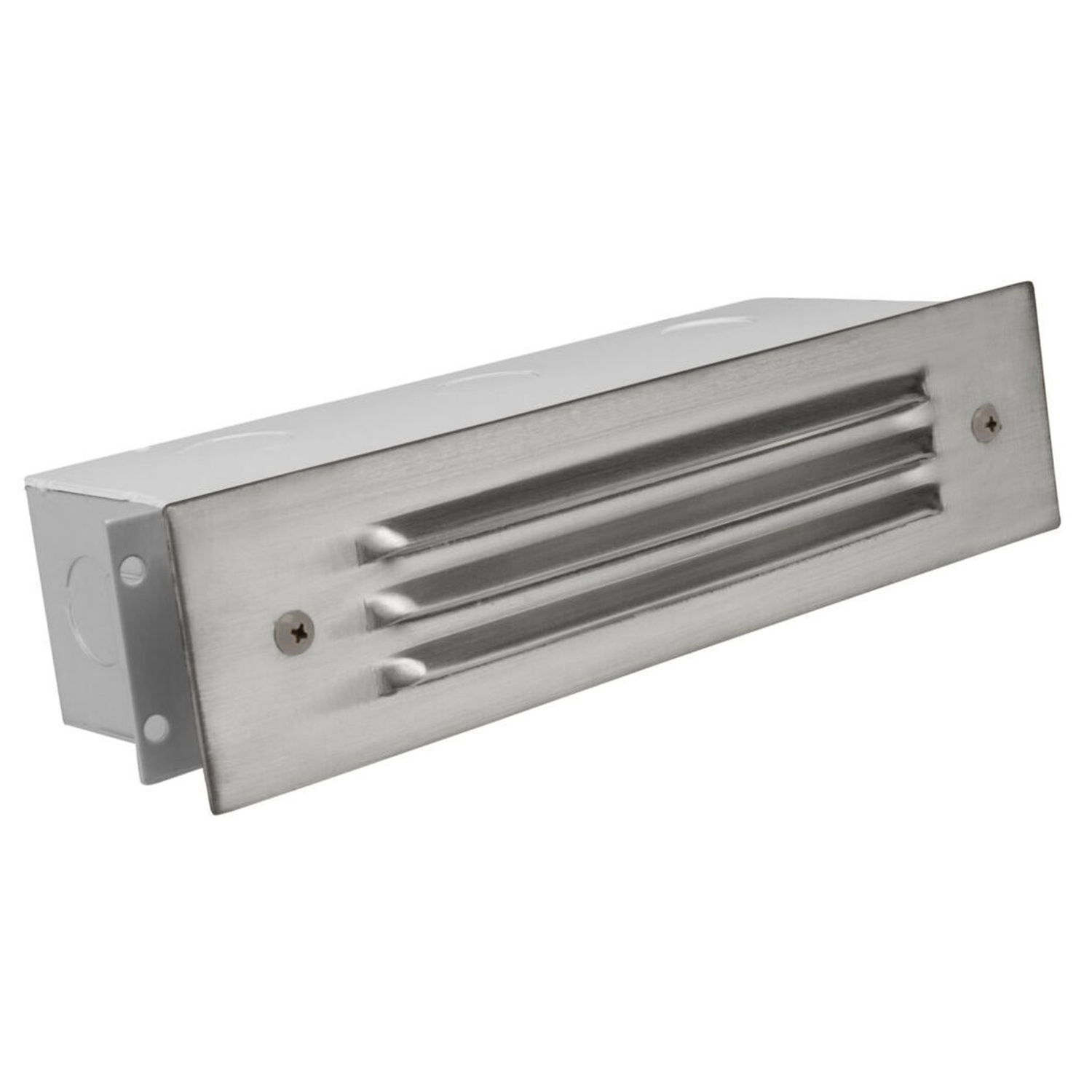

Brass 3-Louver Brick Step Light, Recessed, 9 Inch, Silver Plated, 210 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Silver Plated brass 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Solid brass 3-louver faceplate in Silver Plated finish for corrosion resistance
- Heavy-duty galvanized steel recessed back box with self-leveling adjustable bars for masonry installs
- High-impact white polycarbonate lens with silicone gasket sealing faceplate to housing
- Two SCB bayonet sockets; 12V; 27W max per socket; remote 12V transformer required
- LED operating range 8–21V
- Includes 2 LED bayonet lamps: 2W each, 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, 25,000-hour rated life; output applies to each included lamp, and total fixture output is not stated
- Recessed mounting for concrete, brick, or masonry; five 1/2" NPT inlets
- Dimensions: faceplate approx 9" W x 3" H; back box length 8"; overall depth about 2-1/4"
- Warranty: Limited lifetime fixture warranty
This Silver Plated brass 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Solid brass 3-louver faceplate in Silver Plated finish for corrosion resistance
- Heavy-duty galvanized steel recessed back box with self-leveling adjustable bars for masonry installs
- High-impact white polycarbonate lens with silicone gasket sealing faceplate to housing
- Two SCB bayonet sockets; 12V; 27W max per socket; remote 12V transformer required
- LED operating range 8–21V
- Includes 2 LED bayonet lamps: 2W each, 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, 25,000-hour rated life; output applies to each included lamp, and total fixture output is not stated
- Recessed mounting for concrete, brick, or masonry; five 1/2" NPT inlets
- Dimensions: faceplate approx 9" W x 3" H; back box length 8"; overall depth about 2-1/4"
- Warranty: Limited lifetime fixture warranty
Overview
This Silver Plated brass 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Solid brass 3-louver faceplate in Silver Plated finish for corrosion resistance
- Heavy-duty galvanized steel recessed back box with self-leveling adjustable bars for masonry installs
- High-impact white polycarbonate lens with silicone gasket sealing faceplate to housing
- Two SCB bayonet sockets; 12V; 27W max per socket; remote 12V transformer required
- LED operating range 8–21V
- Includes 2 LED bayonet lamps: 2W each, 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, 25,000-hour rated life; output applies to each included lamp, and total fixture output is not stated
- Recessed mounting for concrete, brick, or masonry; five 1/2" NPT inlets
- Dimensions: faceplate approx 9" W x 3" H; back box length 8"; overall depth about 2-1/4"
- Warranty: Limited lifetime fixture warranty
Specifications
| Brass 3-Louver Brick Step Light, Recessed, 9 Inch, Silver Plated, 210 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 200 - 210LM |
| Efficacy | 100LM/W |
| Wattage | 2W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate Approx. 9" W x 3" H; back box L 8"; overall D about 2-1/4" |
| Finish | Silver Plated |
| Material | Solid brass faceplate; galvanized steel recessed back box; high-impact white polycarbonate lens |
| Lifetime | 25,000 Hours |
| Warranty | Limited warranty on solid brass fixture housing per manufacturer terms; Five (5) years limited warranty on LED module |
