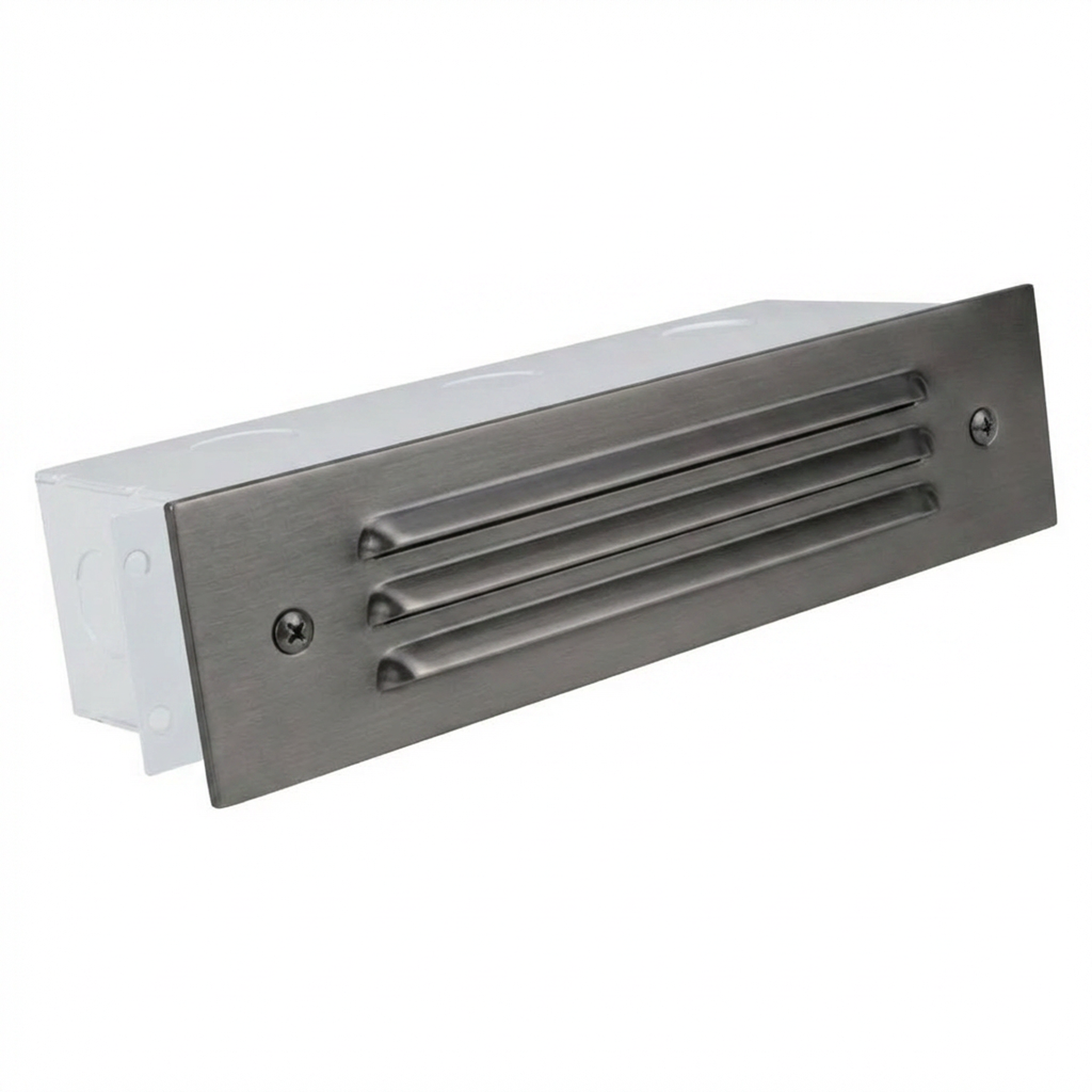

Brass 3-Louver Brick Step Light, Recessed, 9 Inch, Gun Metal, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Gun Metal brass 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Die-cast brass 3-louver recessed brick/step light in Gun Metal finish, designed for masonry installs
- Includes 2.5W LED lamp, 240 lumens at 2700K and 250 lumens at 3000K; output applies to each included lamp, and total fixture output is not stated
- Two SCB bayonet sockets; accepts 12V LED lamps
- LED operating range 8–21V; maximum lamp wattage 27W; remote 12V transformer required
- Heavy-duty galvanized steel recessed housing with self-leveling adjustable bars and 5 x 1/2" NPT inlets
- Dimensions: faceplate approx 9" W x 2-1/4" H; back box width 8"; box depth 3"; aperture height approx 2"
- High-impact white polycarbonate lens and silicone faceplate-to-housing gasket
- Prewired with 12" direct-burial cord
- Warranty: Limited lifetime fixture warranty
This Gun Metal brass 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Die-cast brass 3-louver recessed brick/step light in Gun Metal finish, designed for masonry installs
- Includes 2.5W LED lamp, 240 lumens at 2700K and 250 lumens at 3000K; output applies to each included lamp, and total fixture output is not stated
- Two SCB bayonet sockets; accepts 12V LED lamps
- LED operating range 8–21V; maximum lamp wattage 27W; remote 12V transformer required
- Heavy-duty galvanized steel recessed housing with self-leveling adjustable bars and 5 x 1/2" NPT inlets
- Dimensions: faceplate approx 9" W x 2-1/4" H; back box width 8"; box depth 3"; aperture height approx 2"
- High-impact white polycarbonate lens and silicone faceplate-to-housing gasket
- Prewired with 12" direct-burial cord
- Warranty: Limited lifetime fixture warranty
Overview
This Gun Metal brass 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Die-cast brass 3-louver recessed brick/step light in Gun Metal finish, designed for masonry installs
- Includes 2.5W LED lamp, 240 lumens at 2700K and 250 lumens at 3000K; output applies to each included lamp, and total fixture output is not stated
- Two SCB bayonet sockets; accepts 12V LED lamps
- LED operating range 8–21V; maximum lamp wattage 27W; remote 12V transformer required
- Heavy-duty galvanized steel recessed housing with self-leveling adjustable bars and 5 x 1/2" NPT inlets
- Dimensions: faceplate approx 9" W x 2-1/4" H; back box width 8"; box depth 3"; aperture height approx 2"
- High-impact white polycarbonate lens and silicone faceplate-to-housing gasket
- Prewired with 12" direct-burial cord
- Warranty: Limited lifetime fixture warranty
Specifications
| Brass 3-Louver Brick Step Light, Recessed, 9 Inch, Gun Metal, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| LED Heads | 2 |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate Approx. 9" W x 2-1/4" H; back box W 8"; box D 3"; aperture H Approx. 2" |
| Finish | Gun Metal |
| Material | Brass faceplate with galvanized steel housing |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime warranty on stainless steel fixture housing, Five (5) years limited warranty on LED module |
