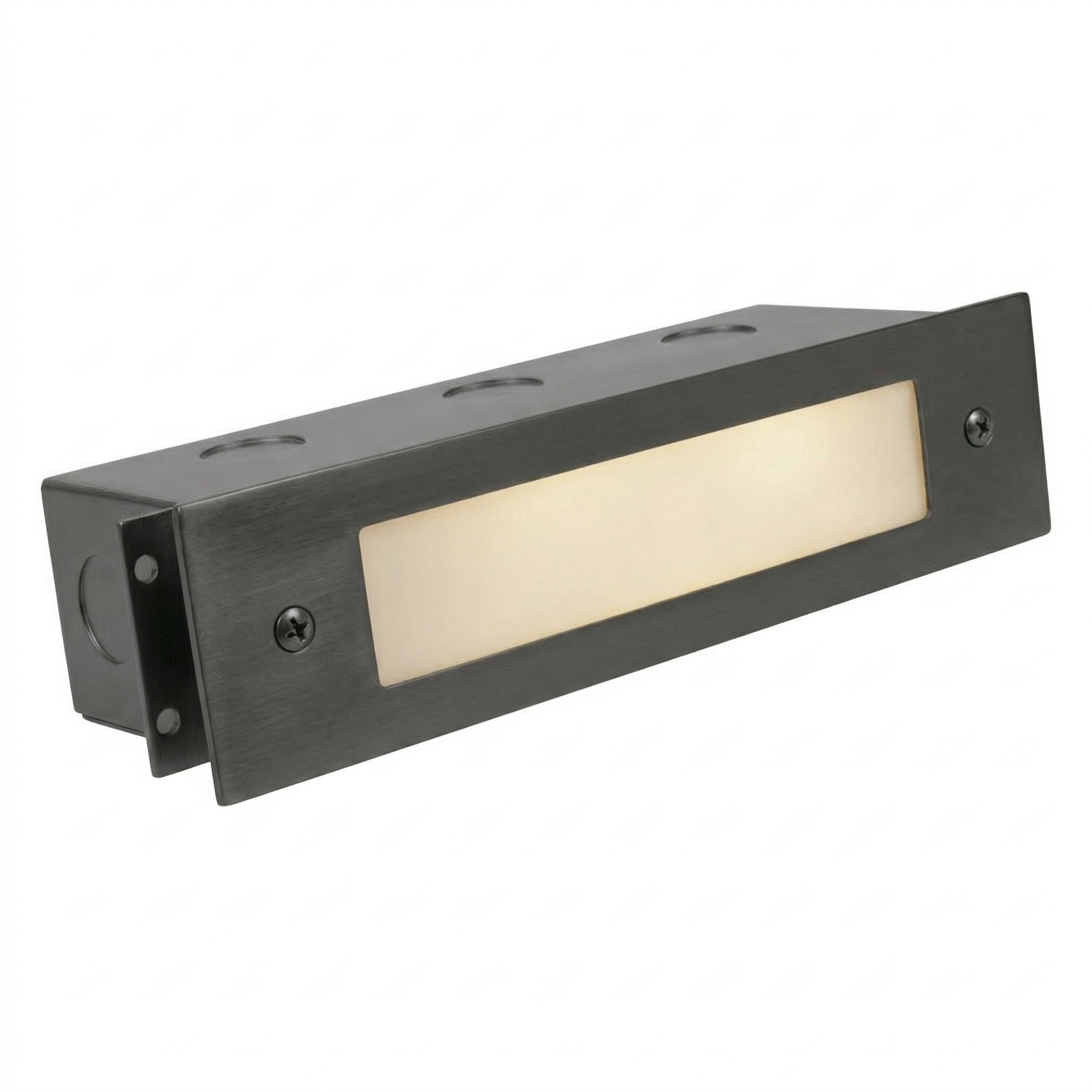

Brass Lensed Brick Step Light, Recessed, 9 Inch, Gun Metal, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Gun Metal brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Solid brass faceplate in Gun Metal finish with white powder-coated steel mounting back box and self-leveling adjustable brackets
- Frosted high-impact white polycarbonate lens with silicone weather-tight gasket
- 12V system; LED operating voltage range 8–21V; remote 12V transformer required; efficacy 96 Lumens/W
- Two SCB sockets; 27W max per socket (halogen)
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, dimmable, 25,000-hour rated life
- Designed for recessed-mount back box for concrete, brick, or masonry with faceplate surface-mount
- Prewired with 12" direct-burial cord
- Faceplate dimensions: 9" W x 2-1/4" H
- Warranty: limited lifetime on Antique Bronze, Gun Metal, Silver, and Raw Copper housing and faceplate; 5-year warranty on black, bronze, rust, and white finishes
This Gun Metal brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Solid brass faceplate in Gun Metal finish with white powder-coated steel mounting back box and self-leveling adjustable brackets
- Frosted high-impact white polycarbonate lens with silicone weather-tight gasket
- 12V system; LED operating voltage range 8–21V; remote 12V transformer required; efficacy 96 Lumens/W
- Two SCB sockets; 27W max per socket (halogen)
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, dimmable, 25,000-hour rated life
- Designed for recessed-mount back box for concrete, brick, or masonry with faceplate surface-mount
- Prewired with 12" direct-burial cord
- Faceplate dimensions: 9" W x 2-1/4" H
- Warranty: limited lifetime on Antique Bronze, Gun Metal, Silver, and Raw Copper housing and faceplate; 5-year warranty on black, bronze, rust, and white finishes
Overview
This Gun Metal brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Solid brass faceplate in Gun Metal finish with white powder-coated steel mounting back box and self-leveling adjustable brackets
- Frosted high-impact white polycarbonate lens with silicone weather-tight gasket
- 12V system; LED operating voltage range 8–21V; remote 12V transformer required; efficacy 96 Lumens/W
- Two SCB sockets; 27W max per socket (halogen)
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, dimmable, 25,000-hour rated life
- Designed for recessed-mount back box for concrete, brick, or masonry with faceplate surface-mount
- Prewired with 12" direct-burial cord
- Faceplate dimensions: 9" W x 2-1/4" H
- Warranty: limited lifetime on Antique Bronze, Gun Metal, Silver, and Raw Copper housing and faceplate; 5-year warranty on black, bronze, rust, and white finishes
Specifications
| Brass Lensed Brick Step Light, Recessed, 9 Inch, Gun Metal, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| LED Heads | 2 |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | 9" W x 2-1/4" H |
| Finish | Gun Metal |
| Material | Solid brass faceplate; white powder-coated steel housing; frosted high-impact polycarbonate lens; silicone gasket |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime warranty on AB/GM/SI/RC housing/faceplate; five-year warranty on BK/BZ/RT/WH finishes; five (5) year manufacturer's warranty on the LED lamp |
