Brass Lensed Brick Step Light, Recessed, 9 Inch, Gun Metal, 210 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

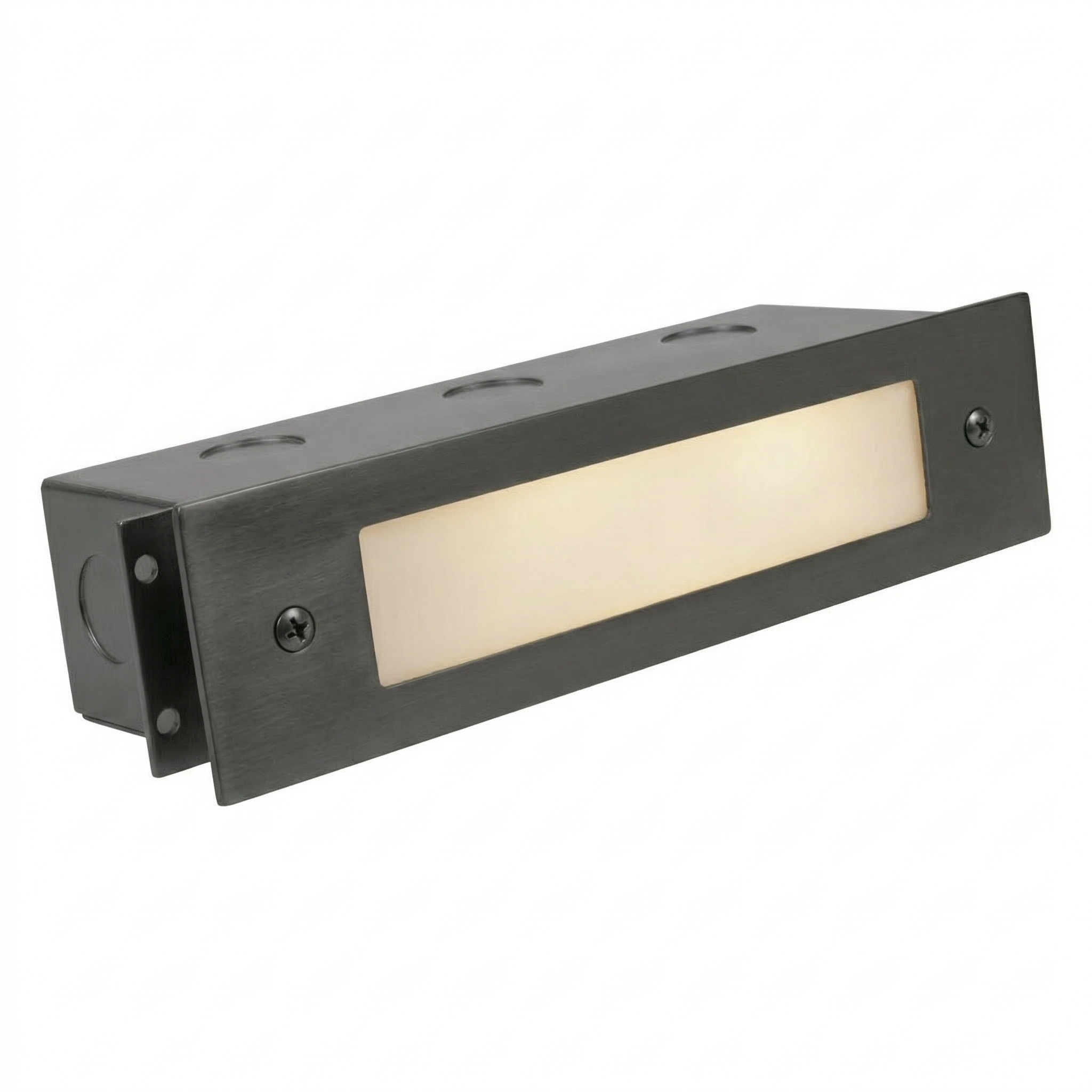

This Gun Metal brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Solid brass faceplate in Gun Metal finish for architectural step and brick lighting
- White powder-coated steel mounting/back box with self-leveling plate
- Adjustable brackets and (3) 1/2" NPT inlets
- Frosted high-impact white polycarbonate lens
- Silicone weather-tight gasket for reliable outdoor performance
- Includes two bayonet LED lamps: 2W each, 200 lumens at 2700K and 210 lumens at 3000K, CRI 80
- LED lamps rated for approximately 25,000 hours; operating range 8–21V
- Accepts two SCB bayonet sockets; supports up to 27W max per halogen specification
- Requires remote 12V transformer
- Prewired with 12" direct-burial cord; intended for recessed back box installation in concrete or masonry
- Faceplate dimensions: 9" W x 2-1/4" H
- Ship weight ~4 lbs
- Limited lifetime warranty on faceplate and five-year lamp warranty
This Gun Metal brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Solid brass faceplate in Gun Metal finish for architectural step and brick lighting
- White powder-coated steel mounting/back box with self-leveling plate
- Adjustable brackets and (3) 1/2" NPT inlets
- Frosted high-impact white polycarbonate lens
- Silicone weather-tight gasket for reliable outdoor performance
- Includes two bayonet LED lamps: 2W each, 200 lumens at 2700K and 210 lumens at 3000K, CRI 80
- LED lamps rated for approximately 25,000 hours; operating range 8–21V
- Accepts two SCB bayonet sockets; supports up to 27W max per halogen specification
- Requires remote 12V transformer
- Prewired with 12" direct-burial cord; intended for recessed back box installation in concrete or masonry
- Faceplate dimensions: 9" W x 2-1/4" H
- Ship weight ~4 lbs
- Limited lifetime warranty on faceplate and five-year lamp warranty
Overview
This Gun Metal brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Solid brass faceplate in Gun Metal finish for architectural step and brick lighting
- White powder-coated steel mounting/back box with self-leveling plate
- Adjustable brackets and (3) 1/2" NPT inlets
- Frosted high-impact white polycarbonate lens
- Silicone weather-tight gasket for reliable outdoor performance
- Includes two bayonet LED lamps: 2W each, 200 lumens at 2700K and 210 lumens at 3000K, CRI 80
- LED lamps rated for approximately 25,000 hours; operating range 8–21V
- Accepts two SCB bayonet sockets; supports up to 27W max per halogen specification
- Requires remote 12V transformer
- Prewired with 12" direct-burial cord; intended for recessed back box installation in concrete or masonry
- Faceplate dimensions: 9" W x 2-1/4" H
- Ship weight ~4 lbs
- Limited lifetime warranty on faceplate and five-year lamp warranty
Specifications
| Brass Lensed Brick Step Light, Recessed, 9 Inch, Gun Metal, 210 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 200 - 210LM |
| Efficacy | 100LM/W |
| Wattage | 2W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| LED Heads | 2 |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 9" W x 2-1/4" H |
| Finish | Gun Metal |
| Material | Solid brass faceplate and white powder-coated steel mounting box |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime warranty on AB/GM/SI housing/faceplate; five-year on BK/BZ/RT/WH finishes; five-year lamp warranty |
