Brass 3-Louver Glass Lens Step Light, Recessed, 5-1/8 Inch, Gun Metal, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

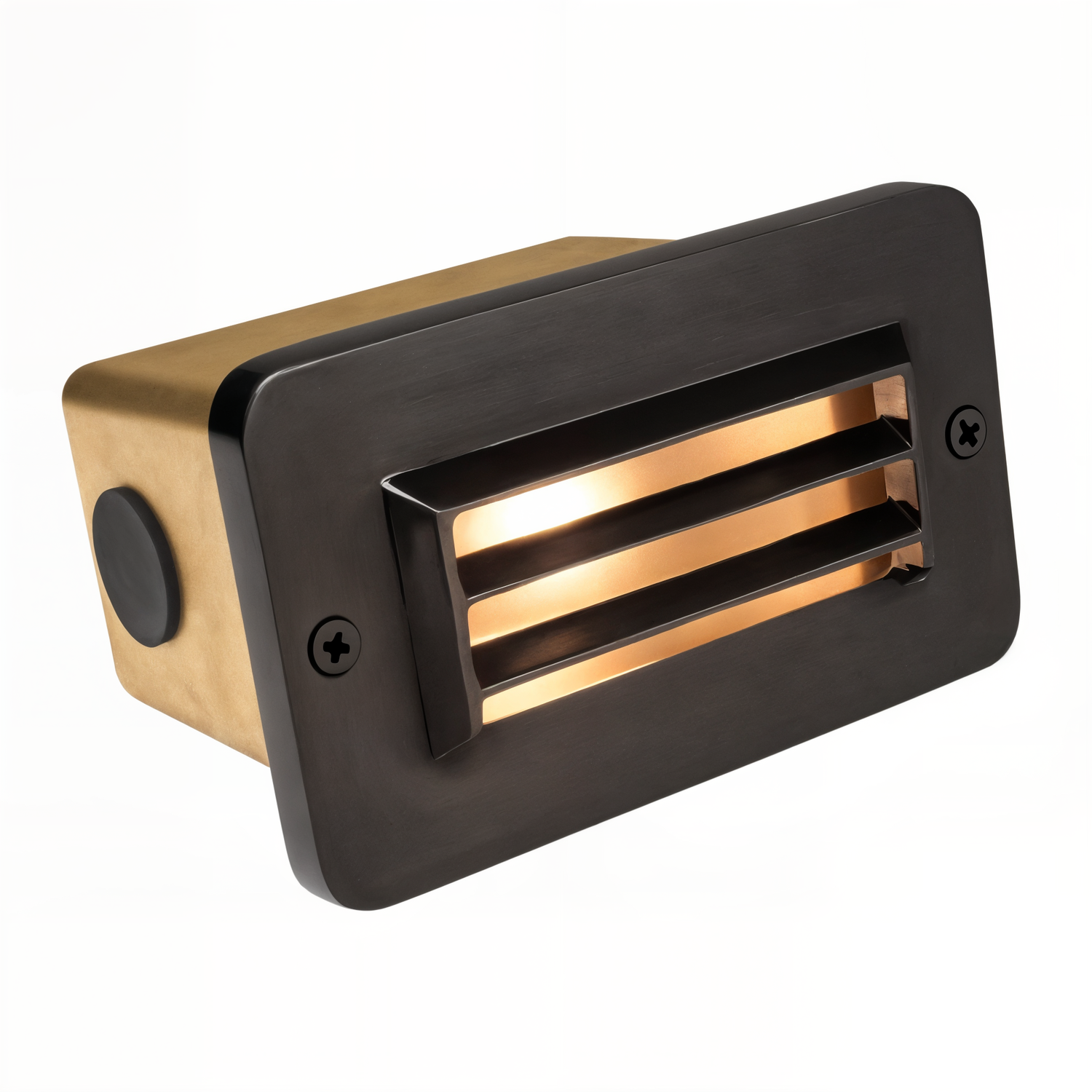

This cast brass 3-louver step light is designed for recessed installation and measures 5-1/8 inches across the customer-facing face. Output is 240 lumens at 2700K and 250 lumens at 3000K. A remote 12V transformer is required.
Features
-
- Architectural finish: Gun Metal (natural toning process; finish will vary)
- 3-louvered solid brass boxed step light
- Faceplate: 5-1/8" W x 3-1/8" H; approx. 2-1/8" depth; 3/8" lip
- Heavy-duty corrosion-resistant cast brass housing
- Die-cast brass faceplate with silicone gasket for a weather-tight seal
- Frosted heat-resistant glass lens
- Socket: Bayonet (SCB) socket attached to an aluminum reflector
- Remote 12V transformer required
- LED lamp operating voltage listed as 9–17V and 8–21V
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, approx. 35W halogen equivalent, dimmable, 25,000-hour rated life, efficacy around 96 Lumens/W
- Limited lifetime warranty on fixture housing against manufacturer defects
- 5-year manufacturer's warranty on lamps
This cast brass 3-louver step light is designed for recessed installation and measures 5-1/8 inches across the customer-facing face. Output is 240 lumens at 2700K and 250 lumens at 3000K. A remote 12V transformer is required.
Features
-
- Architectural finish: Gun Metal (natural toning process; finish will vary)
- 3-louvered solid brass boxed step light
- Faceplate: 5-1/8" W x 3-1/8" H; approx. 2-1/8" depth; 3/8" lip
- Heavy-duty corrosion-resistant cast brass housing
- Die-cast brass faceplate with silicone gasket for a weather-tight seal
- Frosted heat-resistant glass lens
- Socket: Bayonet (SCB) socket attached to an aluminum reflector
- Remote 12V transformer required
- LED lamp operating voltage listed as 9–17V and 8–21V
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, approx. 35W halogen equivalent, dimmable, 25,000-hour rated life, efficacy around 96 Lumens/W
- Limited lifetime warranty on fixture housing against manufacturer defects
- 5-year manufacturer's warranty on lamps
Overview
This cast brass 3-louver step light is designed for recessed installation and measures 5-1/8 inches across the customer-facing face. Output is 240 lumens at 2700K and 250 lumens at 3000K. A remote 12V transformer is required.
Features
-
- Architectural finish: Gun Metal (natural toning process; finish will vary)
- 3-louvered solid brass boxed step light
- Faceplate: 5-1/8" W x 3-1/8" H; approx. 2-1/8" depth; 3/8" lip
- Heavy-duty corrosion-resistant cast brass housing
- Die-cast brass faceplate with silicone gasket for a weather-tight seal
- Frosted heat-resistant glass lens
- Socket: Bayonet (SCB) socket attached to an aluminum reflector
- Remote 12V transformer required
- LED lamp operating voltage listed as 9–17V and 8–21V
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, approx. 35W halogen equivalent, dimmable, 25,000-hour rated life, efficacy around 96 Lumens/W
- Limited lifetime warranty on fixture housing against manufacturer defects
- 5-year manufacturer's warranty on lamps
Specifications
| Brass 3-Louver Glass Lens Step Light, Recessed, 5-1/8 Inch, Gun Metal, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 5-1/8" W x 3-1/8" H; D Approx. 2-1/8"; 3/8" lip |
| Finish | Gun Metal |
| Material | Cast brass housing with die-cast brass faceplate and frosted heat-resistant glass lens |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing, Five (5) years Manufacturer's Warranty for LED module |
