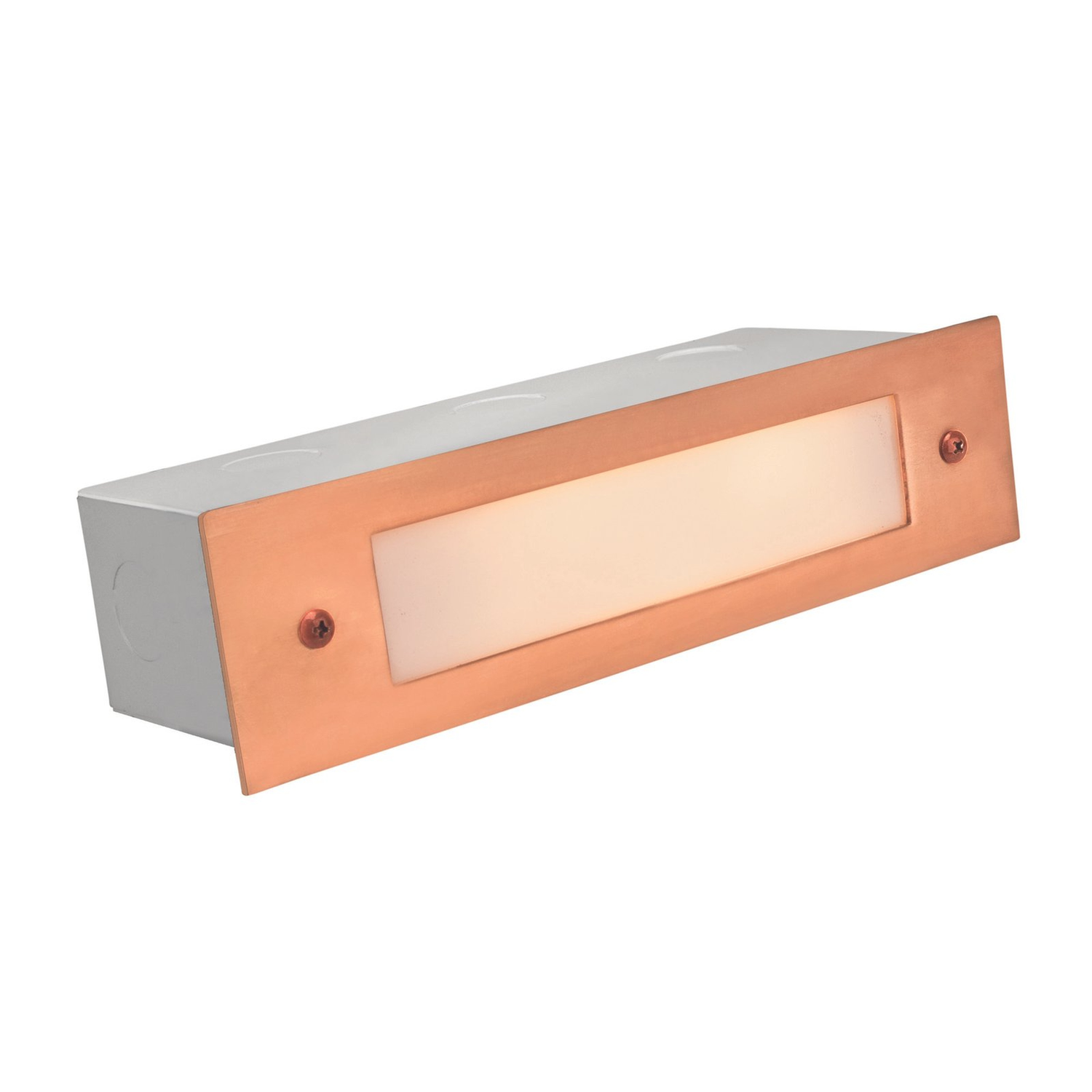

This Raw Copper lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Architectural-grade lensed brick and step light with Raw Copper faceplate
- Includes 2.5W bayonet LED lamp: 240 lumens at 2700K and 250 lumens at 3000K, CRI 80, dimmable, ~25,000-hour rated life
- Sockets: (2) SCB bayonet sockets on aluminum reflector; lamp allowance up to 27W per lamp
- 12V low-voltage system; LED voltage range 8–21V; remote transformer required
- Heavy-duty corrosion-resistant galvanized steel recessed back box with self-leveling adjustable bars for masonry installs
- High-impact white frosted polycarbonate lens with silicone gasket
- Prewired with 12" direct-burial cord
- Faceplate dimensions: 9" W x 2-1/4" H
- Back box dimensions: approx 8" L x 3" D x 2" H
- Ship weight: ~4 lbs
This Raw Copper lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Architectural-grade lensed brick and step light with Raw Copper faceplate
- Includes 2.5W bayonet LED lamp: 240 lumens at 2700K and 250 lumens at 3000K, CRI 80, dimmable, ~25,000-hour rated life
- Sockets: (2) SCB bayonet sockets on aluminum reflector; lamp allowance up to 27W per lamp
- 12V low-voltage system; LED voltage range 8–21V; remote transformer required
- Heavy-duty corrosion-resistant galvanized steel recessed back box with self-leveling adjustable bars for masonry installs
- High-impact white frosted polycarbonate lens with silicone gasket
- Prewired with 12" direct-burial cord
- Faceplate dimensions: 9" W x 2-1/4" H
- Back box dimensions: approx 8" L x 3" D x 2" H
- Ship weight: ~4 lbs
Overview
This Raw Copper lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Architectural-grade lensed brick and step light with Raw Copper faceplate
- Includes 2.5W bayonet LED lamp: 240 lumens at 2700K and 250 lumens at 3000K, CRI 80, dimmable, ~25,000-hour rated life
- Sockets: (2) SCB bayonet sockets on aluminum reflector; lamp allowance up to 27W per lamp
- 12V low-voltage system; LED voltage range 8–21V; remote transformer required
- Heavy-duty corrosion-resistant galvanized steel recessed back box with self-leveling adjustable bars for masonry installs
- High-impact white frosted polycarbonate lens with silicone gasket
- Prewired with 12" direct-burial cord
- Faceplate dimensions: 9" W x 2-1/4" H
- Back box dimensions: approx 8" L x 3" D x 2" H
- Ship weight: ~4 lbs
Specifications
| Copper Lensed Brick Step Light, Recessed, 9 Inch, Raw Copper, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| LED Heads | 2 |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate: 9" W x 2-1/4" H; Back box: Approx. 8" L x 3" D x 2" H |
| Finish | Raw Copper |
| Material | Raw copper faceplate; galvanized steel recessed back box; white frosted polycarbonate lens; silicone gasket |
| Lifetime | 25,000 Hours |
| Warranty | Limited warranty on copper fixture housing per manufacturer terms; Five (5) years warranty on LED module |
