Brass Glass Lens Brick Step Light, Recessed, 8-1/4 Inch, Antique Bronze, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

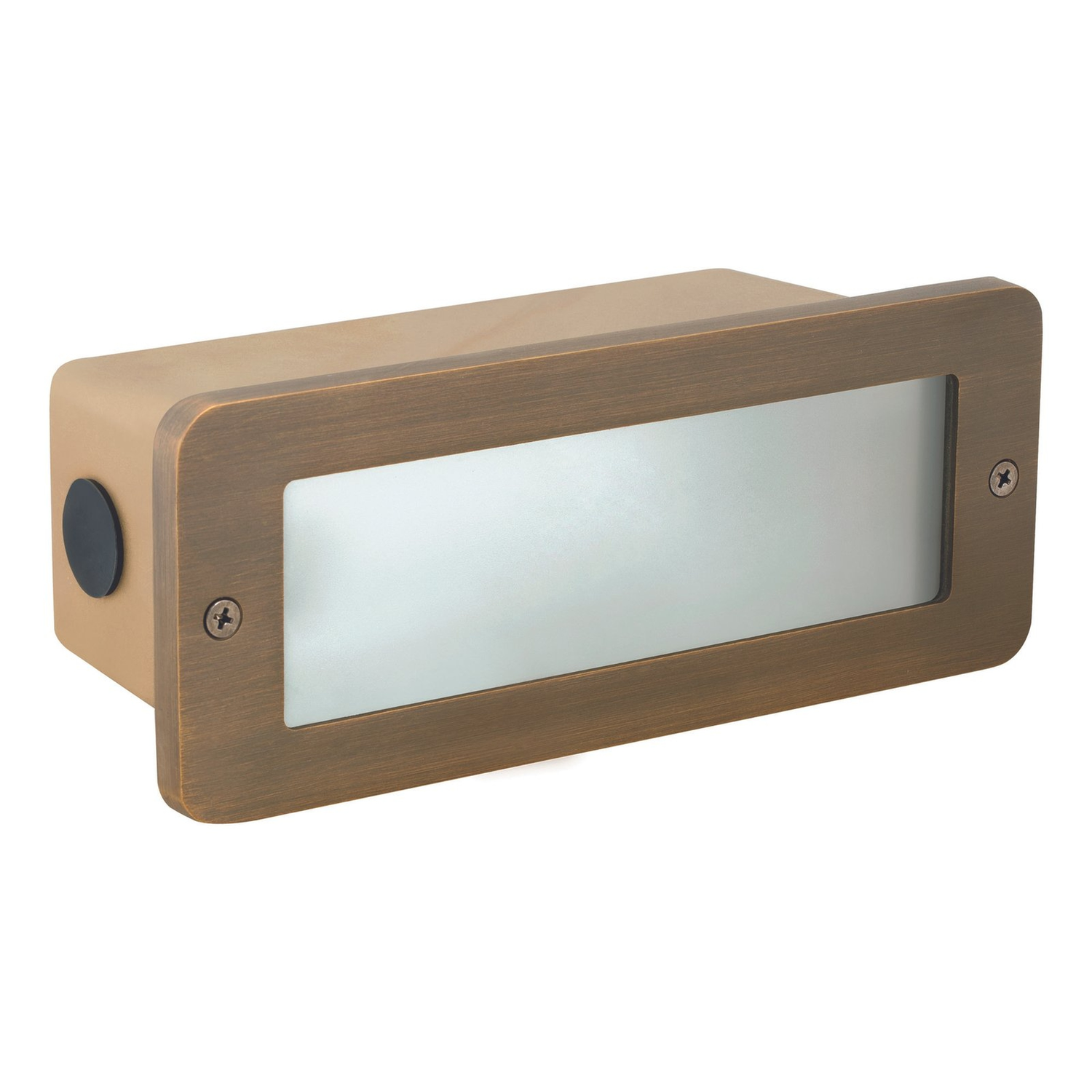

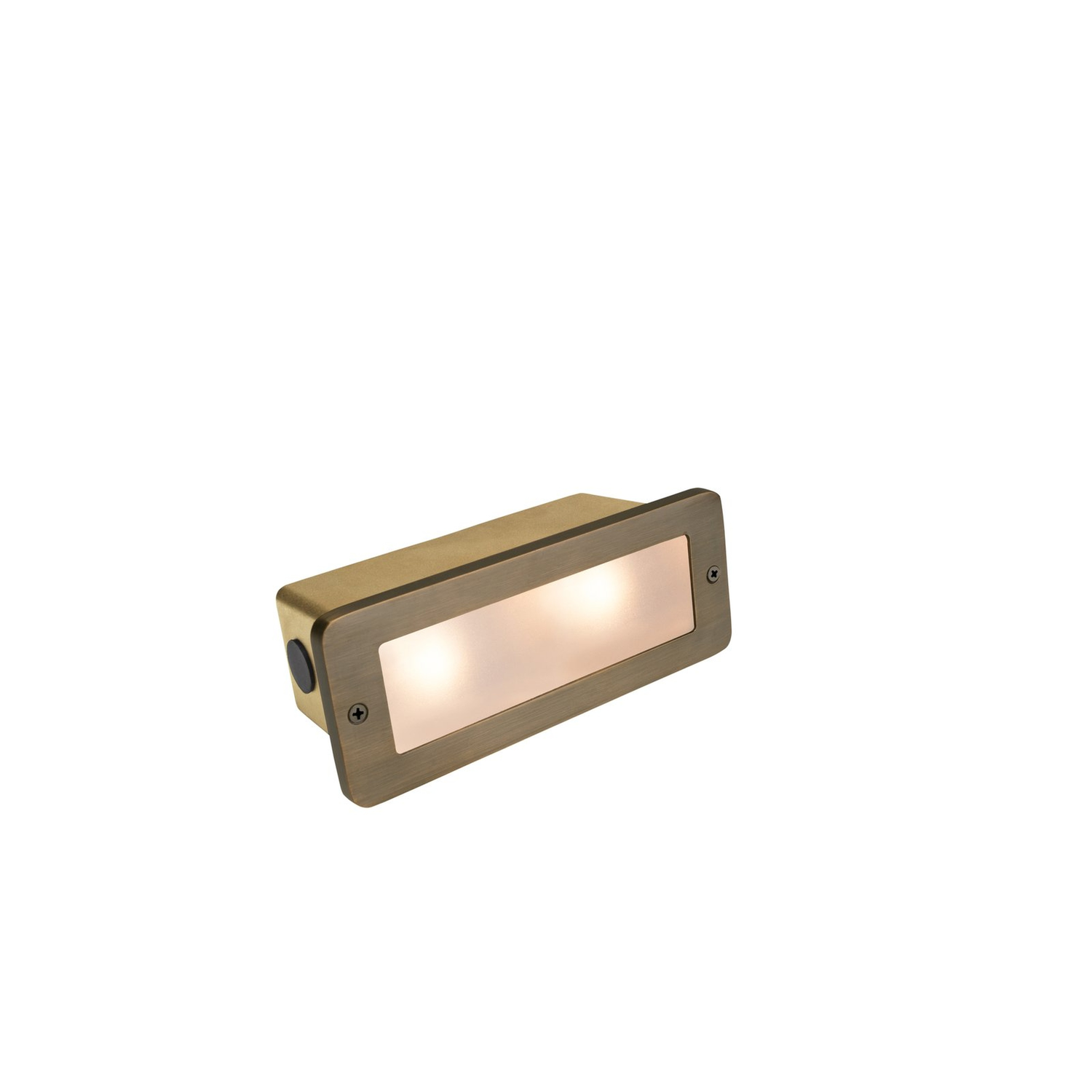

This Antique Bronze brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Lensed solid brass boxed step and brick light designed for recessed or surface installation
- Heavy-duty, corrosion-resistant cast brass housing with die-cast brass faceplate and silicone gasket for weather-tight protection
- Antique Bronze finish with natural toning
- Includes 2 x 2.5W LED lamps: 240 lumens at 2700K and 250 lumens at 3000K, warm-white output, CRI 80, dimmable; rated life 25,000 hours; output applies to each included lamp, and total fixture output is not stated
- LED voltage range 8–21V; remote 12V transformer required
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord; recessed-mount back box with multiple 1/2" NPT inlets
- Frosted heat-resistant glass lens providing even distribution
- Bulb base: 2 x SCB
- Faceplate: 8.25" W x 3.25" H
- Accepts 12V SCB halogen up to 27W per socket (35W equivalency)
- Warranty: Limited lifetime fixture warranty
This Antique Bronze brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Lensed solid brass boxed step and brick light designed for recessed or surface installation
- Heavy-duty, corrosion-resistant cast brass housing with die-cast brass faceplate and silicone gasket for weather-tight protection
- Antique Bronze finish with natural toning
- Includes 2 x 2.5W LED lamps: 240 lumens at 2700K and 250 lumens at 3000K, warm-white output, CRI 80, dimmable; rated life 25,000 hours; output applies to each included lamp, and total fixture output is not stated
- LED voltage range 8–21V; remote 12V transformer required
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord; recessed-mount back box with multiple 1/2" NPT inlets
- Frosted heat-resistant glass lens providing even distribution
- Bulb base: 2 x SCB
- Faceplate: 8.25" W x 3.25" H
- Accepts 12V SCB halogen up to 27W per socket (35W equivalency)
- Warranty: Limited lifetime fixture warranty
Overview
This Antique Bronze brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Lensed solid brass boxed step and brick light designed for recessed or surface installation
- Heavy-duty, corrosion-resistant cast brass housing with die-cast brass faceplate and silicone gasket for weather-tight protection
- Antique Bronze finish with natural toning
- Includes 2 x 2.5W LED lamps: 240 lumens at 2700K and 250 lumens at 3000K, warm-white output, CRI 80, dimmable; rated life 25,000 hours; output applies to each included lamp, and total fixture output is not stated
- LED voltage range 8–21V; remote 12V transformer required
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord; recessed-mount back box with multiple 1/2" NPT inlets
- Frosted heat-resistant glass lens providing even distribution
- Bulb base: 2 x SCB
- Faceplate: 8.25" W x 3.25" H
- Accepts 12V SCB halogen up to 27W per socket (35W equivalency)
- Warranty: Limited lifetime fixture warranty
Specifications
| Brass Glass Lens Brick Step Light, Recessed, 8-1/4 Inch, Antique Bronze, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 8-1/4" W x 3-1/4" H |
| Finish | Antique Bronze |
| Material | Cast brass housing with die-cast brass faceplate |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing and faceplate against manufacturer's defects; five (5) year manufacturer's warranty on the LED lamp |
