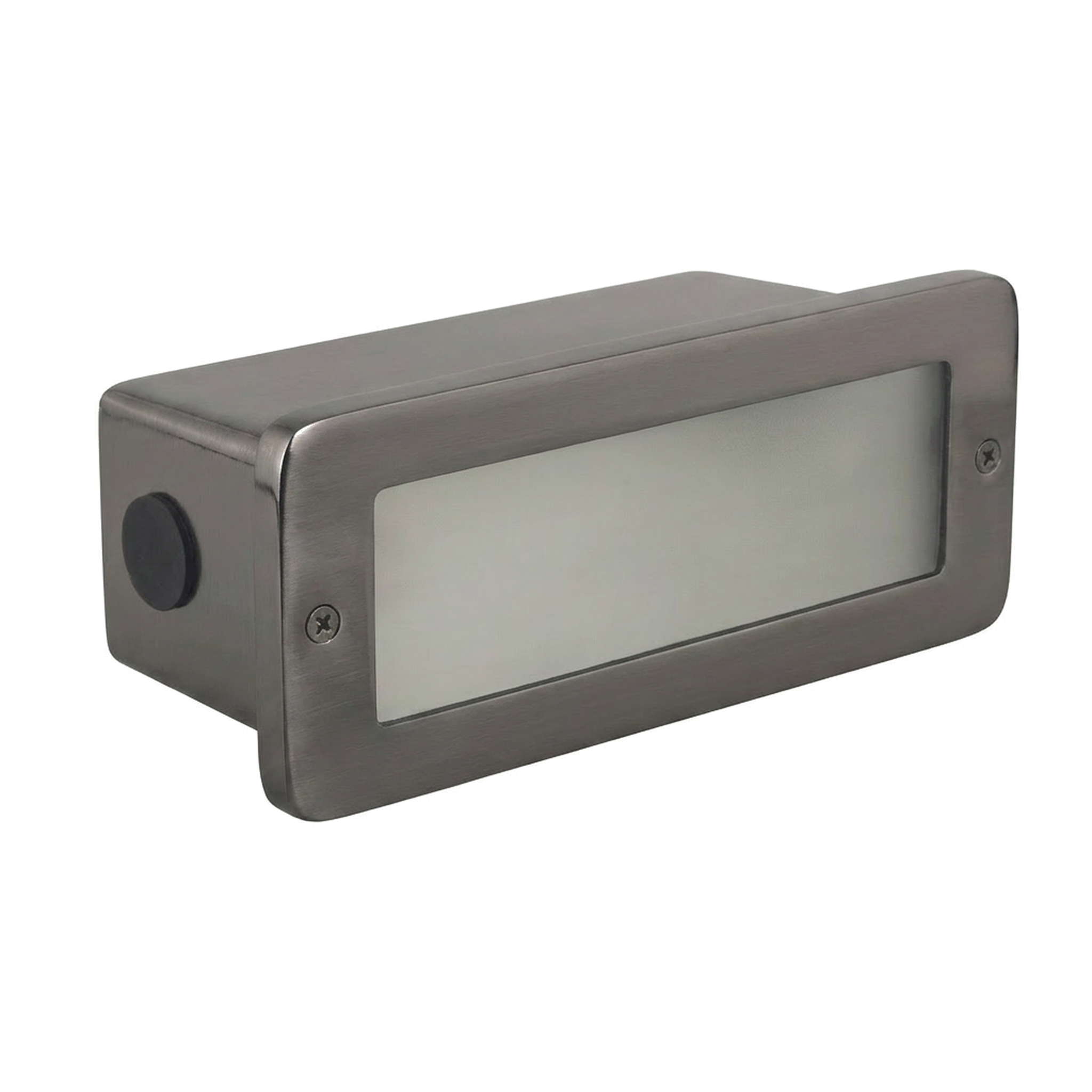

Brass Glass Lens Brick Step Light, Recessed, 8-1/4 Inch, Gun Metal, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Gun Metal brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Solid brass boxed step & brick light with heavy-duty corrosion-resistant cast brass housing and die-cast brass faceplate; Gun Metal finish
- Frosted heat-resistant glass lens with silicone gasket for weather-tight protection
- Two single-contact bayonet (SCB) sockets mounted to an aluminum reflector; 27W max halogen
- Includes bundled bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, 25,000-hour life; 35W halogen equivalent; output applies to each included lamp, and total fixture output is not stated
- Requires remote 12V transformer; operating range 8–21V
- Prewired with 3 ft of 18-2 SPT1-W direct-burial cord; surface-mount faceplate supplied
- Recessed back box recommended for concrete or masonry with (5) x 1/2 Inch NPT inlets
- Warranty: Limited lifetime fixture warranty
This Gun Metal brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Solid brass boxed step & brick light with heavy-duty corrosion-resistant cast brass housing and die-cast brass faceplate; Gun Metal finish
- Frosted heat-resistant glass lens with silicone gasket for weather-tight protection
- Two single-contact bayonet (SCB) sockets mounted to an aluminum reflector; 27W max halogen
- Includes bundled bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, 25,000-hour life; 35W halogen equivalent; output applies to each included lamp, and total fixture output is not stated
- Requires remote 12V transformer; operating range 8–21V
- Prewired with 3 ft of 18-2 SPT1-W direct-burial cord; surface-mount faceplate supplied
- Recessed back box recommended for concrete or masonry with (5) x 1/2 Inch NPT inlets
- Warranty: Limited lifetime fixture warranty
Overview
This Gun Metal brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Solid brass boxed step & brick light with heavy-duty corrosion-resistant cast brass housing and die-cast brass faceplate; Gun Metal finish
- Frosted heat-resistant glass lens with silicone gasket for weather-tight protection
- Two single-contact bayonet (SCB) sockets mounted to an aluminum reflector; 27W max halogen
- Includes bundled bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, 25,000-hour life; 35W halogen equivalent; output applies to each included lamp, and total fixture output is not stated
- Requires remote 12V transformer; operating range 8–21V
- Prewired with 3 ft of 18-2 SPT1-W direct-burial cord; surface-mount faceplate supplied
- Recessed back box recommended for concrete or masonry with (5) x 1/2 Inch NPT inlets
- Warranty: Limited lifetime fixture warranty
Specifications
| Brass Glass Lens Brick Step Light, Recessed, 8-1/4 Inch, Gun Metal, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate Approx. 8-1/4" W x 3-1/4" H |
| Finish | Gun Metal |
| Material | Cast brass housing; die-cast brass faceplate |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing/faceplate and a 5-year manufacturer warranty for the lamps |
