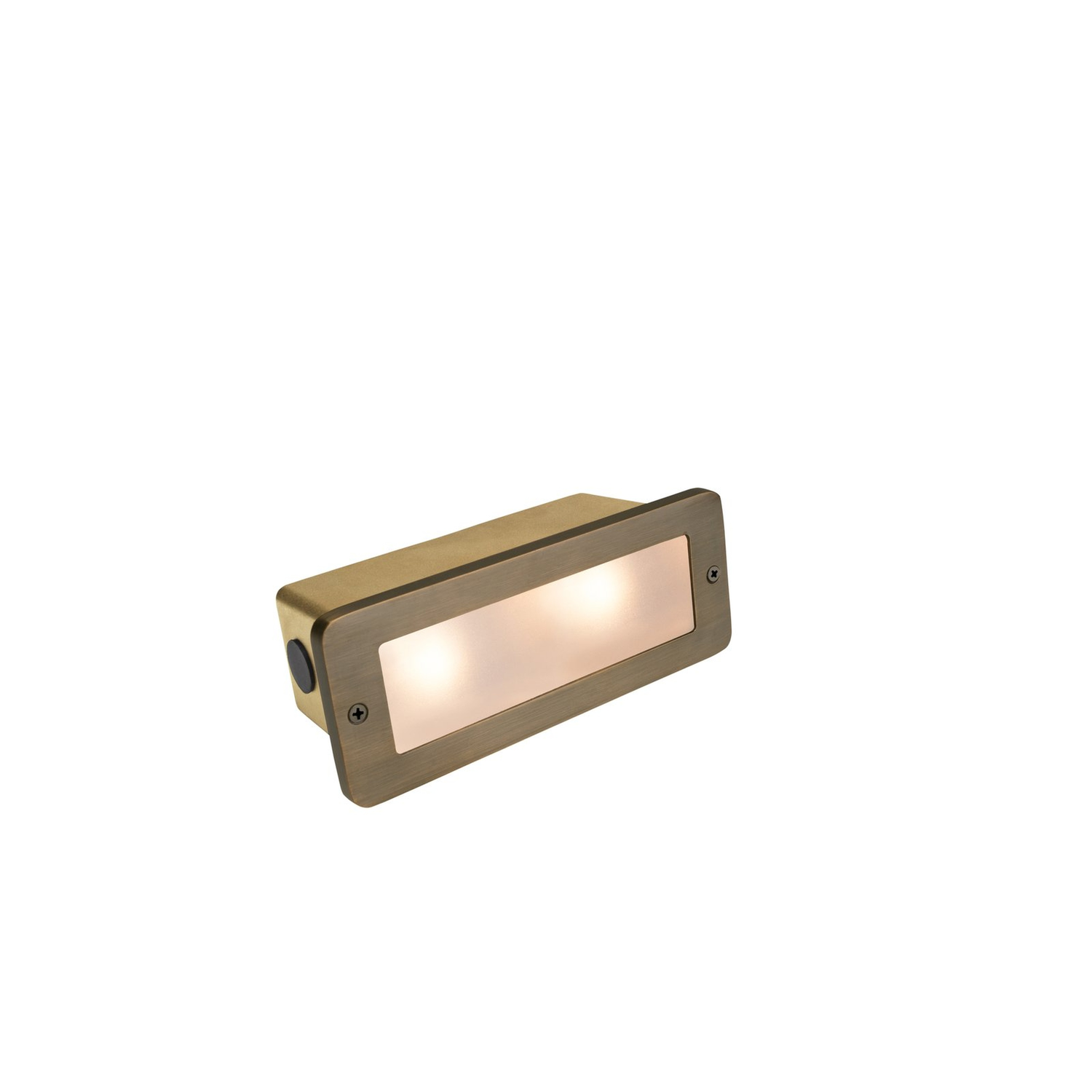

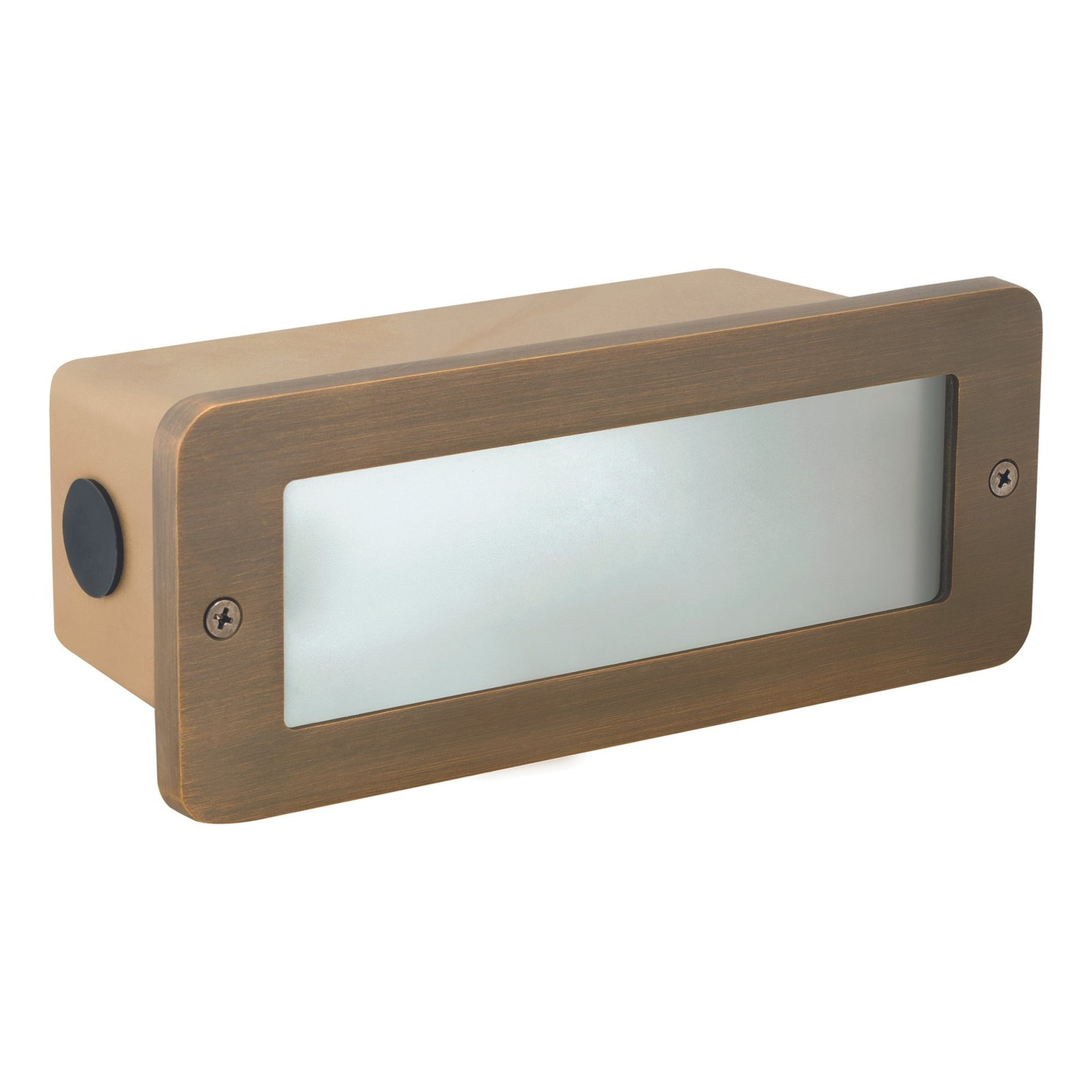

Brass Glass Lens Brick Step Light, Recessed, 8-1/4 Inch, Antique Bronze, 210 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Antique Bronze brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Architectural-grade brass lensed brick/step light for concrete, brick, and masonry installations
- Heavy-duty corrosion-resistant cast brass housing and die-cast brass faceplate with silicone gasket for weather-tight protection
- Finish: Antique Bronze
- Frosted heat-resistant glass lens; recessed mount back box with three 1/2" NPT inlets (3 x 1/2" NPT)
- Includes two SCB LED lamps (2W each): 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, dimmable, 25,000-hour rated life; output applies to each included lamp, and total fixture output is not stated
- Requires remote 12V transformer; accepts 8–21V input
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord; silicone-filled wire nut sold separately
- Faceplate dimensions: 8-1/4" W x 3-1/4" H
- Halogen option supports up to 27W per socket
- Warranty: Limited lifetime fixture warranty
This Antique Bronze brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Architectural-grade brass lensed brick/step light for concrete, brick, and masonry installations
- Heavy-duty corrosion-resistant cast brass housing and die-cast brass faceplate with silicone gasket for weather-tight protection
- Finish: Antique Bronze
- Frosted heat-resistant glass lens; recessed mount back box with three 1/2" NPT inlets (3 x 1/2" NPT)
- Includes two SCB LED lamps (2W each): 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, dimmable, 25,000-hour rated life; output applies to each included lamp, and total fixture output is not stated
- Requires remote 12V transformer; accepts 8–21V input
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord; silicone-filled wire nut sold separately
- Faceplate dimensions: 8-1/4" W x 3-1/4" H
- Halogen option supports up to 27W per socket
- Warranty: Limited lifetime fixture warranty
Overview
This Antique Bronze brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Architectural-grade brass lensed brick/step light for concrete, brick, and masonry installations
- Heavy-duty corrosion-resistant cast brass housing and die-cast brass faceplate with silicone gasket for weather-tight protection
- Finish: Antique Bronze
- Frosted heat-resistant glass lens; recessed mount back box with three 1/2" NPT inlets (3 x 1/2" NPT)
- Includes two SCB LED lamps (2W each): 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, dimmable, 25,000-hour rated life; output applies to each included lamp, and total fixture output is not stated
- Requires remote 12V transformer; accepts 8–21V input
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord; silicone-filled wire nut sold separately
- Faceplate dimensions: 8-1/4" W x 3-1/4" H
- Halogen option supports up to 27W per socket
- Warranty: Limited lifetime fixture warranty
Specifications
| Brass Glass Lens Brick Step Light, Recessed, 8-1/4 Inch, Antique Bronze, 210 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 200 - 210LM |
| Efficacy | 100LM/W |
| Wattage | 2W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 8-1/4" W x 3-1/4" H |
| Finish | Antique Bronze |
| Material | Cast brass housing with die-cast brass faceplate and silicone gasket |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime warranty on fixture housing; five (5) year manufacturer's warranty on the LED lamp. |
