Lensed Brick Step Light, Recessed, 9 Inch, Black, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

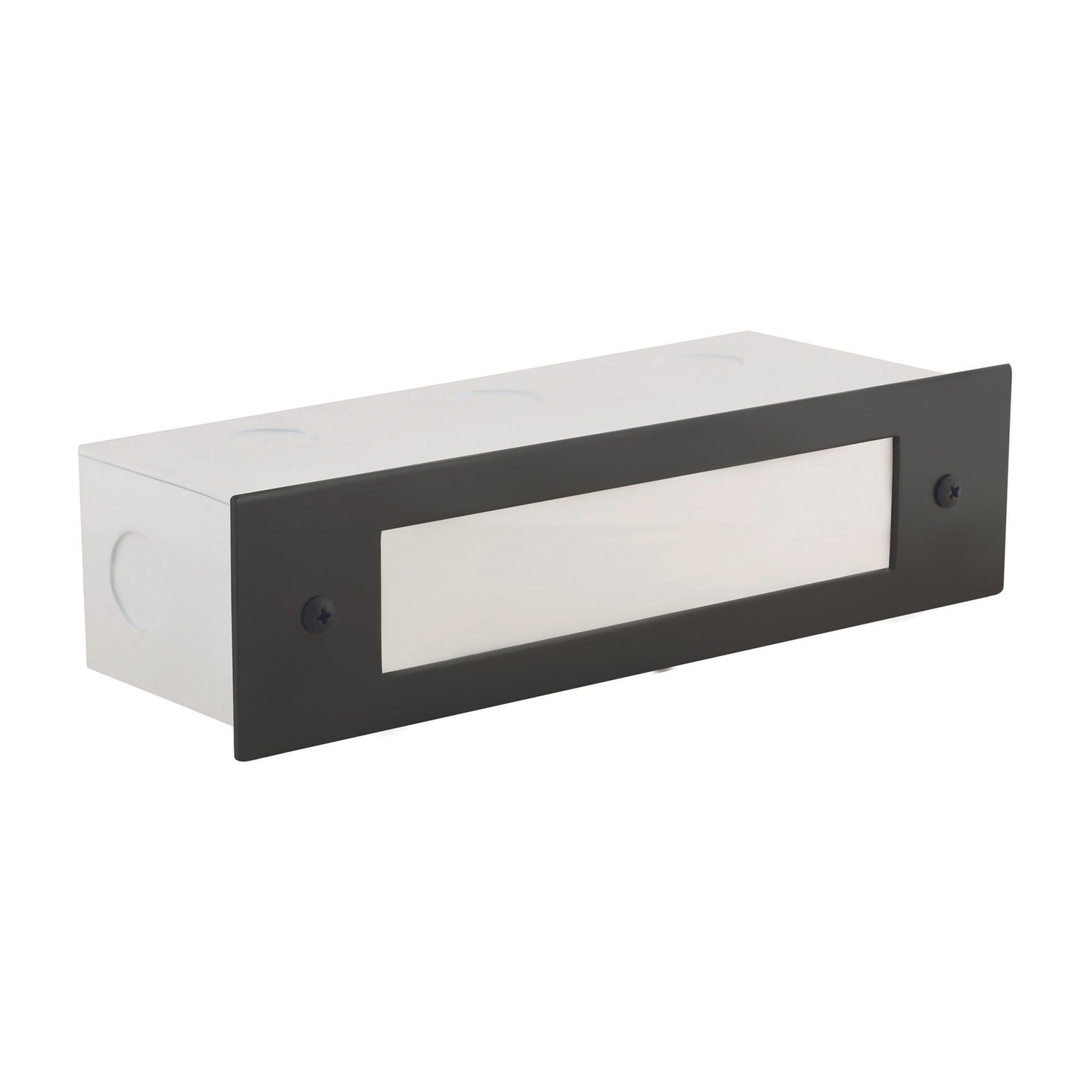

This Black lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Lensed boxed step/brick light with frosted white polycarbonate lens
- Stamped aluminum lensed faceplate with polyester UV coating; black finish
- Faceplate dimensions: 9" W x 2-1/4" H; depth approx 2–3"
- Heavy-duty corrosion-resistant galvanized steel recessed mounting box with self-leveling adjustable bars for concrete, brick, and masonry
- Silicone gasket seals faceplate to housing for weather-tight protection
- Two SCB (bayonet) sockets with aluminum reflector
- Includes two bayonet LED lamps: 2.5W each, 240 lumens at 2700K and 250 lumens at 3000K per lamp, CRI 80, dimmable, approx 25,000-hour rated life; output applies to each included lamp, and total fixture output is not stated
- LED operating range approx 8–21V; requires remote 12V transformer
- Fixture prewired with 12" direct-burial lead
- Surface-mount faceplate with recessed back box and self-leveling brackets
- Warranty: 5-year fixture warranty
This Black lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Lensed boxed step/brick light with frosted white polycarbonate lens
- Stamped aluminum lensed faceplate with polyester UV coating; black finish
- Faceplate dimensions: 9" W x 2-1/4" H; depth approx 2–3"
- Heavy-duty corrosion-resistant galvanized steel recessed mounting box with self-leveling adjustable bars for concrete, brick, and masonry
- Silicone gasket seals faceplate to housing for weather-tight protection
- Two SCB (bayonet) sockets with aluminum reflector
- Includes two bayonet LED lamps: 2.5W each, 240 lumens at 2700K and 250 lumens at 3000K per lamp, CRI 80, dimmable, approx 25,000-hour rated life; output applies to each included lamp, and total fixture output is not stated
- LED operating range approx 8–21V; requires remote 12V transformer
- Fixture prewired with 12" direct-burial lead
- Surface-mount faceplate with recessed back box and self-leveling brackets
- Warranty: 5-year fixture warranty
Overview
This Black lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Lensed boxed step/brick light with frosted white polycarbonate lens
- Stamped aluminum lensed faceplate with polyester UV coating; black finish
- Faceplate dimensions: 9" W x 2-1/4" H; depth approx 2–3"
- Heavy-duty corrosion-resistant galvanized steel recessed mounting box with self-leveling adjustable bars for concrete, brick, and masonry
- Silicone gasket seals faceplate to housing for weather-tight protection
- Two SCB (bayonet) sockets with aluminum reflector
- Includes two bayonet LED lamps: 2.5W each, 240 lumens at 2700K and 250 lumens at 3000K per lamp, CRI 80, dimmable, approx 25,000-hour rated life; output applies to each included lamp, and total fixture output is not stated
- LED operating range approx 8–21V; requires remote 12V transformer
- Fixture prewired with 12" direct-burial lead
- Surface-mount faceplate with recessed back box and self-leveling brackets
- Warranty: 5-year fixture warranty
Specifications
| Lensed Brick Step Light, Recessed, 9 Inch, Black, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| LED Heads | 2 |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 9" W x 2-1/4" H |
| Finish | Black |
| Material | Stamped aluminum faceplate; galvanized steel housing; frosted polycarbonate lens |
| Lifetime | 25,000 Hours |
| Warranty | Limited warranty on aluminum fixture housing per manufacturer terms; Five (5) years limited warranty on LED module |
