- Lumens: 240 - 250LM
- Voltage: Low Voltage
- Wattage: 2.5W
- Dimming: Dimmable
- Warranty: Limited warranty on aluminum fixture housing per manufacturer terms; Five (5) years limited warranty on LED module

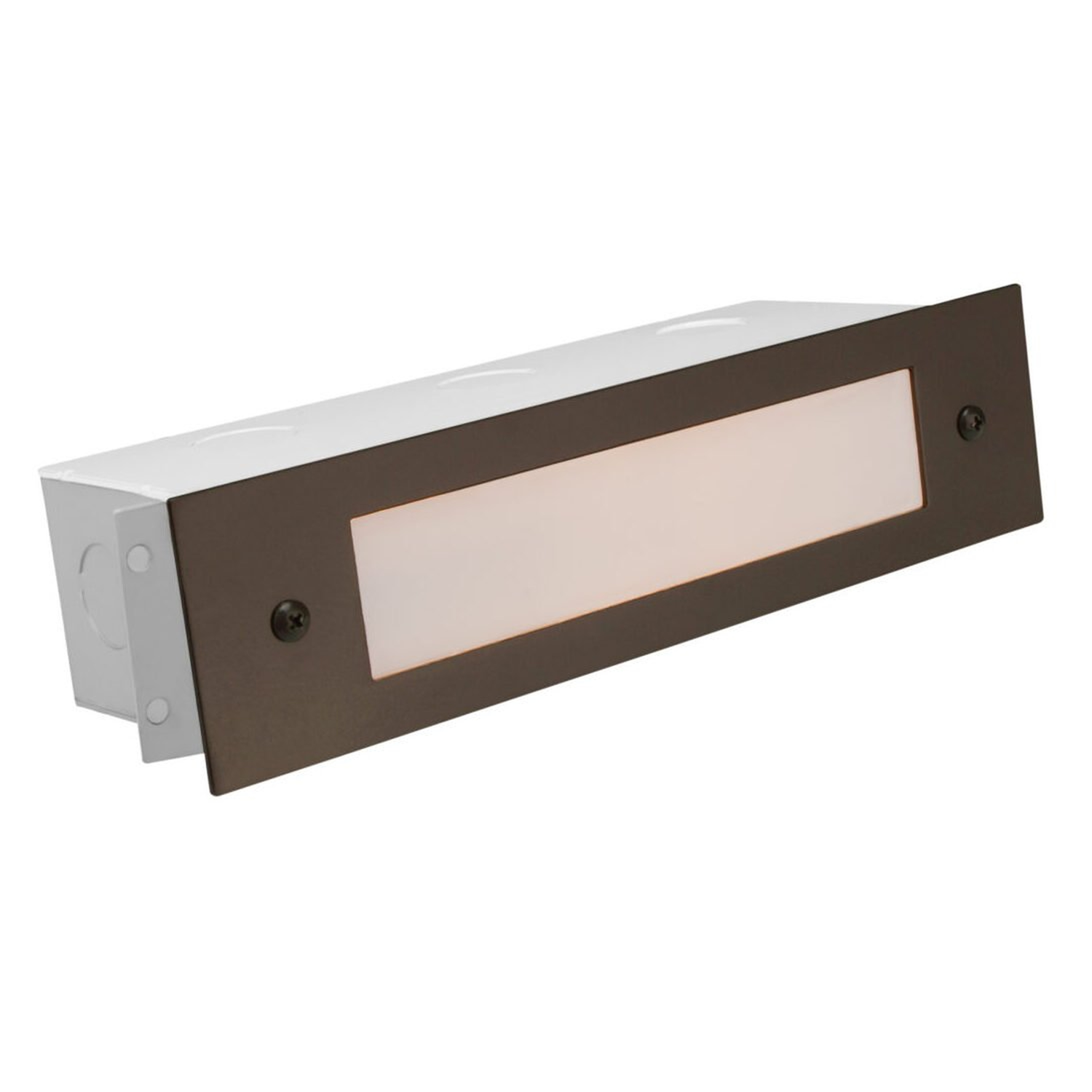

This Bronze lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Aluminum lensed step/brick light with frosted high-impact polycarbonate lens for even illumination
- Faceplate with polyester UV coating and silicone gasket sealing faceplate to housing
- Heavy-duty corrosion-resistant galvanized steel recessed mounting back box with self-leveling adjustable bars and 3 x 1/2" NPT conduit inlets
- Prewired with 12" direct-burial lead
- Surface mount supplied
- Recessed back box installation
- Size: 9" W x 2-1/4" H
- 12V system requires remote transformer; lamp operating range 8–21V
- Two bayonet (SCB) sockets
- Bundled lamps: 2 x bayonet LED lamp, 2.5W each, 240 lumens at 2700K and 250 lumens at 3000K total, CRI 80, 25,000-hour life, dimmable, 35W equivalency; output applies to each included lamp, and total fixture output is not stated
- Warranty: 5-year fixture warranty
