Lensed Brick Step Light, Recessed, 9 Inch, White, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

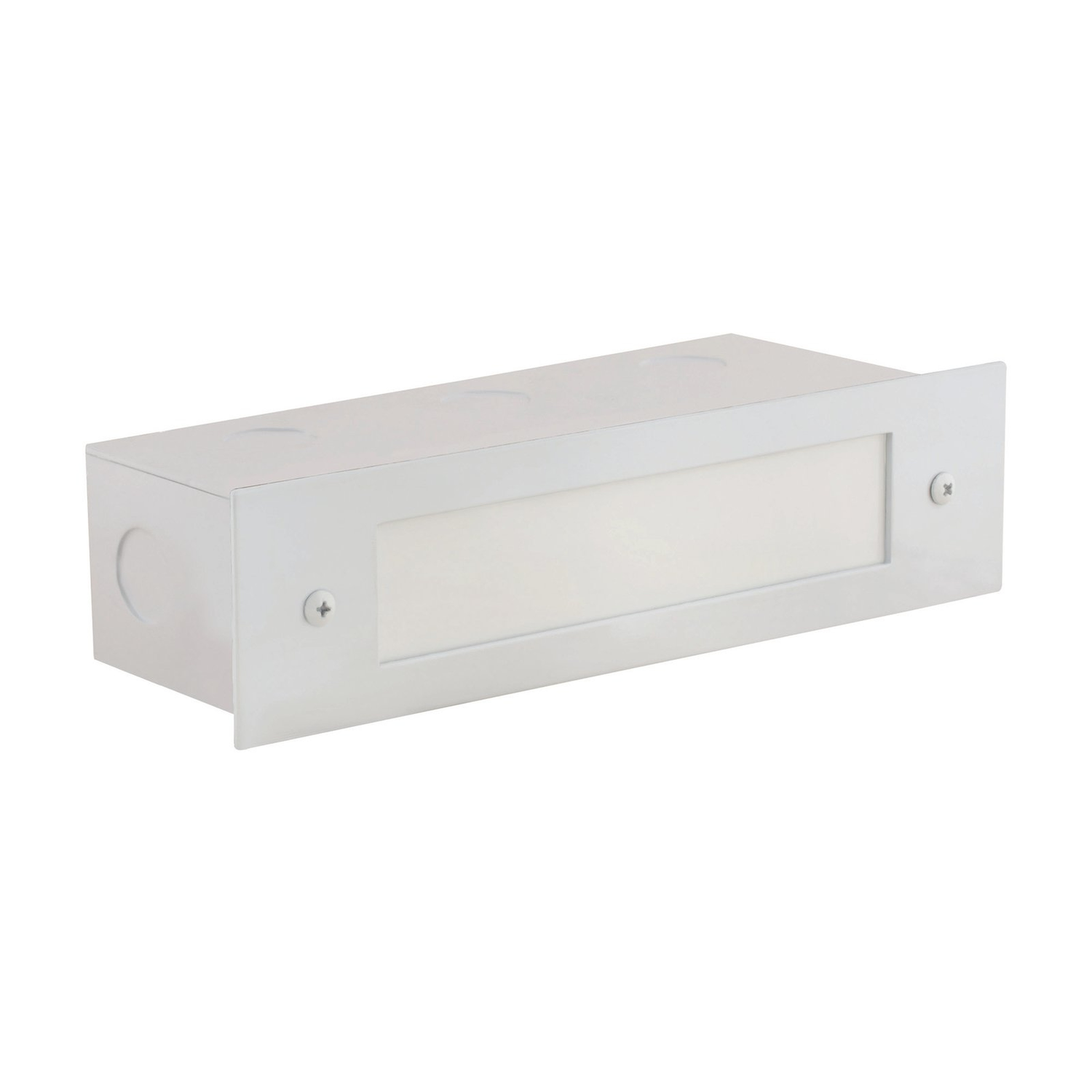

This White lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Lensed aluminum step/brick light with frosted polycarbonate lens and Faceplate with polyester UV coating
- Heavy-duty corrosion-resistant galvanized steel recessed back box with self-leveling adjustable mounting bars (best for concrete, brick, and masonry)
- Finish: White
- Includes two LED SCB lamps: 2.5W each, 240 lumens at 2700K and 250 lumens at 3000K, warm-white output, CRI 80; rated life 25,000 hours; approx 35W halogen equivalent; output applies to each included lamp, and total fixture output is not stated
- Two SCB (bayonet) sockets attached to aluminum reflector
- 12V system; LED lamp operating voltage range 8–21V; remote transformer required
- Prewired with 12" direct-burial cord
- Wire connector sold separately
- 3 x 1/2" NPT inlets
- Faceplate approx 9" W x 2-1/4" H; back box approx 8" W x 2" H; depth approx 3"
- Warranty: 5-year fixture warranty
This White lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Lensed aluminum step/brick light with frosted polycarbonate lens and Faceplate with polyester UV coating
- Heavy-duty corrosion-resistant galvanized steel recessed back box with self-leveling adjustable mounting bars (best for concrete, brick, and masonry)
- Finish: White
- Includes two LED SCB lamps: 2.5W each, 240 lumens at 2700K and 250 lumens at 3000K, warm-white output, CRI 80; rated life 25,000 hours; approx 35W halogen equivalent; output applies to each included lamp, and total fixture output is not stated
- Two SCB (bayonet) sockets attached to aluminum reflector
- 12V system; LED lamp operating voltage range 8–21V; remote transformer required
- Prewired with 12" direct-burial cord
- Wire connector sold separately
- 3 x 1/2" NPT inlets
- Faceplate approx 9" W x 2-1/4" H; back box approx 8" W x 2" H; depth approx 3"
- Warranty: 5-year fixture warranty
Overview
This White lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 240 lumens at 2700K and 250 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Lensed aluminum step/brick light with frosted polycarbonate lens and Faceplate with polyester UV coating
- Heavy-duty corrosion-resistant galvanized steel recessed back box with self-leveling adjustable mounting bars (best for concrete, brick, and masonry)
- Finish: White
- Includes two LED SCB lamps: 2.5W each, 240 lumens at 2700K and 250 lumens at 3000K, warm-white output, CRI 80; rated life 25,000 hours; approx 35W halogen equivalent; output applies to each included lamp, and total fixture output is not stated
- Two SCB (bayonet) sockets attached to aluminum reflector
- 12V system; LED lamp operating voltage range 8–21V; remote transformer required
- Prewired with 12" direct-burial cord
- Wire connector sold separately
- 3 x 1/2" NPT inlets
- Faceplate approx 9" W x 2-1/4" H; back box approx 8" W x 2" H; depth approx 3"
- Warranty: 5-year fixture warranty
Specifications
| Lensed Brick Step Light, Recessed, 9 Inch, White, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate Approx. 9" W x 2-1/4" H; Back box Approx. 8" W x 2" H; D Approx. 3" |
| Finish | White |
| Material | Stamped aluminum faceplate with polyester UV coating; frosted high-impact white polycarbonate lens |
| Lifetime | 25,000 Hours |
| Warranty | Five-year warranty on fixture housing/faceplate; Five (5) years warranty for LED module |
