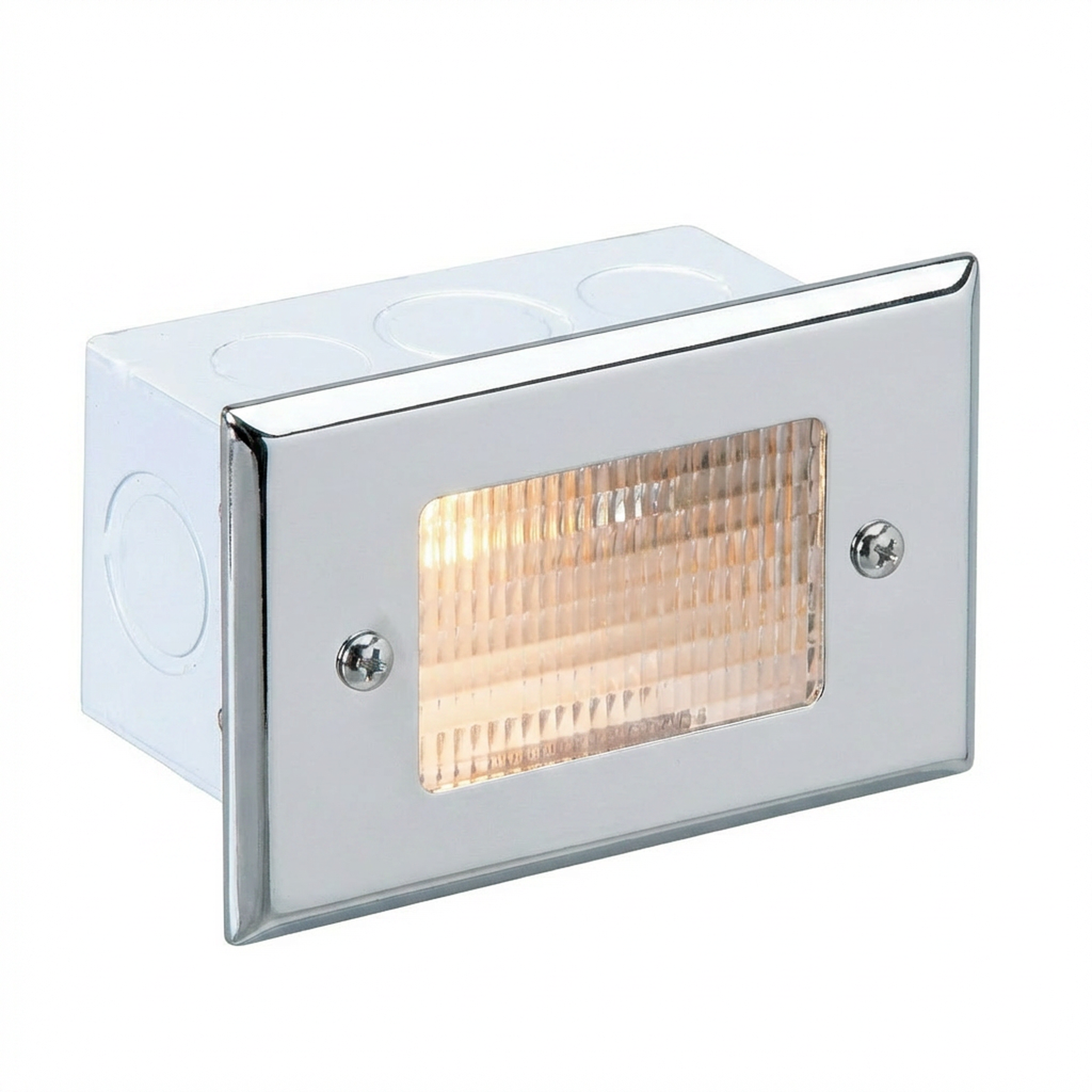

Lensed Step Light, Recessed, 5 Inch, Silver Plated, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This lensed step light is designed for recessed installation and has a 5 x 3-inch faceplate. Output is 240 lumens at 2700K and 250 lumens at 3000K. A remote 12V transformer is required.
Features
-
- Step & brick light with horizontal louvered faceplate
- Faceplate size: 5" W x 3" H
- Faceplate: stamped steel with silicone gasket; white powder-coated steel recessed mount box
- Site listing also shows an aluminum faceplate option
- Includes recessed back box (A1-161R) and self-leveling plate for concrete/brick/masonry
- recessed installation is also listed as a supplied option
- Prewired with 12" direct-burial lead
- Low-voltage system requires a remote 12V transformer
- LED lamp input range noted as 9–17V
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, 25,000-hour rated life
- Lamp performance:, CRI 80, dimmable, approx. 35W halogen equivalent, efficacy approx. 96 Lumens/W
- Installation: use 12V landscape power units (≤25A)
- Do not install within 10 ft of pools, spas, or fountains
- Warranty: 1-year fixture warranty
This lensed step light is designed for recessed installation and has a 5 x 3-inch faceplate. Output is 240 lumens at 2700K and 250 lumens at 3000K. A remote 12V transformer is required.
Features
-
- Step & brick light with horizontal louvered faceplate
- Faceplate size: 5" W x 3" H
- Faceplate: stamped steel with silicone gasket; white powder-coated steel recessed mount box
- Site listing also shows an aluminum faceplate option
- Includes recessed back box (A1-161R) and self-leveling plate for concrete/brick/masonry
- recessed installation is also listed as a supplied option
- Prewired with 12" direct-burial lead
- Low-voltage system requires a remote 12V transformer
- LED lamp input range noted as 9–17V
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, 25,000-hour rated life
- Lamp performance:, CRI 80, dimmable, approx. 35W halogen equivalent, efficacy approx. 96 Lumens/W
- Installation: use 12V landscape power units (≤25A)
- Do not install within 10 ft of pools, spas, or fountains
- Warranty: 1-year fixture warranty
Overview
This lensed step light is designed for recessed installation and has a 5 x 3-inch faceplate. Output is 240 lumens at 2700K and 250 lumens at 3000K. A remote 12V transformer is required.
Features
-
- Step & brick light with horizontal louvered faceplate
- Faceplate size: 5" W x 3" H
- Faceplate: stamped steel with silicone gasket; white powder-coated steel recessed mount box
- Site listing also shows an aluminum faceplate option
- Includes recessed back box (A1-161R) and self-leveling plate for concrete/brick/masonry
- recessed installation is also listed as a supplied option
- Prewired with 12" direct-burial lead
- Low-voltage system requires a remote 12V transformer
- LED lamp input range noted as 9–17V
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, 25,000-hour rated life
- Lamp performance:, CRI 80, dimmable, approx. 35W halogen equivalent, efficacy approx. 96 Lumens/W
- Installation: use 12V landscape power units (≤25A)
- Do not install within 10 ft of pools, spas, or fountains
- Warranty: 1-year fixture warranty
Specifications
| Lensed Step Light, Recessed, 5 Inch, Silver Plated, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 5" W x 3" H |
| Finish | Silver Plated |
| Material | Stamped steel faceplate with silicone gasket and white powder-coated steel recessed mount box. Product page also lists an aluminum faceplate option |
| Lifetime | 25,000 Hours |
| Warranty | Five (5) years warranty on fixture housing against manufacturer defects, Five (5) years Manufacturer's Warranty for LED module |
