- Lumens: 240 - 250LM
- Voltage: Low Voltage
- Wattage: 2.5W
- Dimming: Dimmable
- Warranty: Limited lifetime warranty on fixture housing, Five (5) years Manufacturer's Warranty for LED module

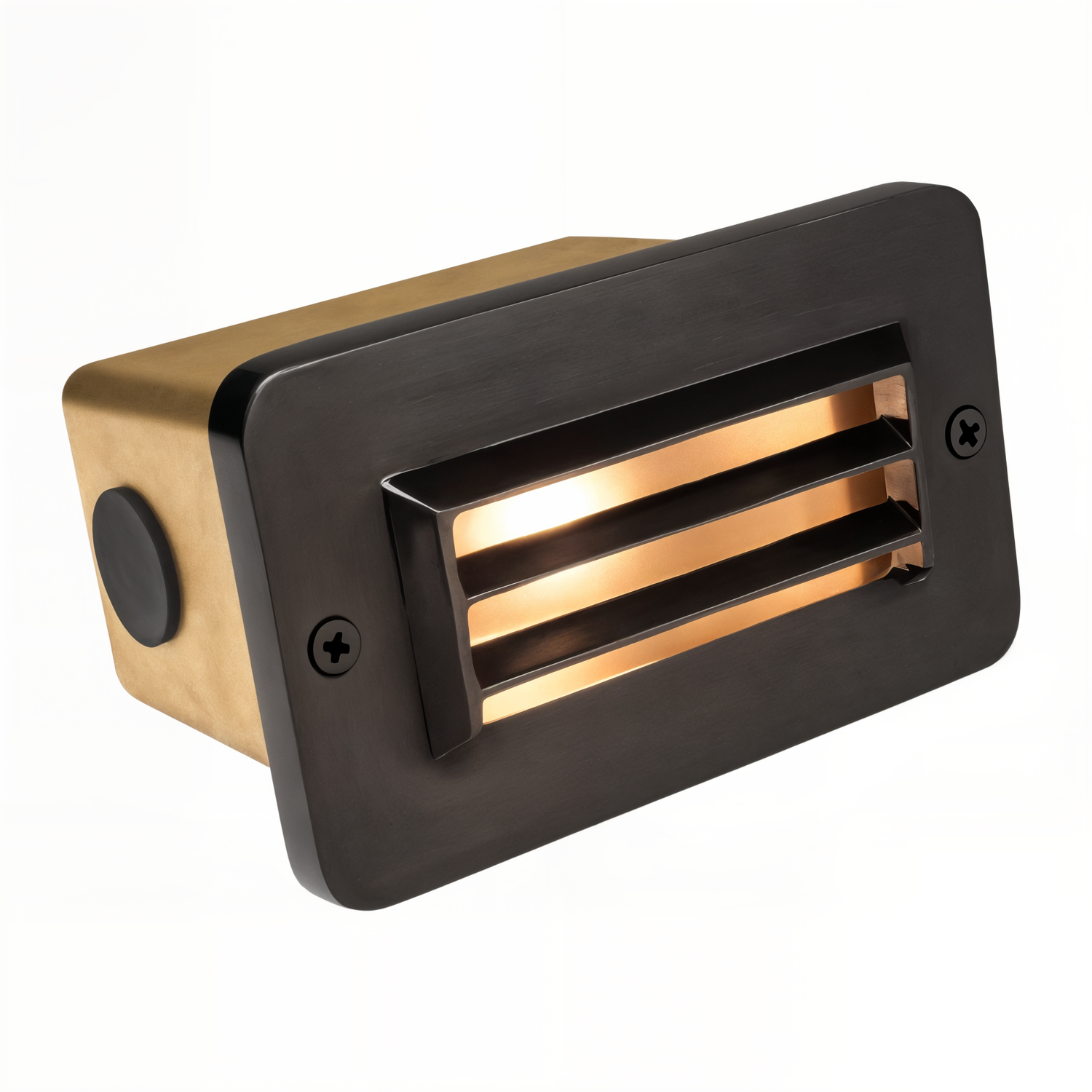

This cast brass 3-louver step light is designed for recessed installation and measures 5-1/8 inches across the customer-facing face. Output is 240 lumens at 2700K and 250 lumens at 3000K. A remote 12V transformer is required.
Features
-
- Architectural finish: Gun Metal (natural toning process; finish will vary)
- 3-louvered solid brass boxed step light
- Faceplate: 5-1/8" W x 3-1/8" H; approx. 2-1/8" depth; 3/8" lip
- Heavy-duty corrosion-resistant cast brass housing
- Die-cast brass faceplate with silicone gasket for a weather-tight seal
- Frosted heat-resistant glass lens
- Socket: Bayonet (SCB) socket attached to an aluminum reflector
- Remote 12V transformer required
- LED lamp operating voltage listed as 9–17V and 8–21V
- Includes bayonet LED lamp: 2.5W, 240 lumens at 2700K and 250 lumens at 3000K, approx. 35W halogen equivalent, dimmable, 25,000-hour rated life, efficacy around 96 Lumens/W
- Limited lifetime warranty on fixture housing against manufacturer defects
- 5-year manufacturer's warranty on lamps
