- Lumens: 200 - 210LM
- Voltage: Low Voltage
- Wattage: 2W
- Dimming: Dimmable
- Warranty: Limited lifetime warranty on fixture housing, Five (5) years limited warranty on LED module

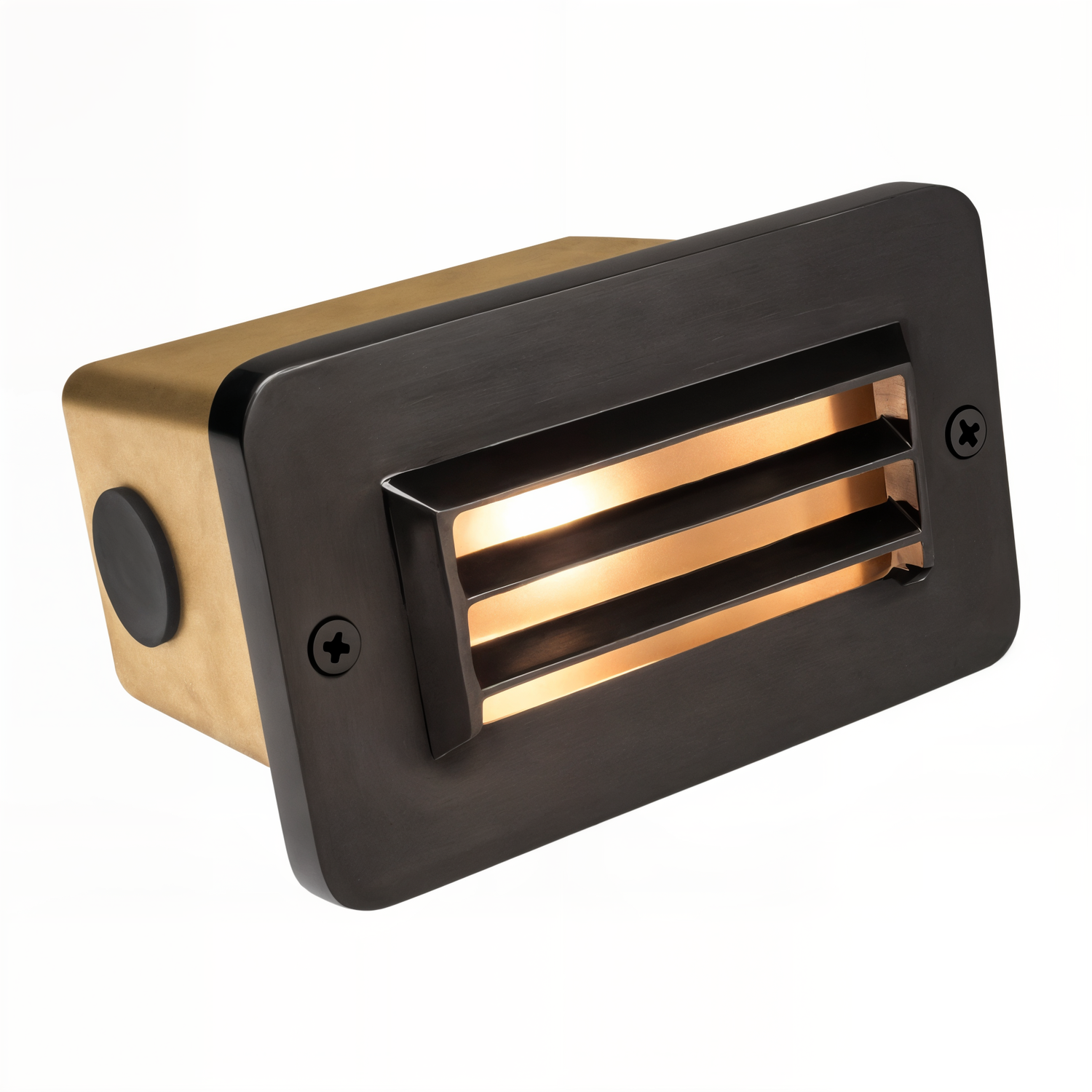

This cast brass 3-louver step light is designed for recessed installation and measures 5-1/8 inches across the customer-facing face. Output is 200 lumens at 2700K and 210 lumens at 3000K. A remote 12V transformer is required.
Features
-
- 3-louvered solid brass boxed step light, architectural grade, designed for steps and brick installations
- Gun Metal finish with natural toning process (finish will vary)
- Heavy-duty corrosion-resistant cast brass housing with die-cast brass faceplate and silicone gasket for a weather-tight seal
- Frosted heat-resistant glass lens
- Bayonet (SCB) socket mounted to an aluminum reflector
- Includes bayonet LED lamp: 2W, 200 lumens at 2700K and 210 lumens at 3000K, 20W halogen equivalent; operates on remote 12V transformer; LED operating voltage listed as 9–17V and 8–21V
- Prewired with direct-burial cord
- Surface mount supplied
- Recessed mount back box with three 1/2" NPT inlets (ideal for concrete, brick, and masonry installations)
- Silicone-filled wire nut CX-854 available; accessories CX-734 and CX-833B-GM available
- Faceplate 5-1/8" W x 3-1/8" H; approx 2-1/8" depth; 3/8" lip; accepts 12V SCB lamps up to 27W
