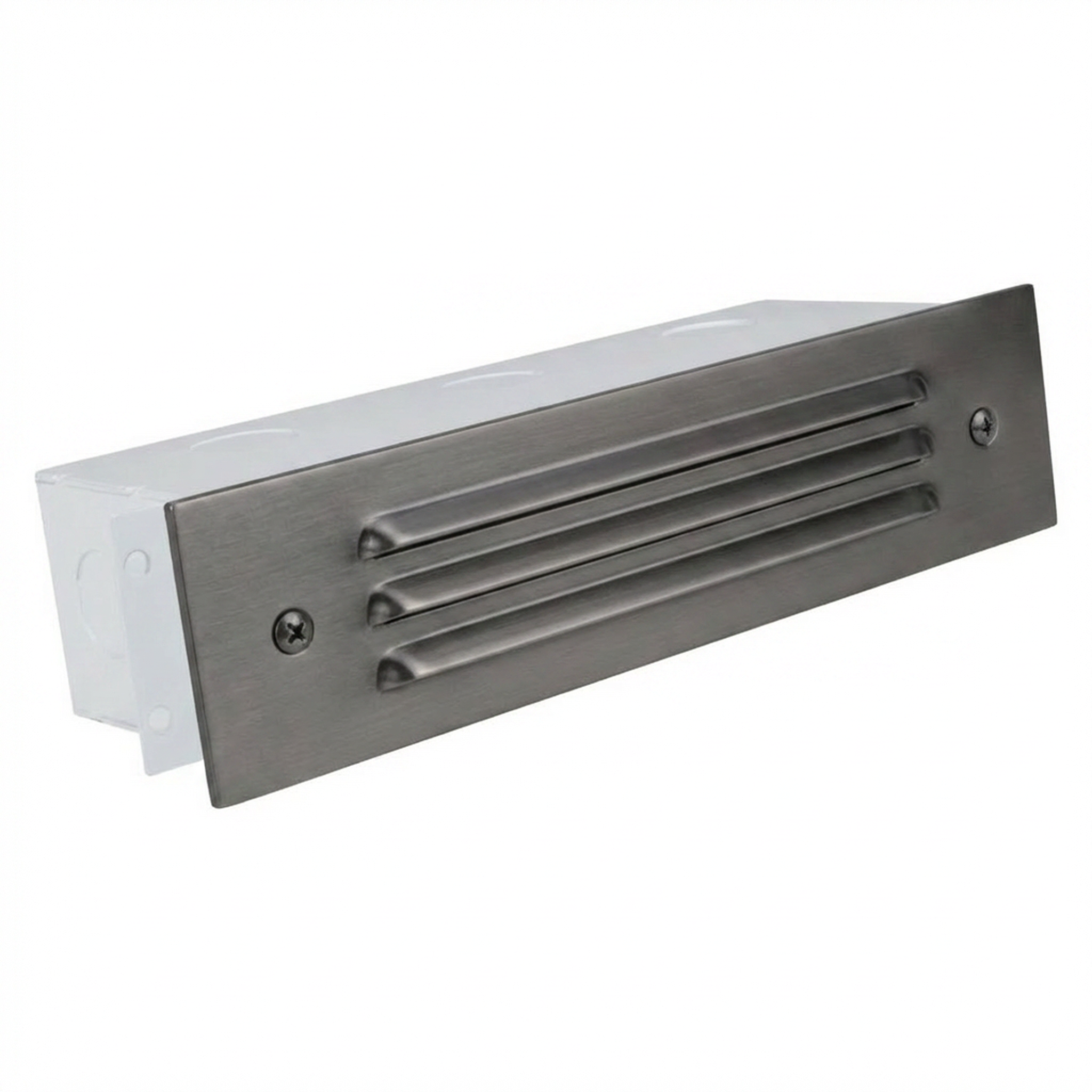

Brass 3-Louver Brick Step Light, Recessed, 9 Inch, Gun Metal, 210 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Gun Metal brass 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Gun Metal 3-louver recessed brick/step light designed for masonry installations
- Faceplate size: approx 9" W x 2-1/4" H
- Back box size: 8" W x 3" D; aperture height approx 2"
- Heavy-duty galvanized steel recessed back box with self-leveling adjustable bars
- High-impact white polycarbonate lens
- Prewired with 12" direct-burial cord; remote 12V transformer required
- LED operating range: 8–21V
- Two single-contact bayonet (SCB) sockets on aluminum reflector; 27W max per socket
- Includes two 2W warm-white LED lamps: 200 lumens at 2700K and 210 lumens at 3000K total, CRI 80, dimmable, 25,000-hour lifetime; output applies to each included lamp, and total fixture output is not stated
- Efficacy: 100 Lumens/W
- Warranty: Limited lifetime fixture warranty
This Gun Metal brass 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Gun Metal 3-louver recessed brick/step light designed for masonry installations
- Faceplate size: approx 9" W x 2-1/4" H
- Back box size: 8" W x 3" D; aperture height approx 2"
- Heavy-duty galvanized steel recessed back box with self-leveling adjustable bars
- High-impact white polycarbonate lens
- Prewired with 12" direct-burial cord; remote 12V transformer required
- LED operating range: 8–21V
- Two single-contact bayonet (SCB) sockets on aluminum reflector; 27W max per socket
- Includes two 2W warm-white LED lamps: 200 lumens at 2700K and 210 lumens at 3000K total, CRI 80, dimmable, 25,000-hour lifetime; output applies to each included lamp, and total fixture output is not stated
- Efficacy: 100 Lumens/W
- Warranty: Limited lifetime fixture warranty
Overview
This Gun Metal brass 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Gun Metal 3-louver recessed brick/step light designed for masonry installations
- Faceplate size: approx 9" W x 2-1/4" H
- Back box size: 8" W x 3" D; aperture height approx 2"
- Heavy-duty galvanized steel recessed back box with self-leveling adjustable bars
- High-impact white polycarbonate lens
- Prewired with 12" direct-burial cord; remote 12V transformer required
- LED operating range: 8–21V
- Two single-contact bayonet (SCB) sockets on aluminum reflector; 27W max per socket
- Includes two 2W warm-white LED lamps: 200 lumens at 2700K and 210 lumens at 3000K total, CRI 80, dimmable, 25,000-hour lifetime; output applies to each included lamp, and total fixture output is not stated
- Efficacy: 100 Lumens/W
- Warranty: Limited lifetime fixture warranty
Specifications
| Brass 3-Louver Brick Step Light, Recessed, 9 Inch, Gun Metal, 210 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 200 - 210LM |
| Efficacy | 100LM/W |
| Wattage | 2W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| LED Heads | 2 |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate Approx. 9" W x 2-1/4" H; back box 8" W x 3" D; aperture H Approx. 2" |
| Finish | Gun Metal |
| Material | Brass faceplate; galvanized steel back box |
| Lifetime | 25,000 Hours |
| Warranty | Five (5) years limited warranty on LED module, Limited lifetime warranty on fixture housing |
