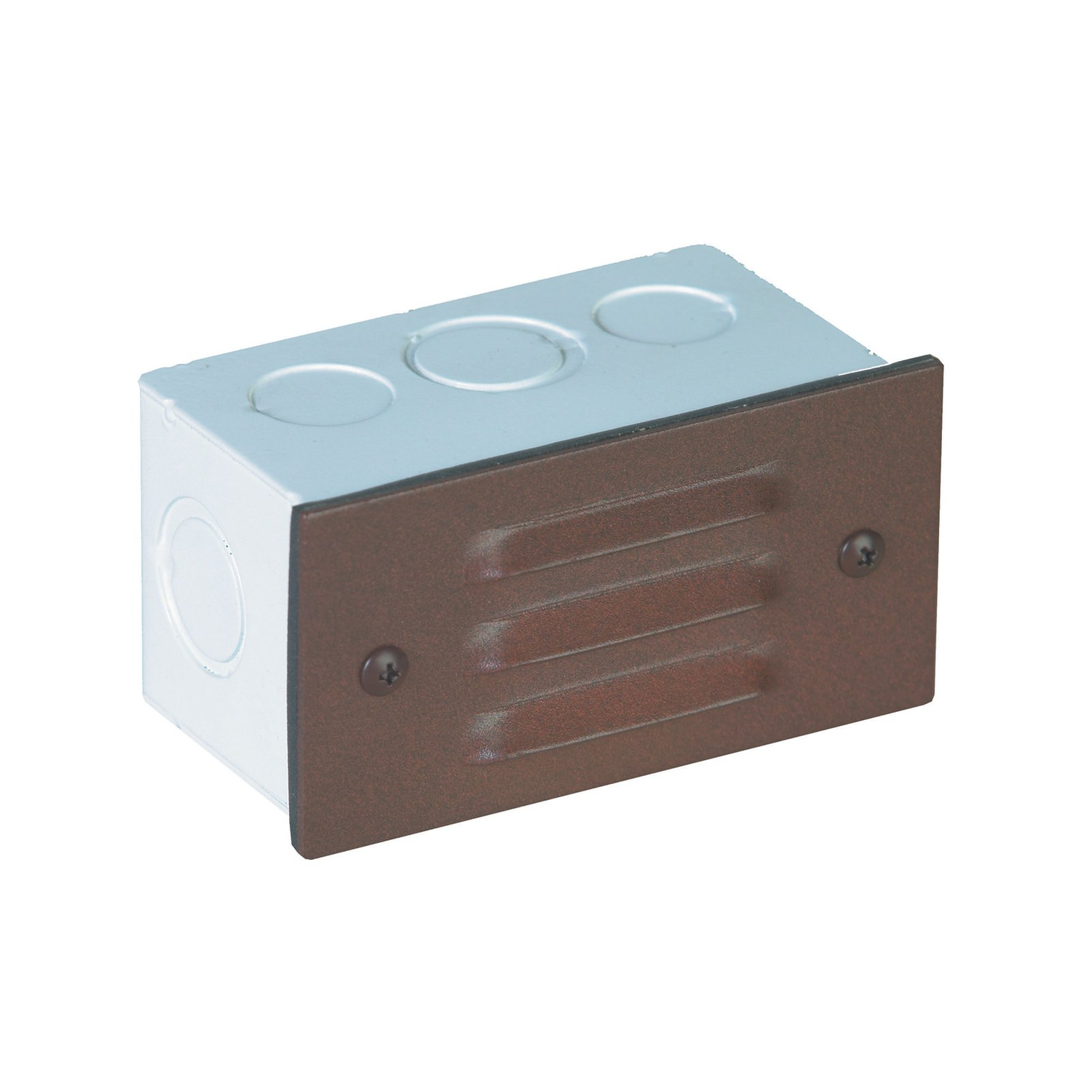

3-Louver Step Light, Recessed, 4 Inch, Rust, 210 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This stamped aluminum faceplate and steel mount box 3-louver step light is designed for recessed installation and measures 4 inches across the customer-facing face. Output is 200 lumens at 2700K and 210 lumens at 3000K. A remote 12V transformer is required.
Features
-
- 3-louver boxed step light; finish: Rust (RT)
- Optional finishes: BK, BZ, WH; optional stamped metal finishes: AB, GM, OC, SI, RC
- Stamped aluminum faceplate with polyester UV coating for long-term outdoor durability
- White powder coated steel recessed-mount back box with three 1/2 Inch NPT inlets for concrete, brick, and masonry installations
- Faceplate size: 4-3/8 Inch W x 2-1/4 Inch H
- Socket: C bayonet socket
- Electrical: 12V operation; maximum lamp wattage 18W; remote 12V transformer required
- Included bayonet LED lamp: 2W, 200 lumens at 2700K and 210 lumens at 3000K, approx 25,000-hour rated life; replaces ~20W halogen
- Prewired with 12 Inch direct-burial cord; silicone gasket and high-impact white polycarbonate lens for watertight outdoor use
This stamped aluminum faceplate and steel mount box 3-louver step light is designed for recessed installation and measures 4 inches across the customer-facing face. Output is 200 lumens at 2700K and 210 lumens at 3000K. A remote 12V transformer is required.
Features
-
- 3-louver boxed step light; finish: Rust (RT)
- Optional finishes: BK, BZ, WH; optional stamped metal finishes: AB, GM, OC, SI, RC
- Stamped aluminum faceplate with polyester UV coating for long-term outdoor durability
- White powder coated steel recessed-mount back box with three 1/2 Inch NPT inlets for concrete, brick, and masonry installations
- Faceplate size: 4-3/8 Inch W x 2-1/4 Inch H
- Socket: C bayonet socket
- Electrical: 12V operation; maximum lamp wattage 18W; remote 12V transformer required
- Included bayonet LED lamp: 2W, 200 lumens at 2700K and 210 lumens at 3000K, approx 25,000-hour rated life; replaces ~20W halogen
- Prewired with 12 Inch direct-burial cord; silicone gasket and high-impact white polycarbonate lens for watertight outdoor use
Overview
This stamped aluminum faceplate and steel mount box 3-louver step light is designed for recessed installation and measures 4 inches across the customer-facing face. Output is 200 lumens at 2700K and 210 lumens at 3000K. A remote 12V transformer is required.
Features
-
- 3-louver boxed step light; finish: Rust (RT)
- Optional finishes: BK, BZ, WH; optional stamped metal finishes: AB, GM, OC, SI, RC
- Stamped aluminum faceplate with polyester UV coating for long-term outdoor durability
- White powder coated steel recessed-mount back box with three 1/2 Inch NPT inlets for concrete, brick, and masonry installations
- Faceplate size: 4-3/8 Inch W x 2-1/4 Inch H
- Socket: C bayonet socket
- Electrical: 12V operation; maximum lamp wattage 18W; remote 12V transformer required
- Included bayonet LED lamp: 2W, 200 lumens at 2700K and 210 lumens at 3000K, approx 25,000-hour rated life; replaces ~20W halogen
- Prewired with 12 Inch direct-burial cord; silicone gasket and high-impact white polycarbonate lens for watertight outdoor use
Specifications
| 3-Louver Step Light, Recessed, 4 Inch, Rust, 210 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 200 - 210LM |
| Efficacy | 100LM/W |
| Wattage | 2W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 4-3/8" W x 2-1/4" H |
| Finish | Rust |
| Material | Stamped aluminum faceplate with polyester UV coating, white powder coated steel housing |
| Lifetime | 25,000 Hours |
| Warranty | Limited warranty on aluminum fixture housing per manufacturer terms; Five (5) years limited warranty on LED module |
