3-Louver Step Light, Recessed, 4 Inch, White, 210 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

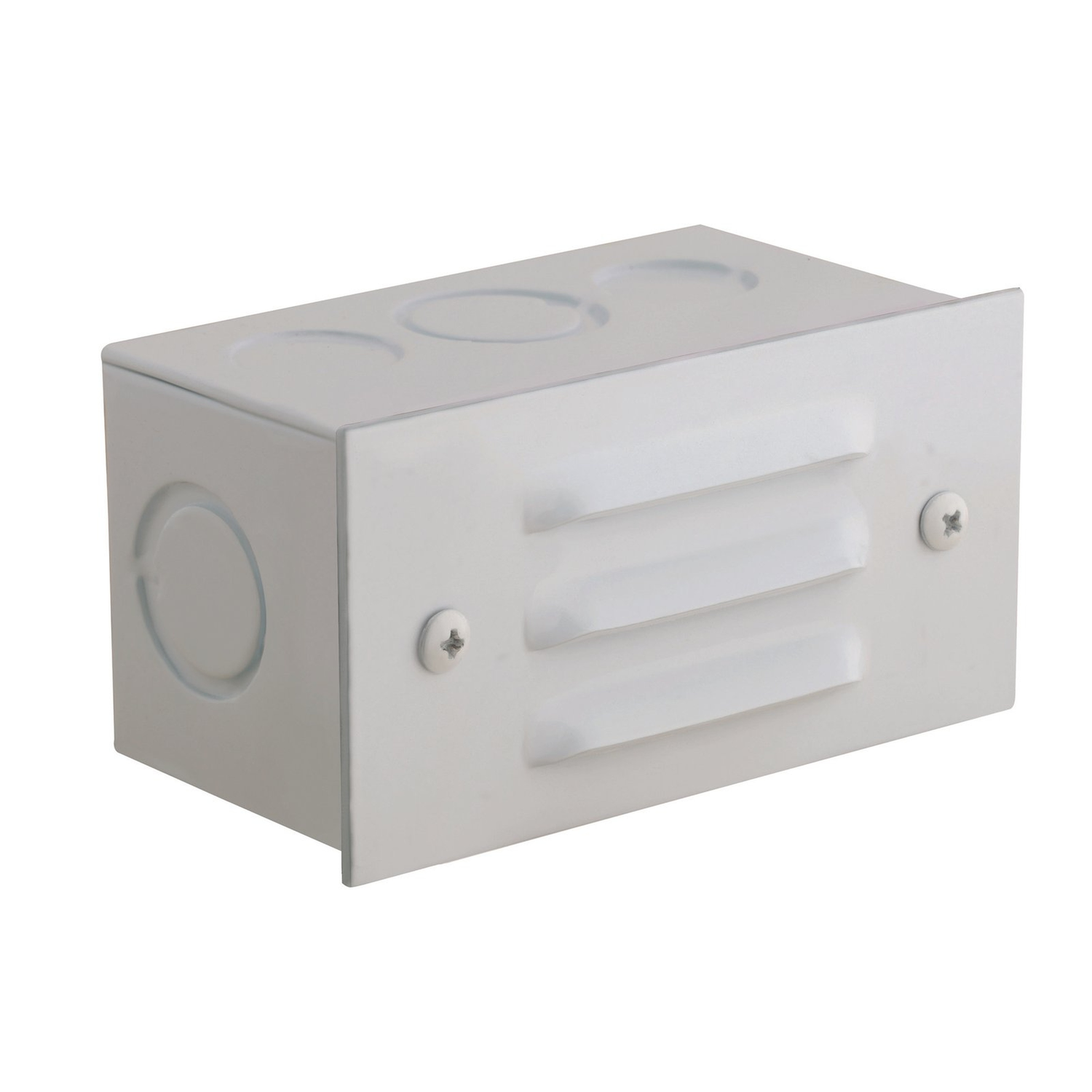

This stamped aluminum faceplate and steel mount box 3-louver step light is designed for recessed installation and measures 4 inches across the customer-facing face. Output is 200 lumens at 2700K and 210 lumens at 3000K. A remote 12V transformer is required.
Features
-
- 3-louver boxed step light for outdoor use
- Architectural-grade stamped aluminum faceplate with polyester UV coating; white powder-coated steel
- Faceplate size: 4-3/8" W x 2-1/4" H
- Recessed mount box with top-grade fixed single-contact bayonet (SCB) socket
- High-impact white polycarbonate lens sealed to faceplate with silicone gasket for watertight protection
- Prewired with 12" direct-burial cord; recessed mount back box includes three 1/2" NPT inlets
- Suitable for concrete, brick, and masonry installations
- Requires remote 12V transformer for operation
- Includes bayonet LED lamp: 2W, 200 lumens at 2700K and 210 lumens at 3000K, warm white, CRI 80, 25,000-hour rated life
- Accessories include CX-731 steel mount box, CX-873 aluminum 3-louver faceplate with white acrylic lens, CX-854 silicone-filled wire nut
This stamped aluminum faceplate and steel mount box 3-louver step light is designed for recessed installation and measures 4 inches across the customer-facing face. Output is 200 lumens at 2700K and 210 lumens at 3000K. A remote 12V transformer is required.
Features
-
- 3-louver boxed step light for outdoor use
- Architectural-grade stamped aluminum faceplate with polyester UV coating; white powder-coated steel
- Faceplate size: 4-3/8" W x 2-1/4" H
- Recessed mount box with top-grade fixed single-contact bayonet (SCB) socket
- High-impact white polycarbonate lens sealed to faceplate with silicone gasket for watertight protection
- Prewired with 12" direct-burial cord; recessed mount back box includes three 1/2" NPT inlets
- Suitable for concrete, brick, and masonry installations
- Requires remote 12V transformer for operation
- Includes bayonet LED lamp: 2W, 200 lumens at 2700K and 210 lumens at 3000K, warm white, CRI 80, 25,000-hour rated life
- Accessories include CX-731 steel mount box, CX-873 aluminum 3-louver faceplate with white acrylic lens, CX-854 silicone-filled wire nut
Overview
This stamped aluminum faceplate and steel mount box 3-louver step light is designed for recessed installation and measures 4 inches across the customer-facing face. Output is 200 lumens at 2700K and 210 lumens at 3000K. A remote 12V transformer is required.
Features
-
- 3-louver boxed step light for outdoor use
- Architectural-grade stamped aluminum faceplate with polyester UV coating; white powder-coated steel
- Faceplate size: 4-3/8" W x 2-1/4" H
- Recessed mount box with top-grade fixed single-contact bayonet (SCB) socket
- High-impact white polycarbonate lens sealed to faceplate with silicone gasket for watertight protection
- Prewired with 12" direct-burial cord; recessed mount back box includes three 1/2" NPT inlets
- Suitable for concrete, brick, and masonry installations
- Requires remote 12V transformer for operation
- Includes bayonet LED lamp: 2W, 200 lumens at 2700K and 210 lumens at 3000K, warm white, CRI 80, 25,000-hour rated life
- Accessories include CX-731 steel mount box, CX-873 aluminum 3-louver faceplate with white acrylic lens, CX-854 silicone-filled wire nut
Specifications
| 3-Louver Step Light, Recessed, 4 Inch, White, 210 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 200 - 210LM |
| Efficacy | 100LM/W |
| Wattage | 2W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 4-3/8" W x 2-1/4" H |
| Finish | White |
| Material | Stamped aluminum faceplate, polyester UV coated |
| Lifetime | 25,000 Hours |
| Warranty | Five (5) year warranty on fixture housing and faceplate for BK/BZ/RT/WH finishes; five (5) year manufacturer's warranty on the LED lamp |
