Brass Louvered Glass Lens Round Step Light, In-Ground, 5 Inch, Antique Bronze, 60° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

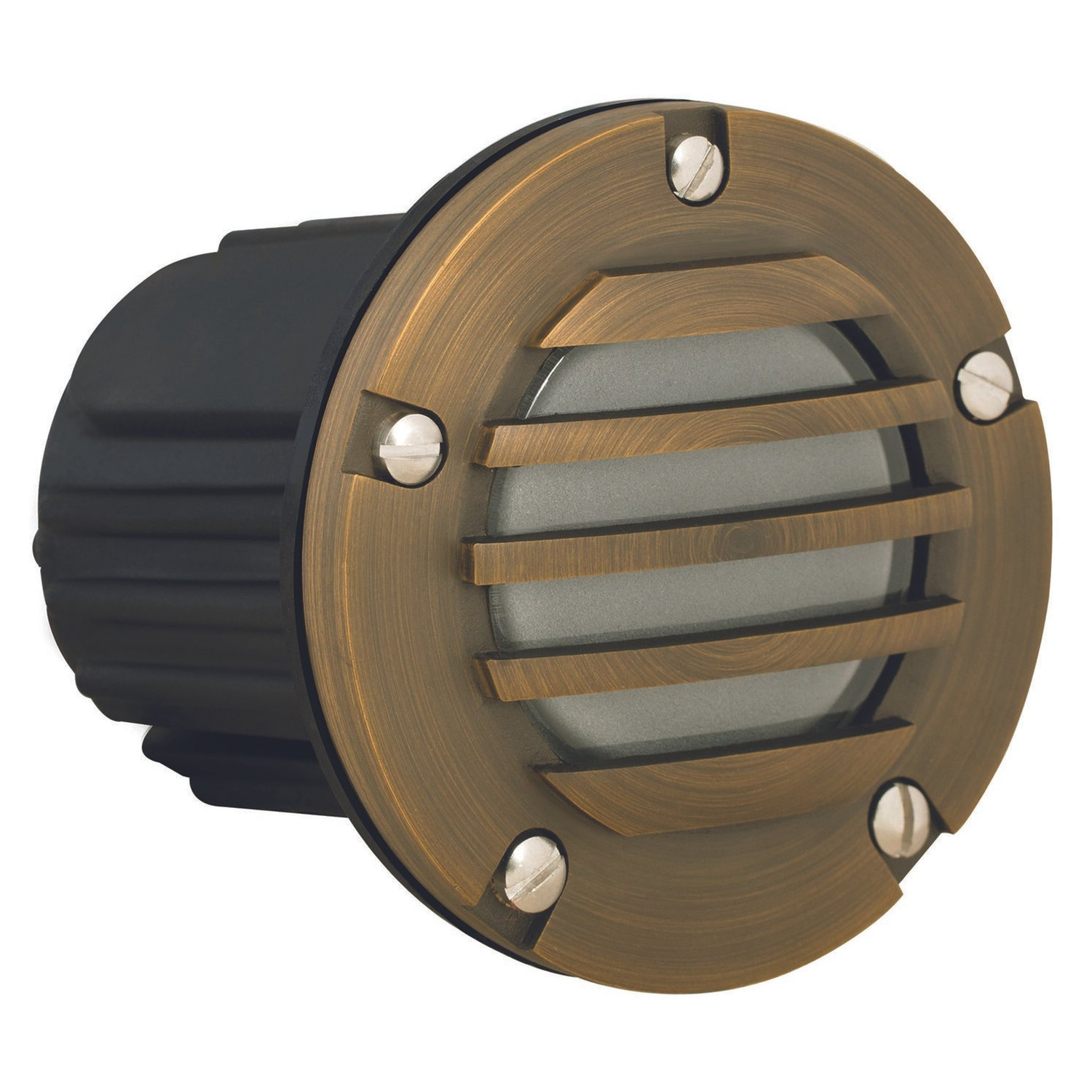

This Antique Bronze brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 60° Wide Beam Angle.
Features
-
- Louvered step/brick light with frosted heat-resistant flat glass lens
- Antique Bronze finish with cast/die-cast brass faceplate and injection-molded composite housing
- Dimensions: 4-7/8 Inch Dia x 4-5/8 Inch L
- 12V system; prewired with 3 ft 18-2 SJT-W direct-burial cord; surface-mount for recessed wall or step use
- Included MR16 COB LED lamp: 3.5W, 270 Lumens, 2700K, 60° wide flood beam; LED operating voltage 9–17V; rated life approx 50,000 hours
- Socket tilt: ±25°
- Silicone O-ring gasket for weather-tight protection
- ETL listed; dimmable
- Concrete pour kit CX-237 recommended for concrete installations
This Antique Bronze brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 60° Wide Beam Angle.
Features
-
- Louvered step/brick light with frosted heat-resistant flat glass lens
- Antique Bronze finish with cast/die-cast brass faceplate and injection-molded composite housing
- Dimensions: 4-7/8 Inch Dia x 4-5/8 Inch L
- 12V system; prewired with 3 ft 18-2 SJT-W direct-burial cord; surface-mount for recessed wall or step use
- Included MR16 COB LED lamp: 3.5W, 270 Lumens, 2700K, 60° wide flood beam; LED operating voltage 9–17V; rated life approx 50,000 hours
- Socket tilt: ±25°
- Silicone O-ring gasket for weather-tight protection
- ETL listed; dimmable
- Concrete pour kit CX-237 recommended for concrete installations
Overview
This Antique Bronze brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 60° Wide Beam Angle.
Features
-
- Louvered step/brick light with frosted heat-resistant flat glass lens
- Antique Bronze finish with cast/die-cast brass faceplate and injection-molded composite housing
- Dimensions: 4-7/8 Inch Dia x 4-5/8 Inch L
- 12V system; prewired with 3 ft 18-2 SJT-W direct-burial cord; surface-mount for recessed wall or step use
- Included MR16 COB LED lamp: 3.5W, 270 Lumens, 2700K, 60° wide flood beam; LED operating voltage 9–17V; rated life approx 50,000 hours
- Socket tilt: ±25°
- Silicone O-ring gasket for weather-tight protection
- ETL listed; dimmable
- Concrete pour kit CX-237 recommended for concrete installations
Specifications
| Brass Louvered Glass Lens Round Step Light, In-Ground, 5 Inch, Antique Bronze, 60° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 60° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Antique Bronze |
| Material | Cast/Die-cast brass faceplate; injection-molded composite housing |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime on fixture faceplate; 10 years on housing; five (5) year manufacturer's warranty on the LED lamp |
