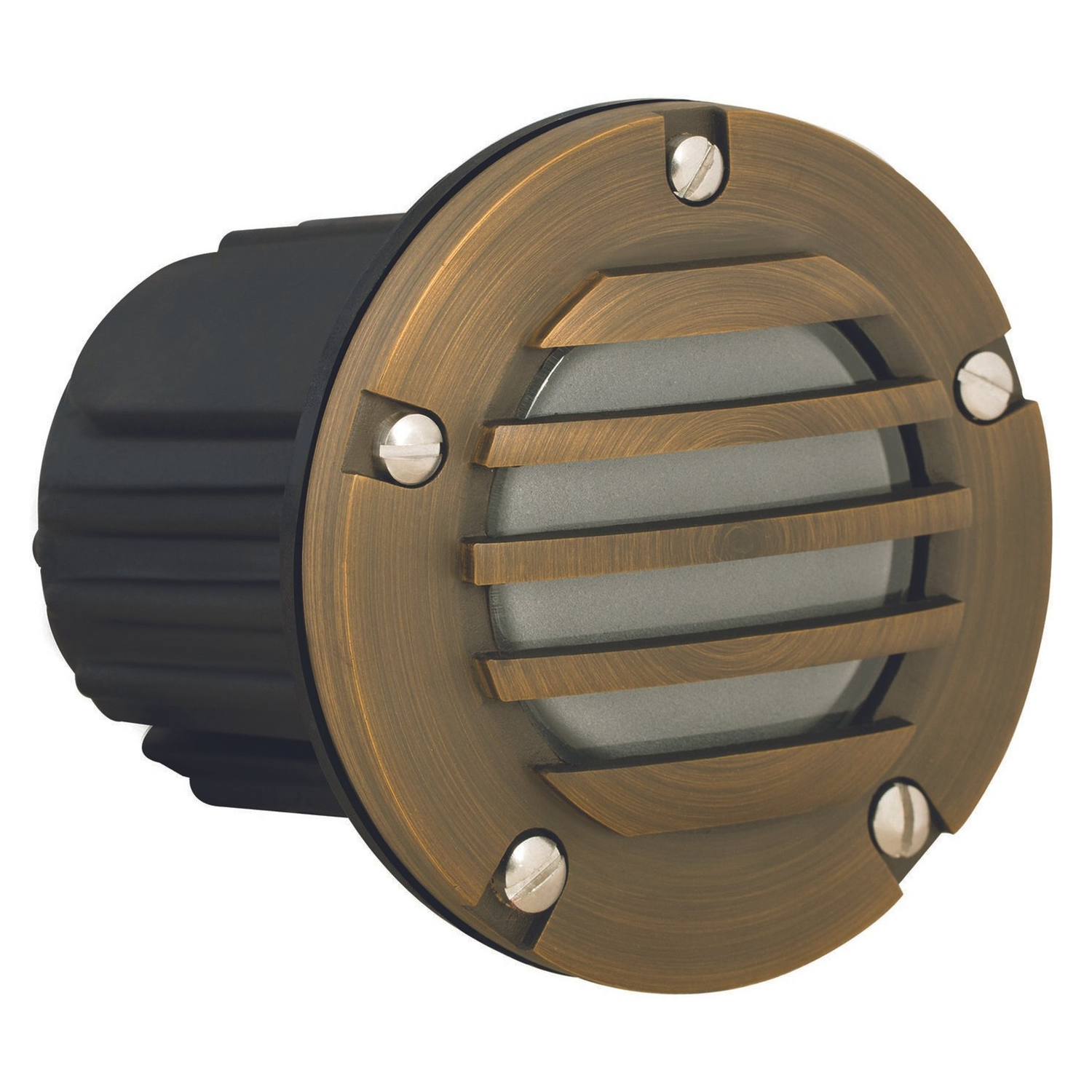

Brass Louvered Glass Lens Round Step Light, In-Ground, 5 Inch, Antique Bronze, 15° Narrow Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Antique Bronze brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- Architectural louvered step/brick fixture with frosted heat-resistant flat glass lens and Antique Bronze finish
- Cast brass faceplate with injection-molded composite housing for high UV stability
- Compact size: 4-7/8" Dia x 4-5/8" L; surface-mount for recessed wall and step use
- Includes MR16 COB LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 15° spot beam, dimmable, 50,000-hour rated life
- Operates at 9–17V for 12V systems; remote 12V transformer required
- Top-grade adjustable ceramic bi-pin socket with ±25° tilt; prewired with 3 ft 18-2 SJT-W direct-burial cord
- Weather-tight silicone O-ring seal
- ETL listed
- Limited lifetime warranty on fixture faceplate; 10-year housing warranty; 5-year manufacturer lamp warranty
This Antique Bronze brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- Architectural louvered step/brick fixture with frosted heat-resistant flat glass lens and Antique Bronze finish
- Cast brass faceplate with injection-molded composite housing for high UV stability
- Compact size: 4-7/8" Dia x 4-5/8" L; surface-mount for recessed wall and step use
- Includes MR16 COB LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 15° spot beam, dimmable, 50,000-hour rated life
- Operates at 9–17V for 12V systems; remote 12V transformer required
- Top-grade adjustable ceramic bi-pin socket with ±25° tilt; prewired with 3 ft 18-2 SJT-W direct-burial cord
- Weather-tight silicone O-ring seal
- ETL listed
- Limited lifetime warranty on fixture faceplate; 10-year housing warranty; 5-year manufacturer lamp warranty
Overview
This Antique Bronze brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- Architectural louvered step/brick fixture with frosted heat-resistant flat glass lens and Antique Bronze finish
- Cast brass faceplate with injection-molded composite housing for high UV stability
- Compact size: 4-7/8" Dia x 4-5/8" L; surface-mount for recessed wall and step use
- Includes MR16 COB LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 15° spot beam, dimmable, 50,000-hour rated life
- Operates at 9–17V for 12V systems; remote 12V transformer required
- Top-grade adjustable ceramic bi-pin socket with ±25° tilt; prewired with 3 ft 18-2 SJT-W direct-burial cord
- Weather-tight silicone O-ring seal
- ETL listed
- Limited lifetime warranty on fixture faceplate; 10-year housing warranty; 5-year manufacturer lamp warranty
Specifications
| Brass Louvered Glass Lens Round Step Light, In-Ground, 5 Inch, Antique Bronze, 15° Narrow Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Antique Bronze |
| Material | Cast/Die-cast brass faceplate |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime on fixture faceplate; 10-year housing warranty; 5-year manufacturer lamp warranty |
